Keyless Receiver / TPMS Control Module

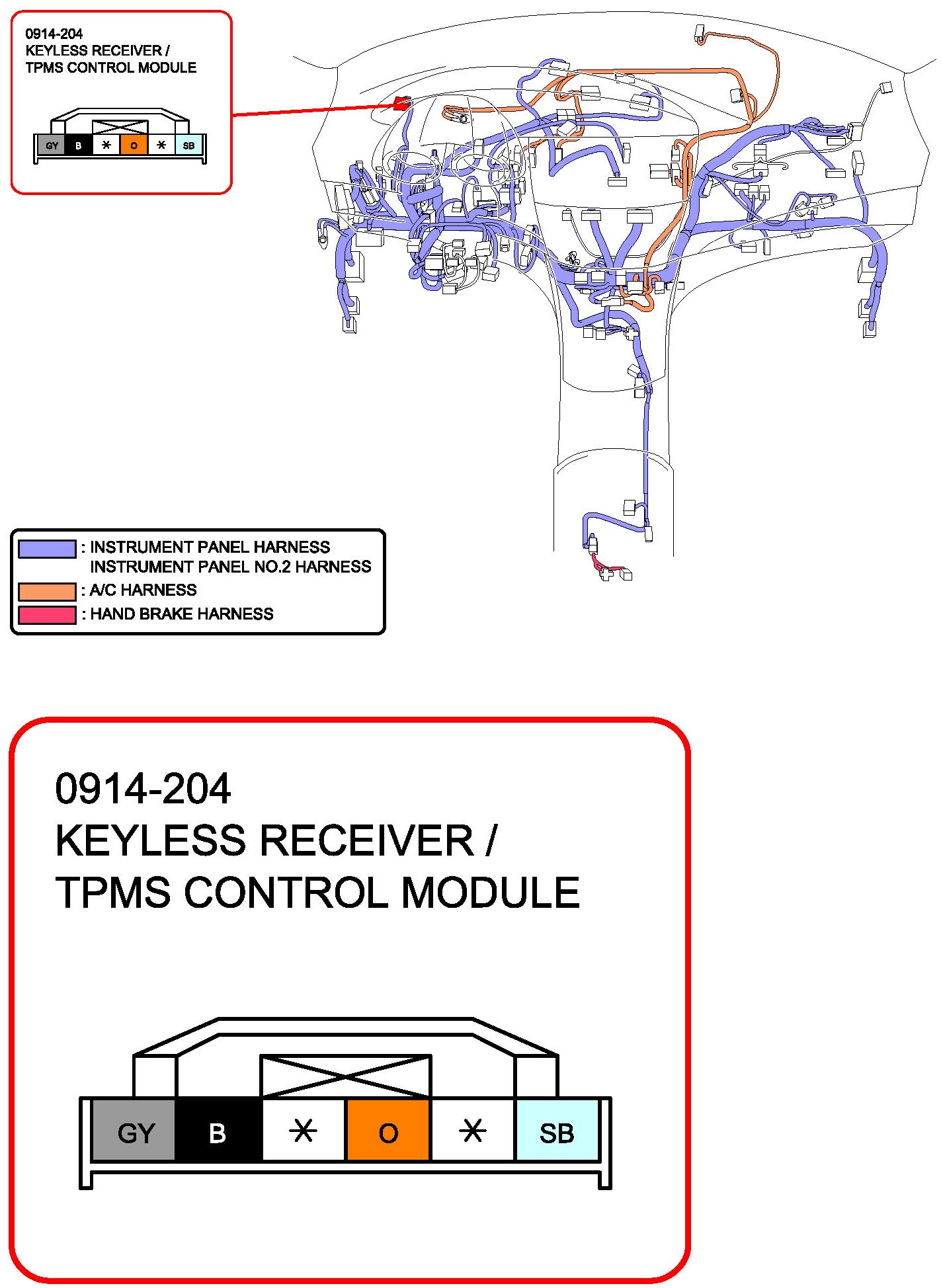

Keyless Receiver / TPMS Control Module:

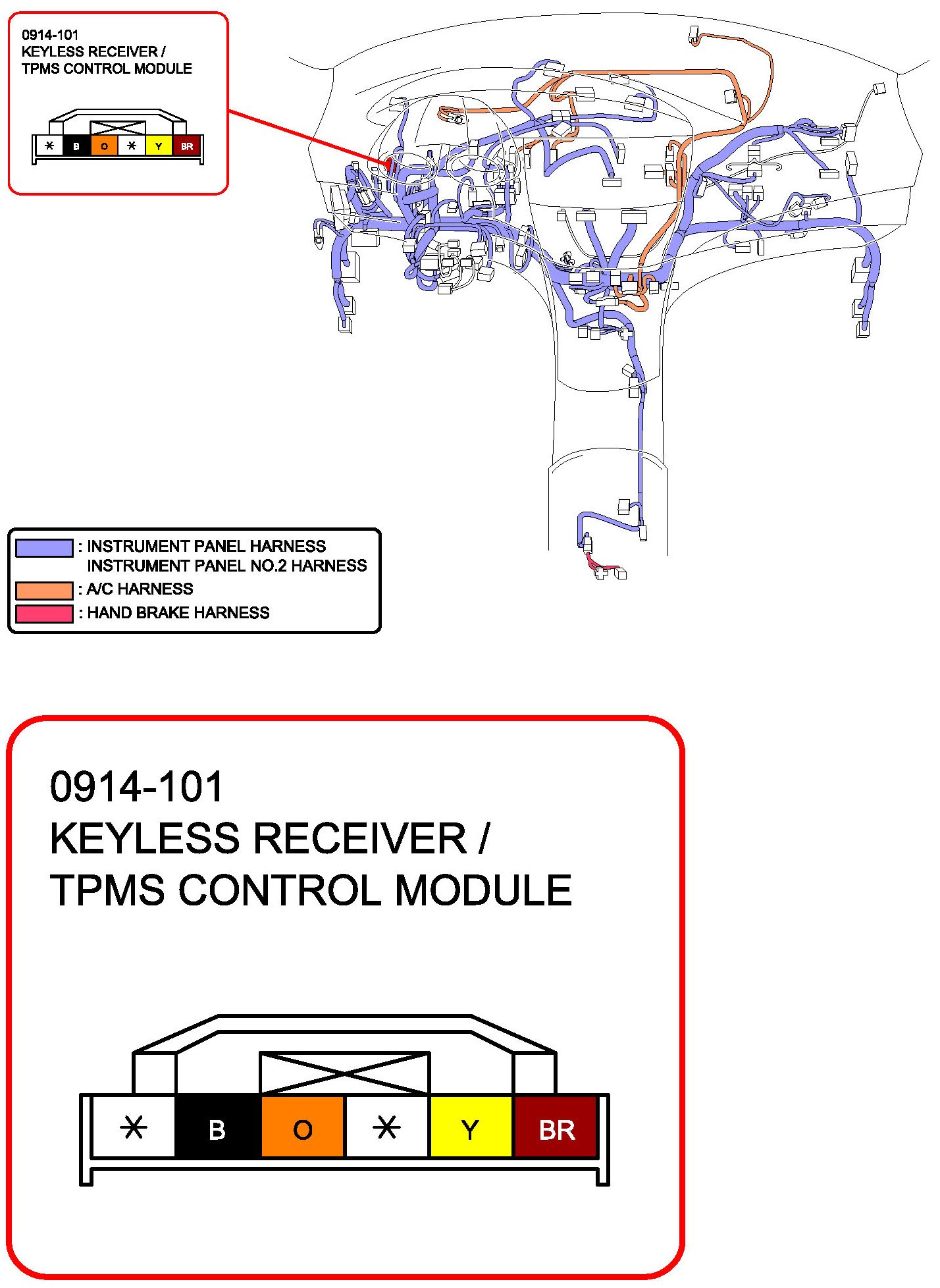

Keyless Receiver / TPMS Control Module:
