PID/Data Monitor Tables

PCM INSPECTION [LF, L5]

PID/DATA monitor table (reference)

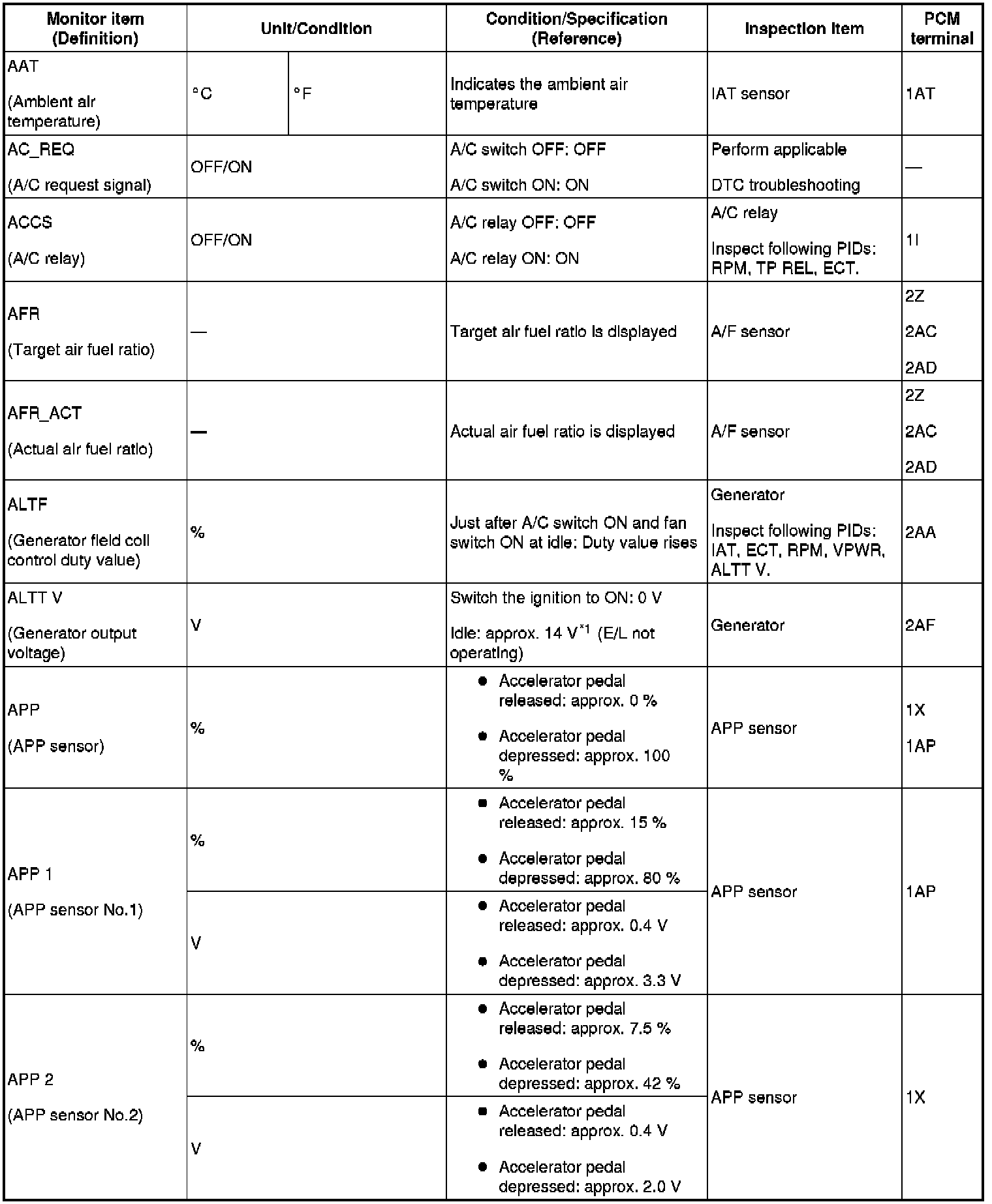

PID/DATA Monitor Table (Reference) (Part 1):

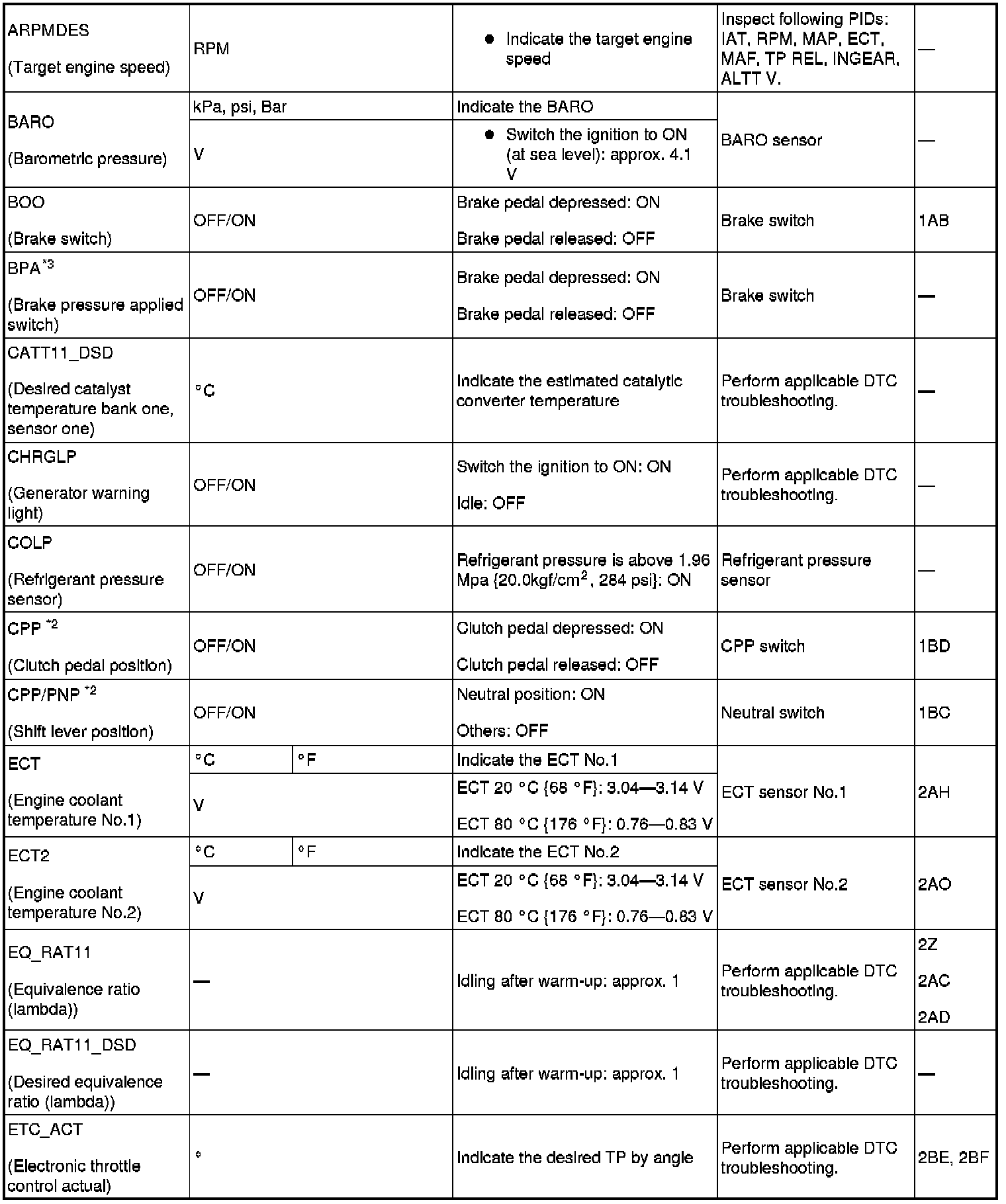

PID/DATA Monitor Table (Reference) (Part 2):

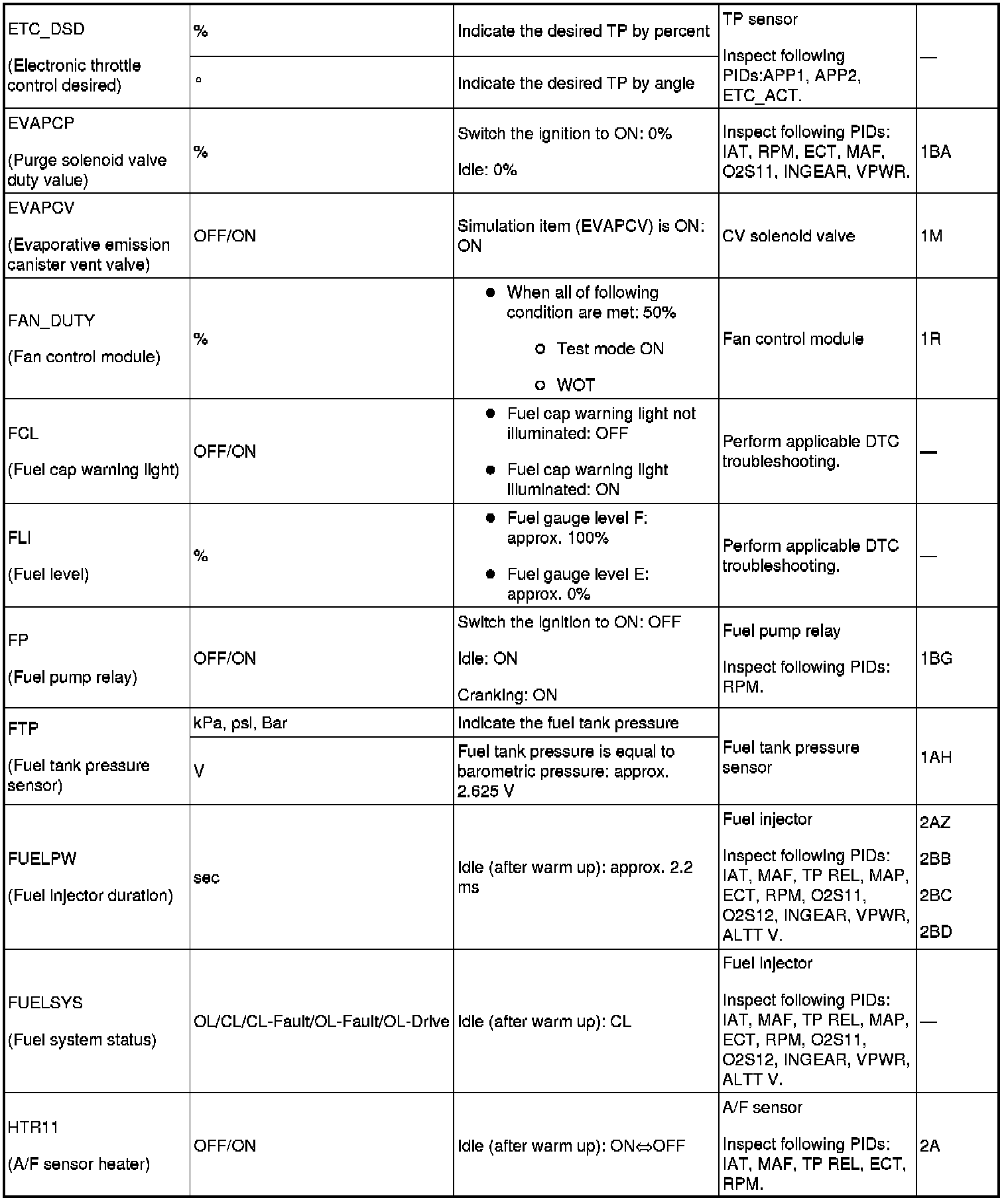

PID/DATA Monitor Table (Reference) (Part 3):

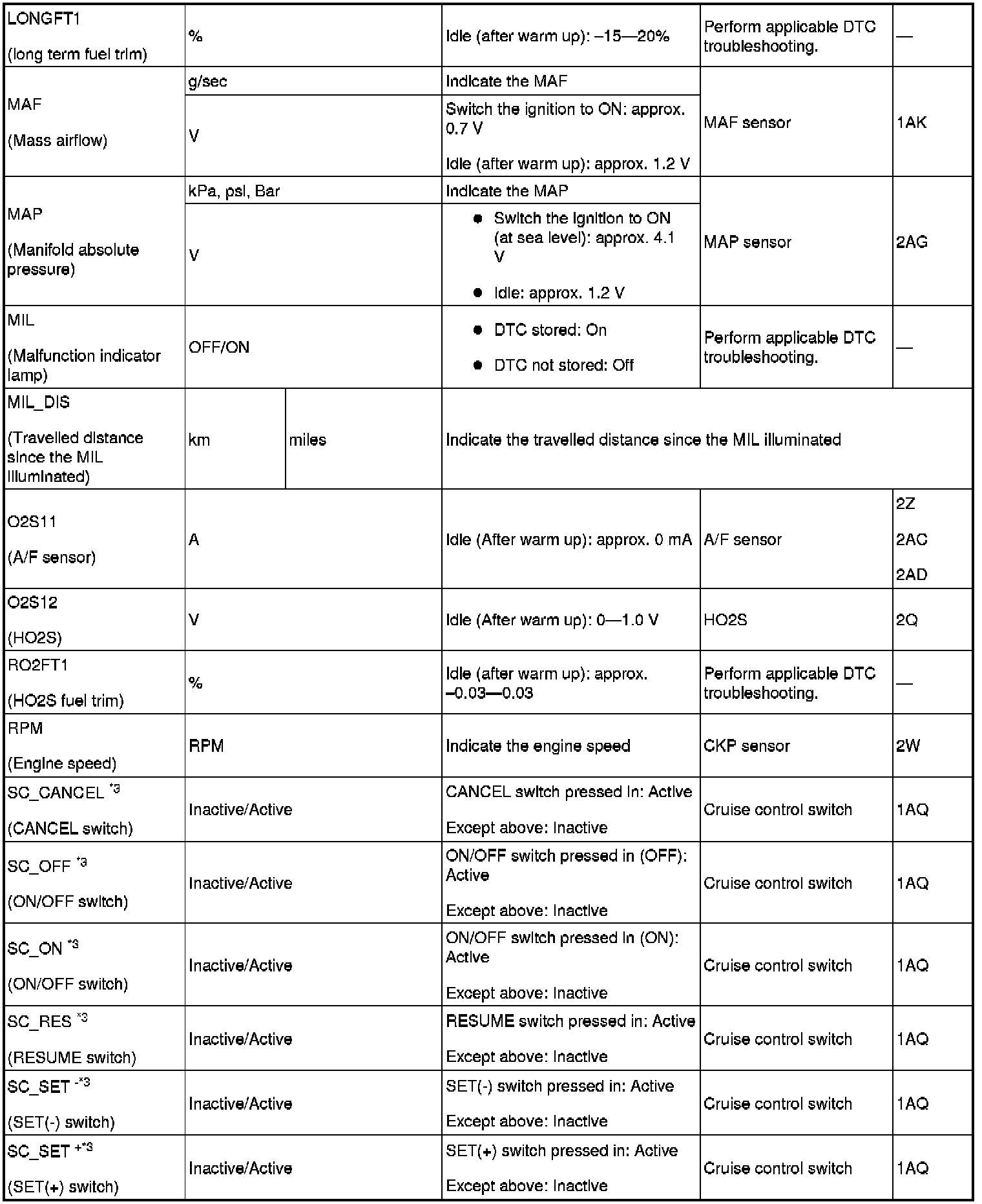

PID/DATA Monitor Table (Reference) (Part 4):

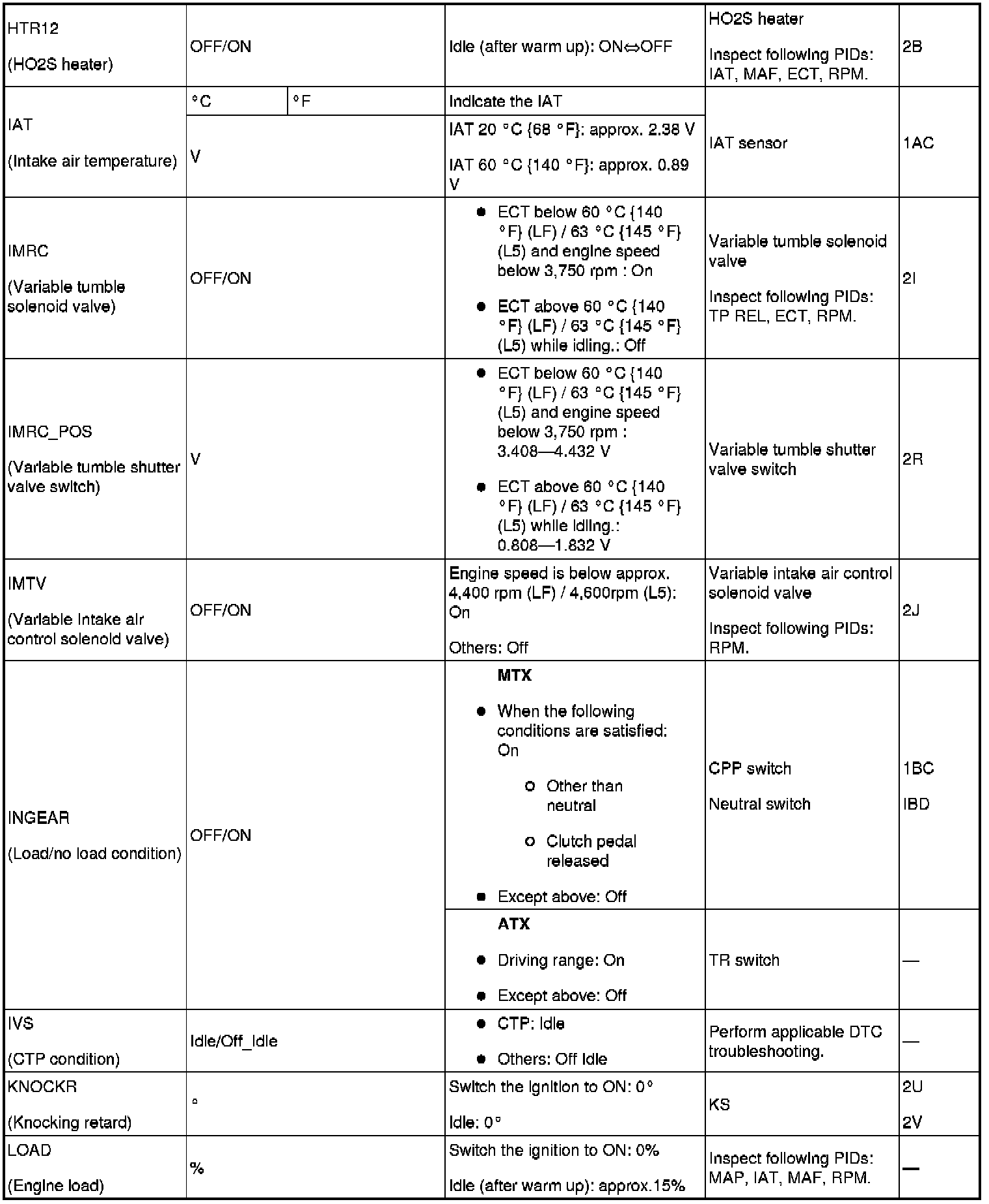

PID/DATA Monitor Table (Reference) (Part 5):

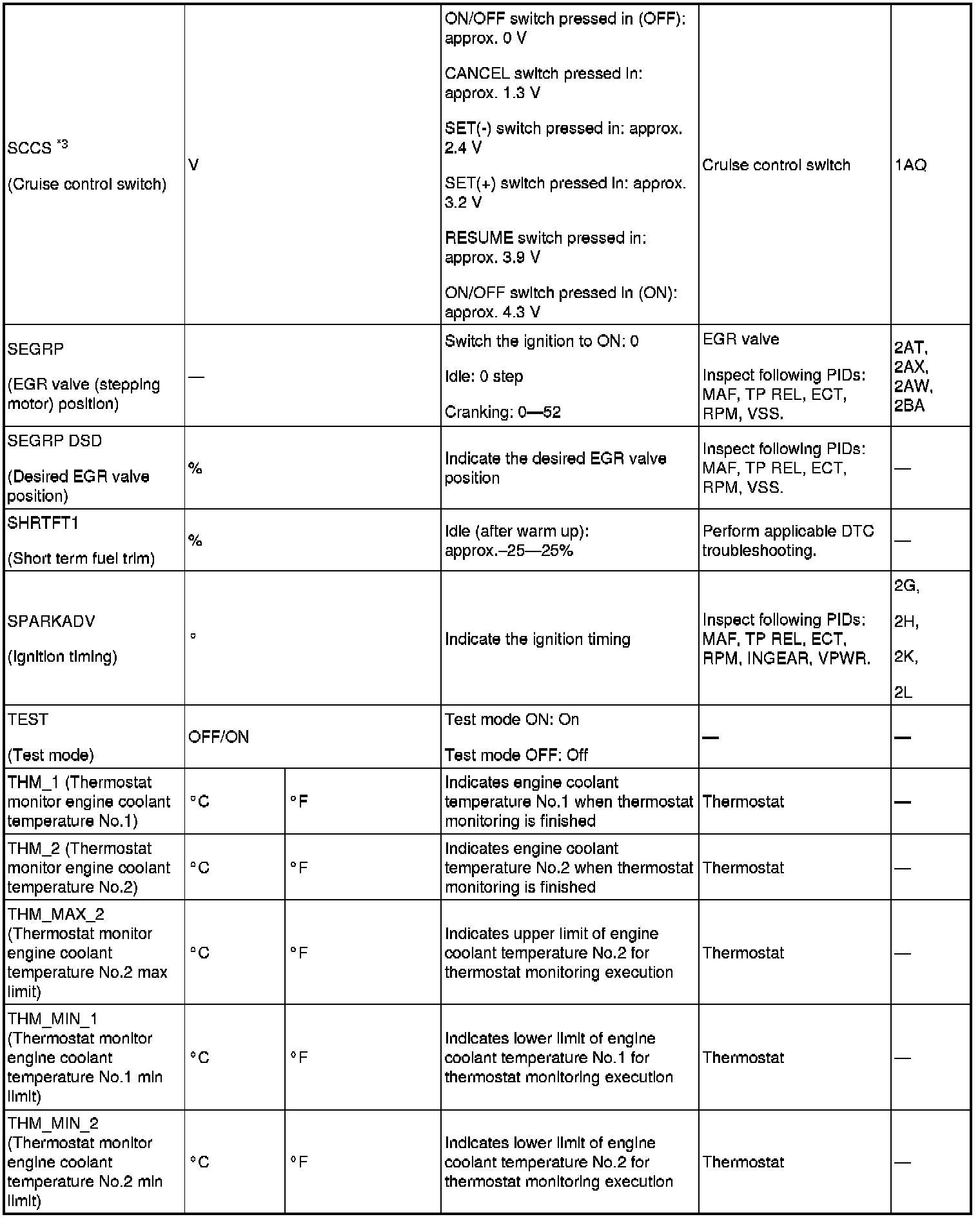

PID/DATA Monitor Table (Reference) (Part 6):

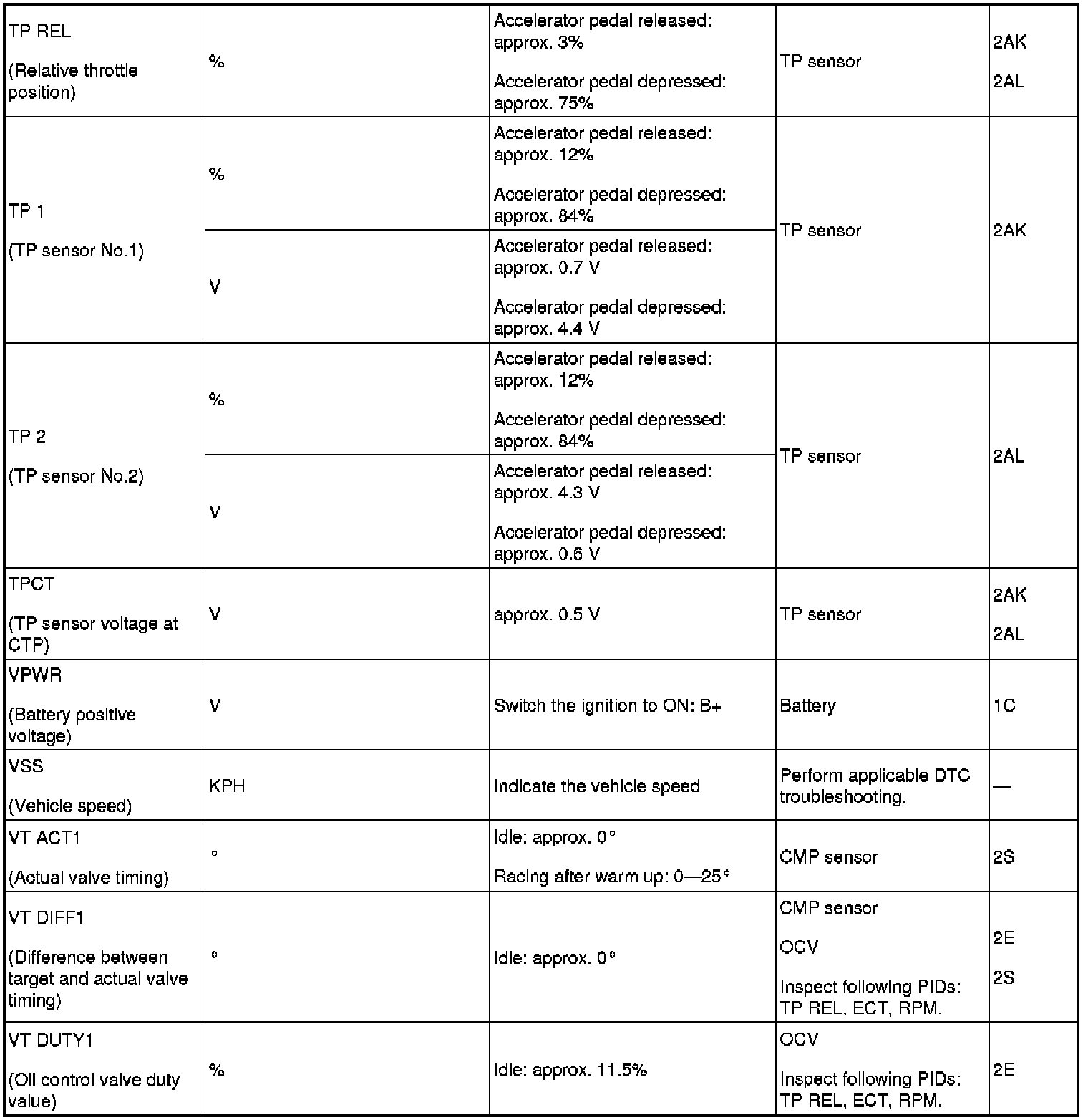

PID/DATA Monitor Table (Reference) (Part 7):

*1
Calculated value; differs from terminal voltage
*2
MTX
*3
With cruise control switch

- Following PIDs are for the ATX models. If inspects for following PIDs, On-Board Diagnostic System PID/Data Monitor Inspection
