Snapshot Data

ON-BOARD DIAGNOSTIC TEST [LF, L5]

Snapshot data
- The snap shot data stores the currently detected DTC data.
- The recording timing for the freeze frame data/snap shot data differs depending on the number of DTC drive cycles.

- For a DTC with a drive cycle number 1, only the malfunction determination data is recorded.
- For a DTC with a drive cycle number 2, both the malfunction determination and undetermined data is recorded.

Snapshot data table

NOTE:
- Refer to PID monitor table for confirm the engine control system operation status while the PCM does not store the DTC. (See Component Tests and General Diagnostics)
- Snapshot data items are not displayed, according to detected DTC.

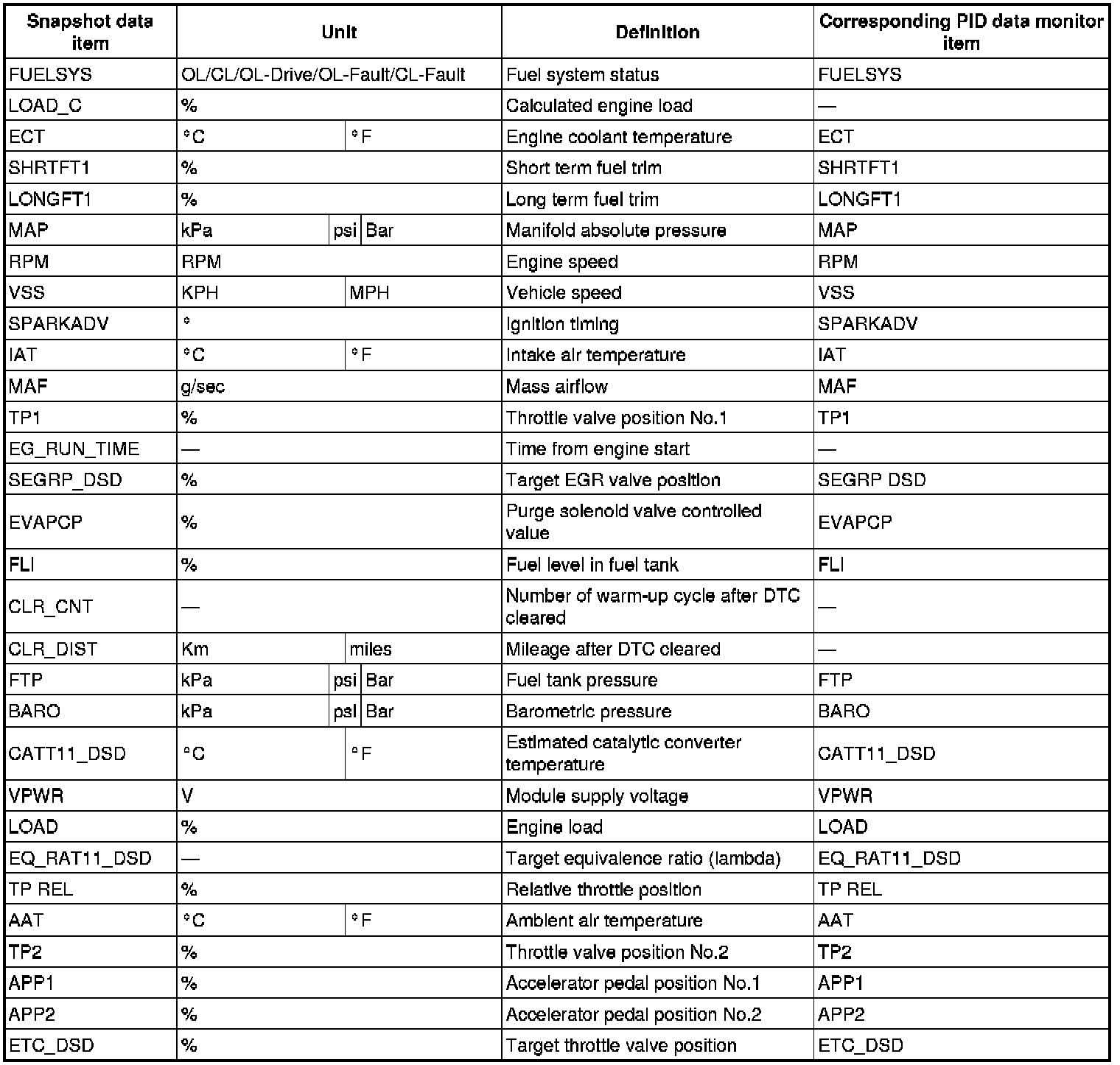

Snapshot Data Table:
