PID/Data Monitor Table
PID/DATA MONITOR TABLE

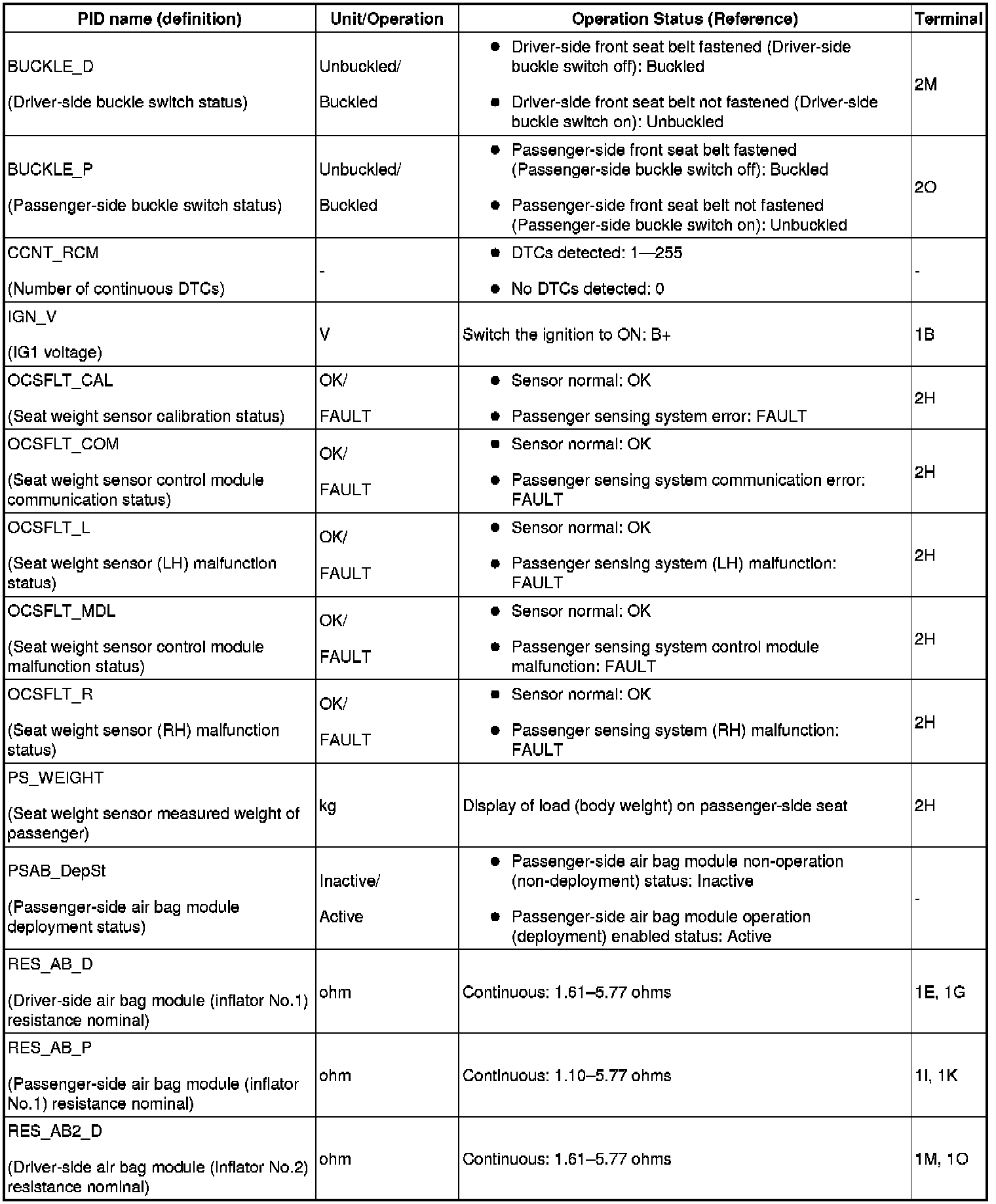

PID/DATA Monitor Table (Part 1):
PID/DATA Monitor Table (Part 2):
