System Specifications

ENGINE TECHNICAL DATA

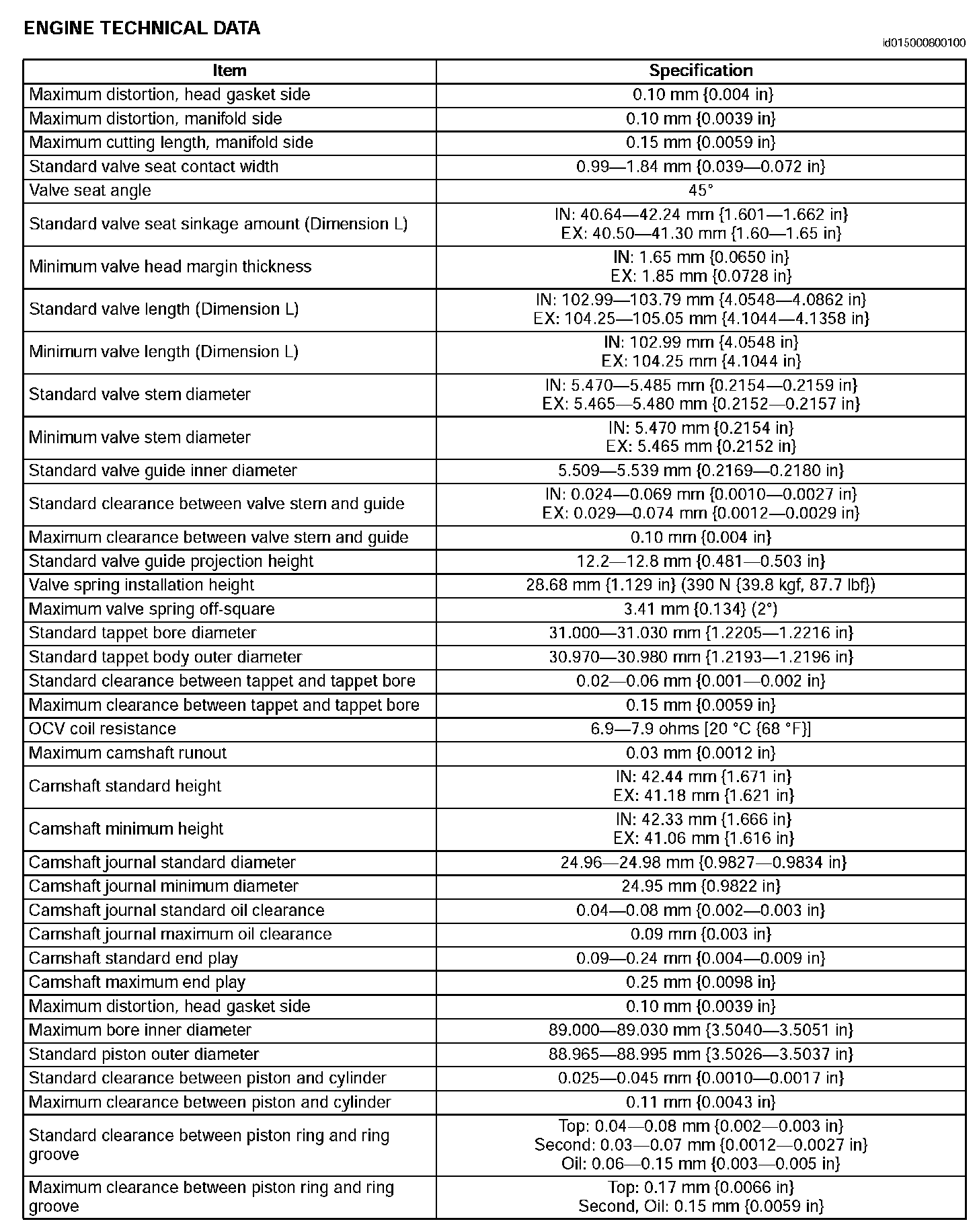

Engine Technical Data (Part 1):

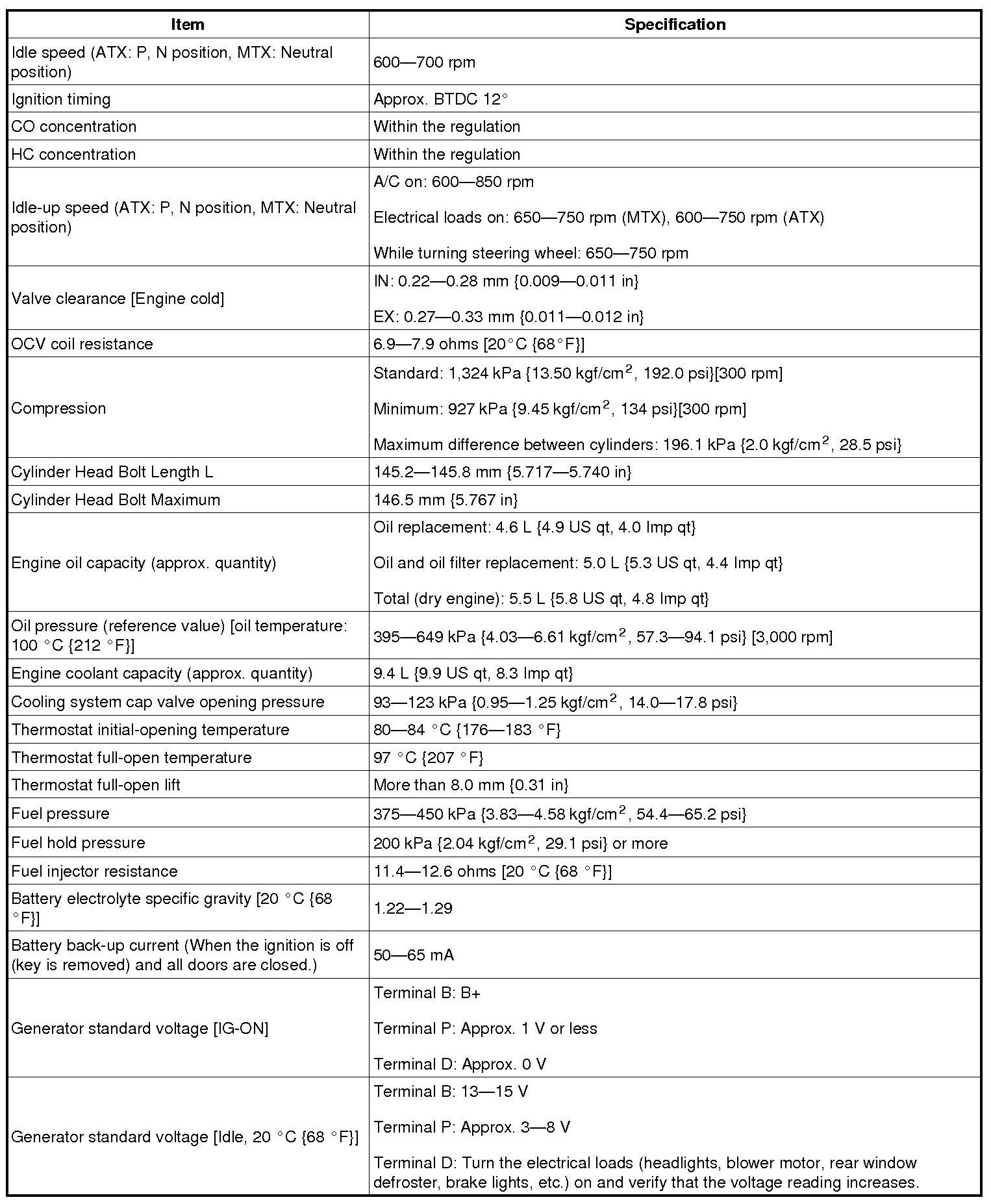

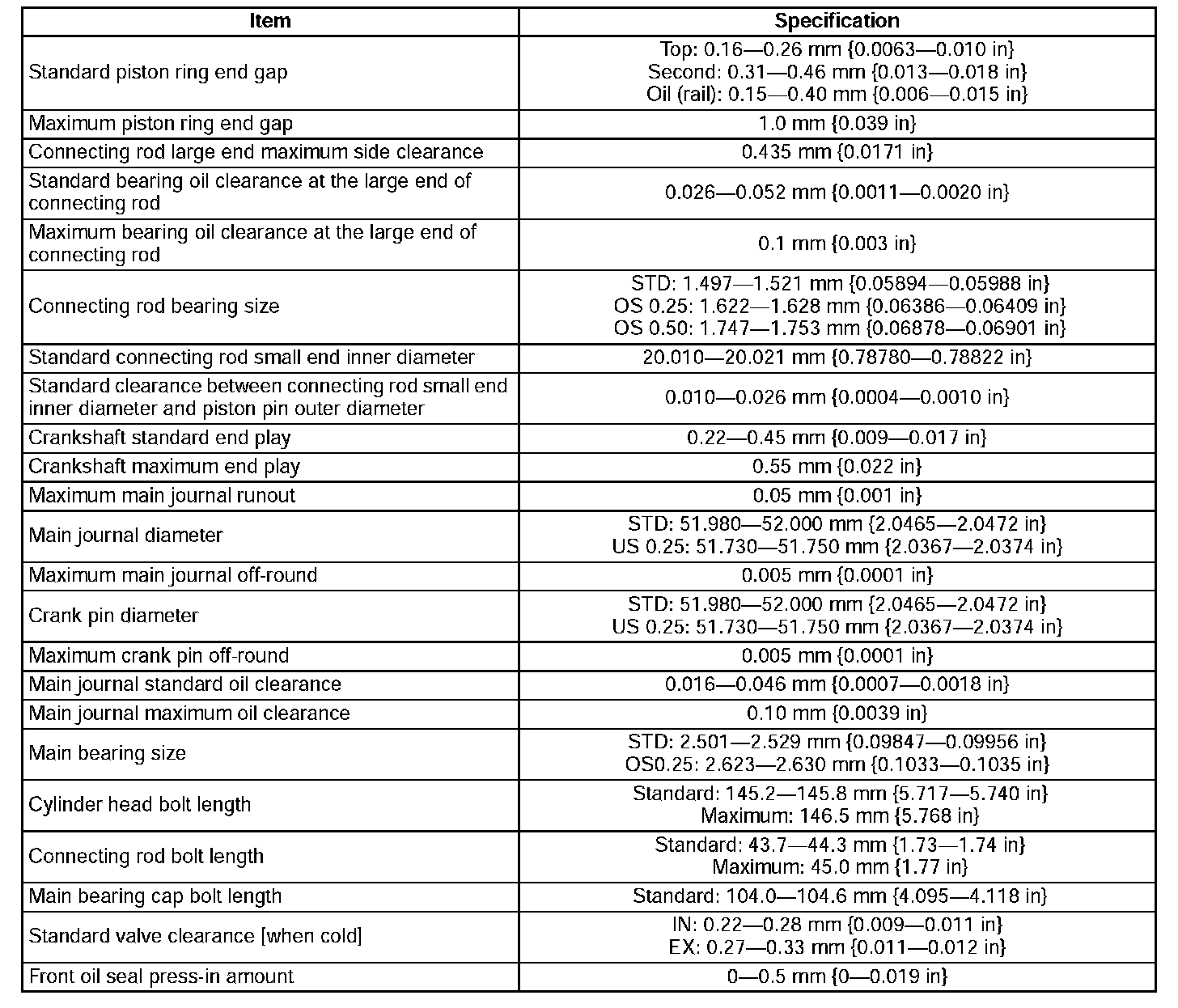

Engine Technical Data (Part 2):

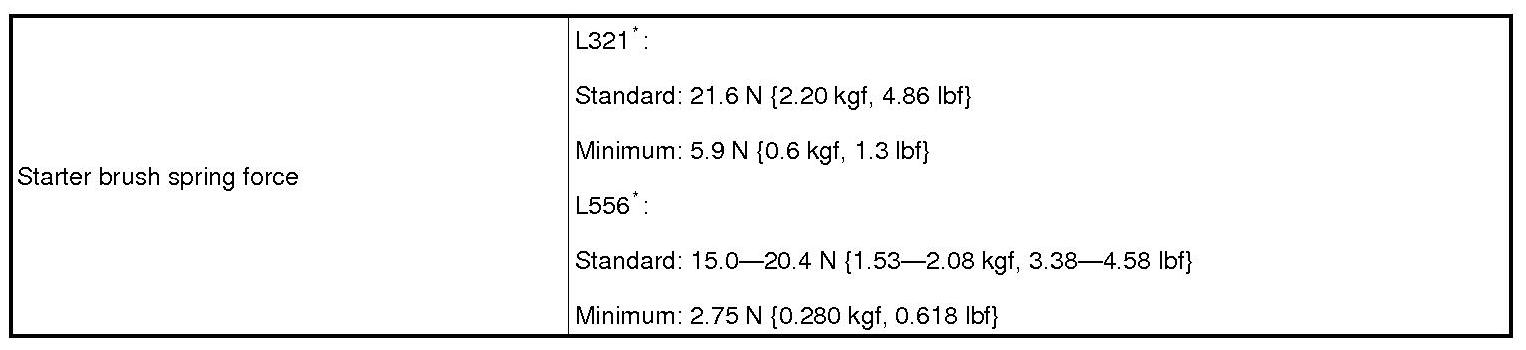

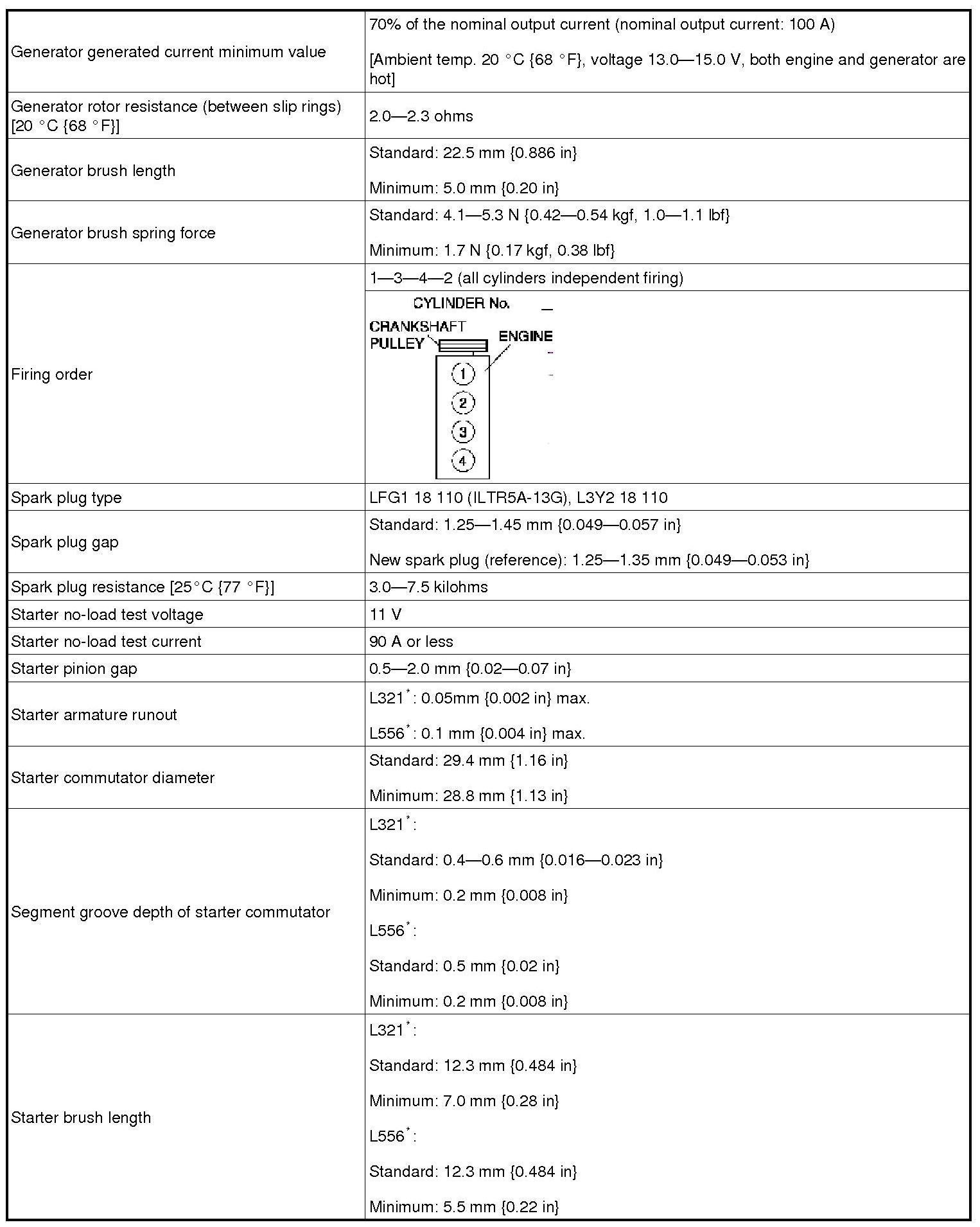

ENGINE TECHNICAL DATA [L5]













*

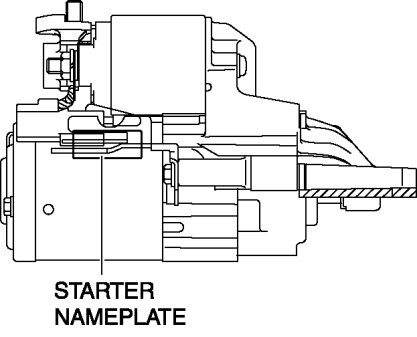

The first four digits of the part number indicated on the starter nameplate

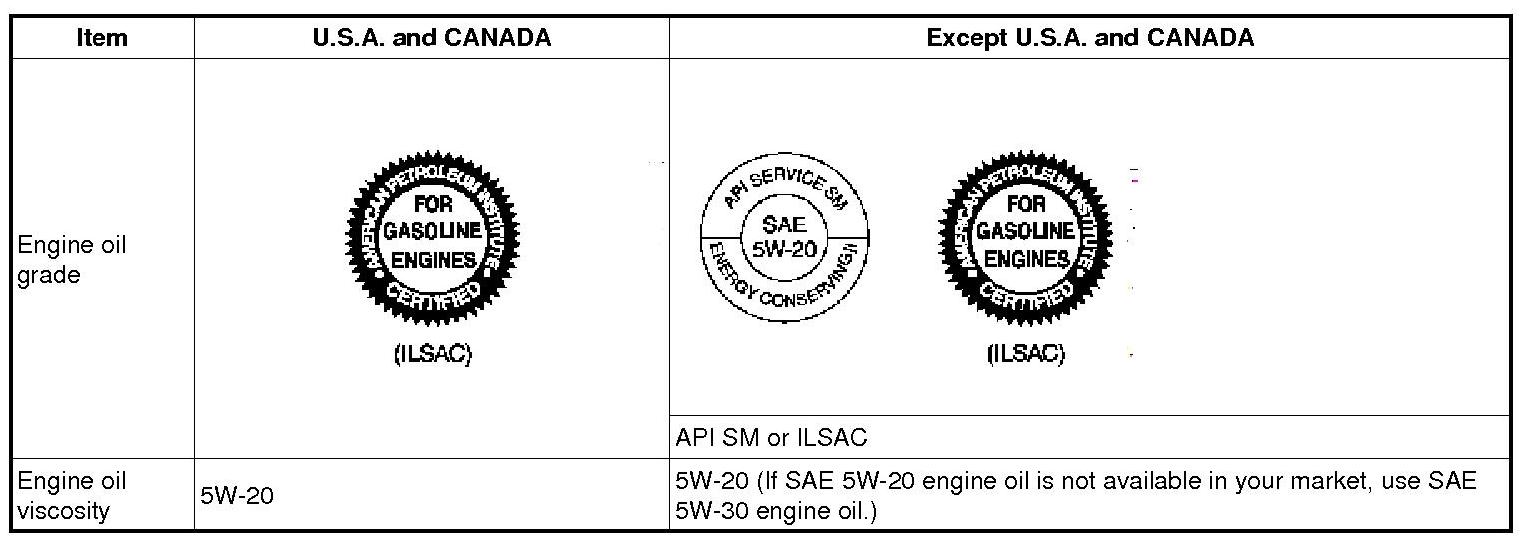

Engine oil specification
