Control Module: Service and Repair

TCM REMOVAL/INSTALLATION [FS5A-EL]

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the battery component (ex: battery, battery tray and PCM component). Removal and Replacement

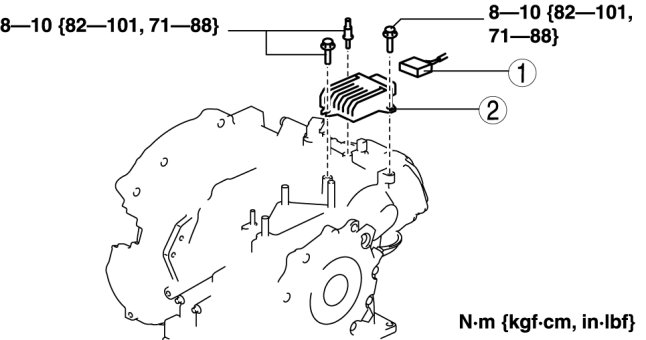

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
