Gear Sleeve Assembly Note

Gear Sleeve Assembly Note

Note: If the secondary shaft gear replaced, install the gear sleeve the following procedures.

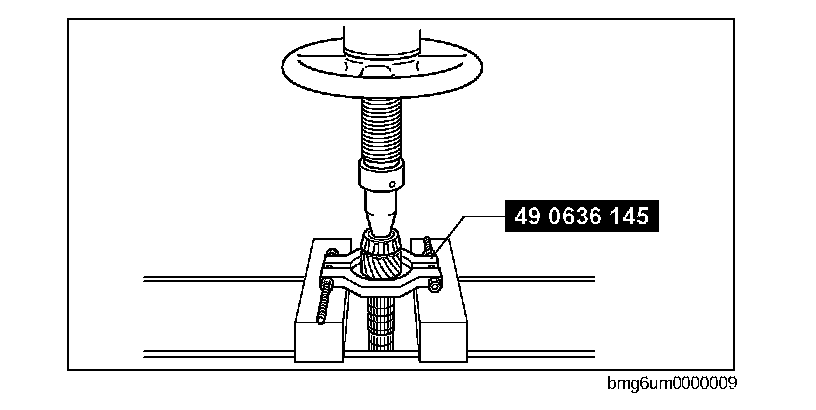

1. Install the new gear sleeve using the SST.
