Keyless Entry Module: Testing and Inspection

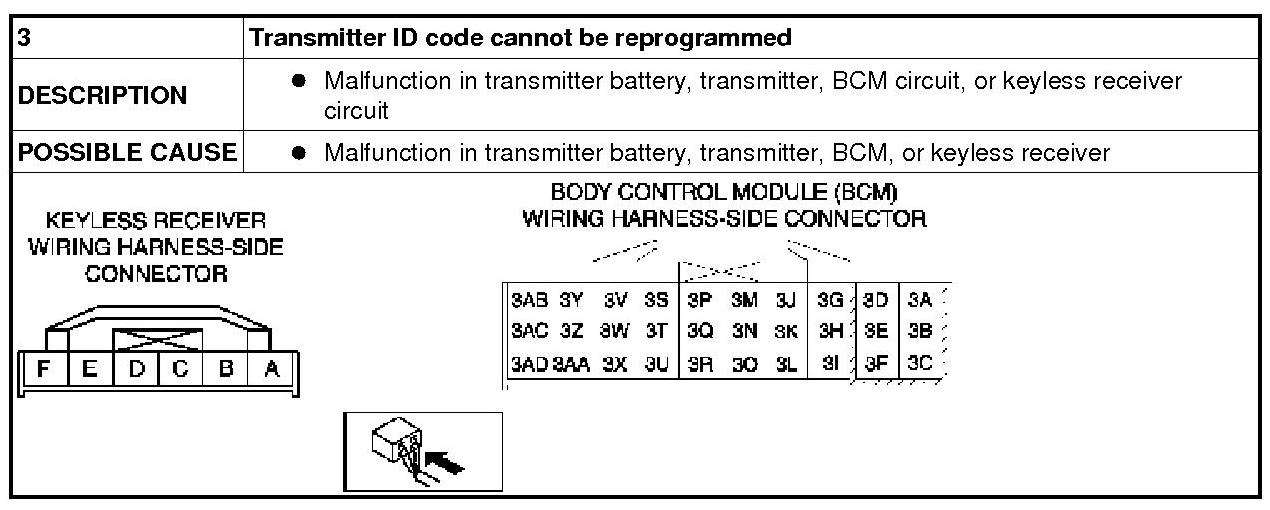

NO.3 TRANSMITTER ID CODE CANNOT BE REPROGRAMMED [KEYLESS ENTRY SYSTEM]

Description/Possible Cause:





Diagnostic procedure

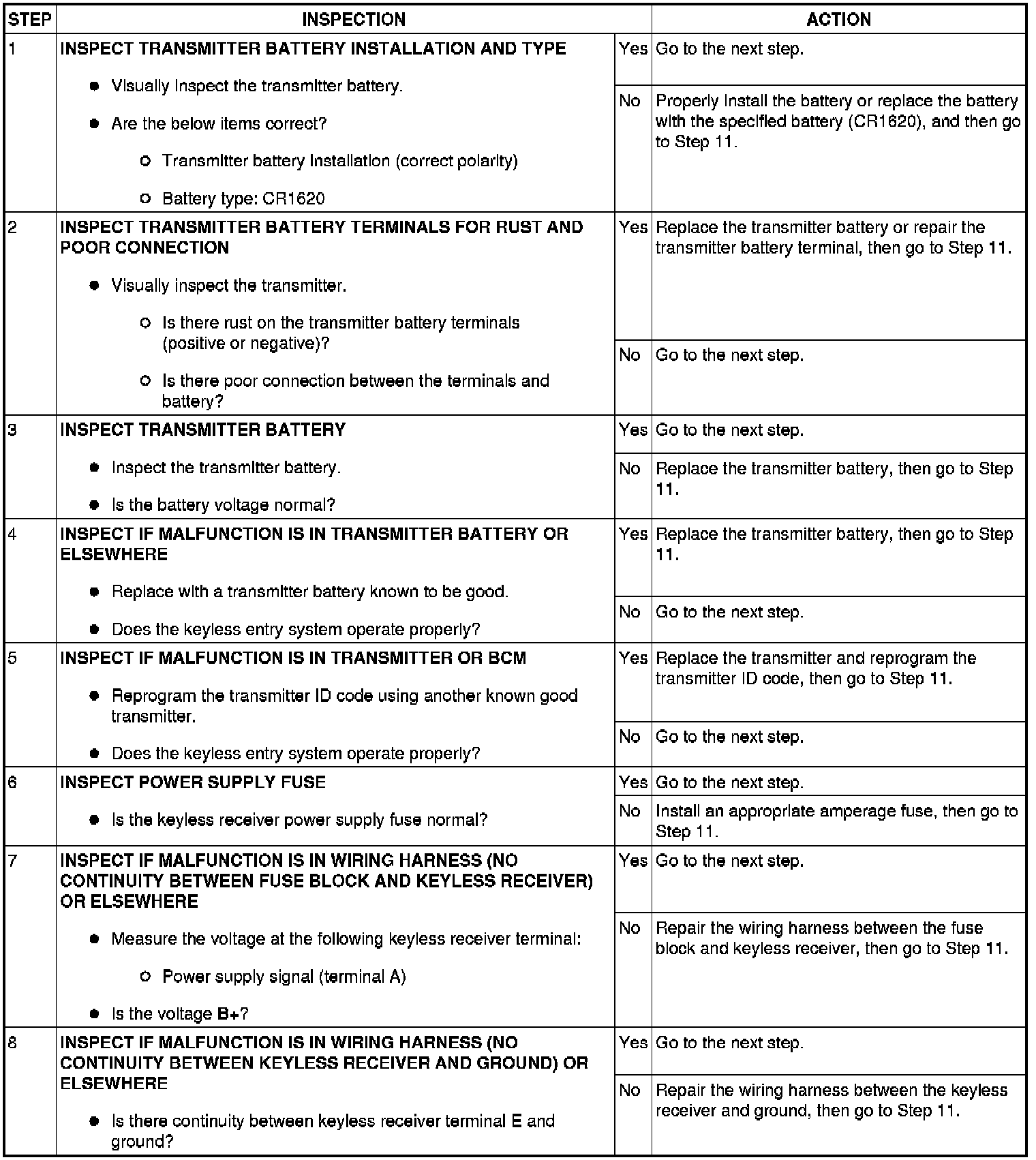

Step 1-Step 8:

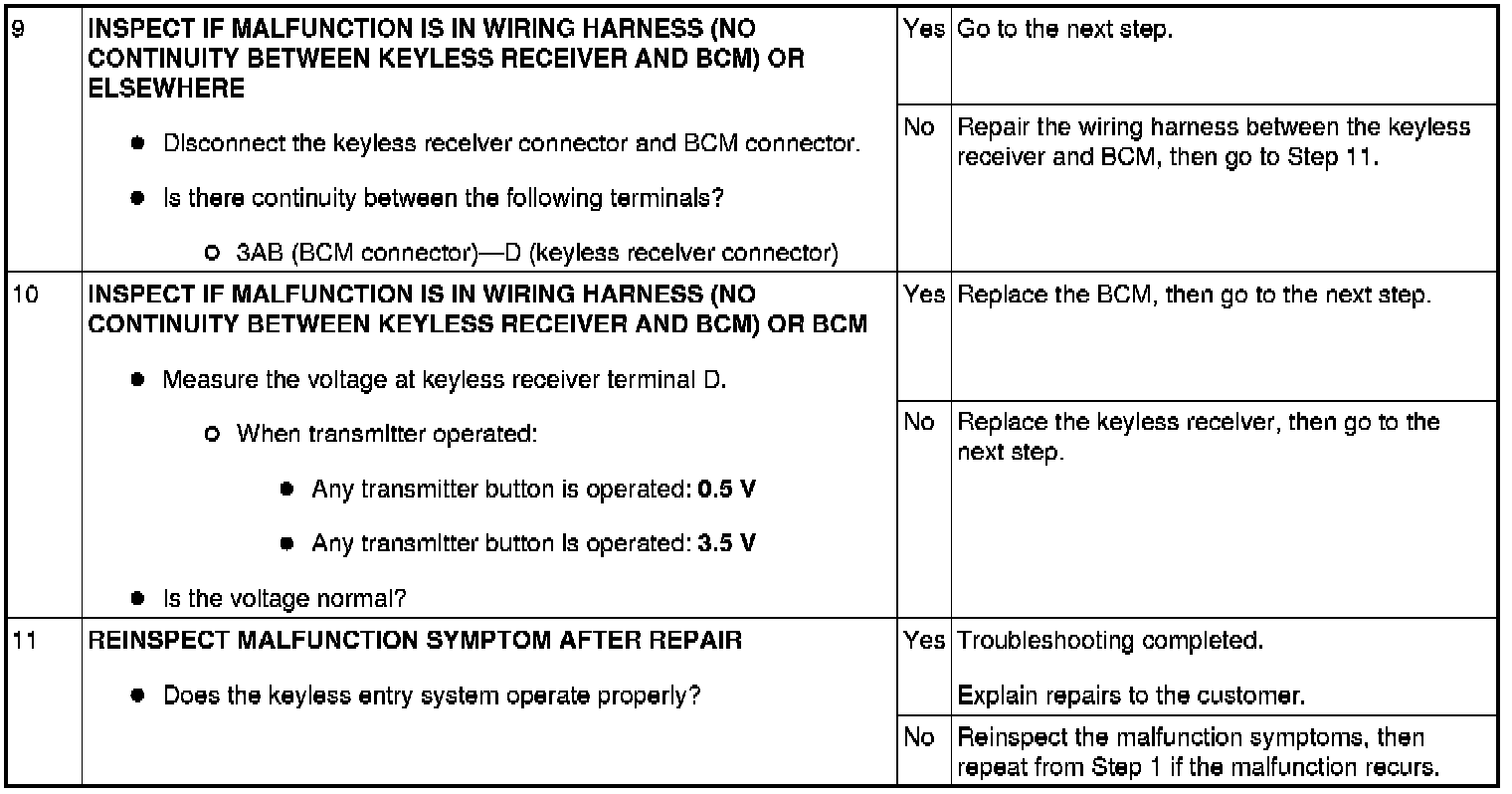

Step 9-Step 11:
