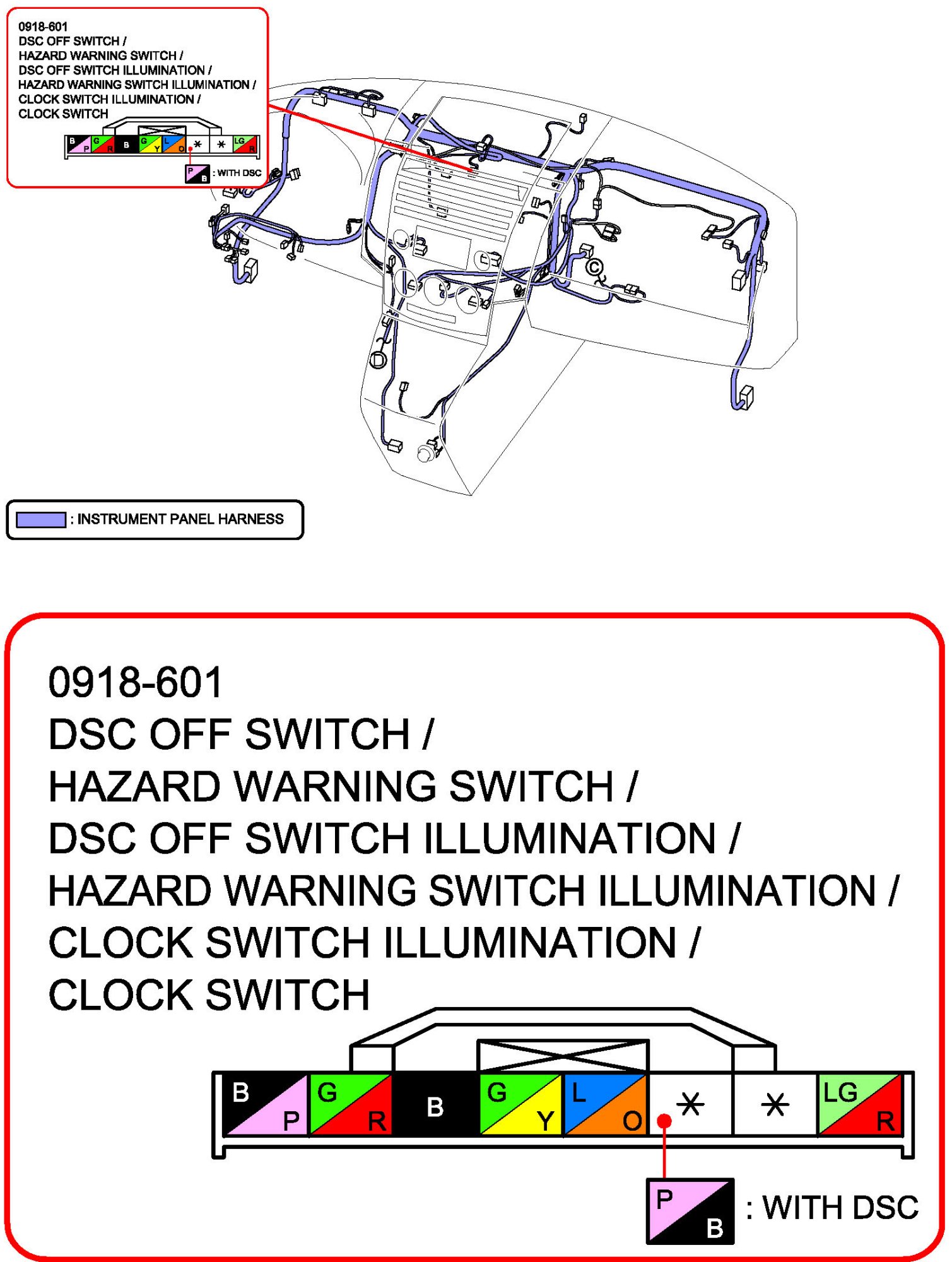

DSC OFF Switch/Hazard Warning Switch/Clock Switch

DSC OFF Switch / Hazard Warning Switch / DSC OFF Switch Illumination / Hazard Warning Switch Illumination / Clock Switch Illumination / Clock Switch


DSC OFF Switch/Hazard Warning Switch/DSC OFF Switch Illumination/Hazard Warning Switch Illumination/Clock Switch Illumination/Clock Switch:
