Climate Control Unit Removal/Installation - Full-Auto Air Conditioner

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

Vehicle Without Car-Navigation Unit

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Center console (Vehicles with rear vent) Center Console Removal/Installation

c. Shift lever component (MTX) Service and Repair

d. Selector lever component (ATX) Service and Repair

e. Front console Front Console Removal/Installation

f. Center panel module Center Panel Module Removal/Installation

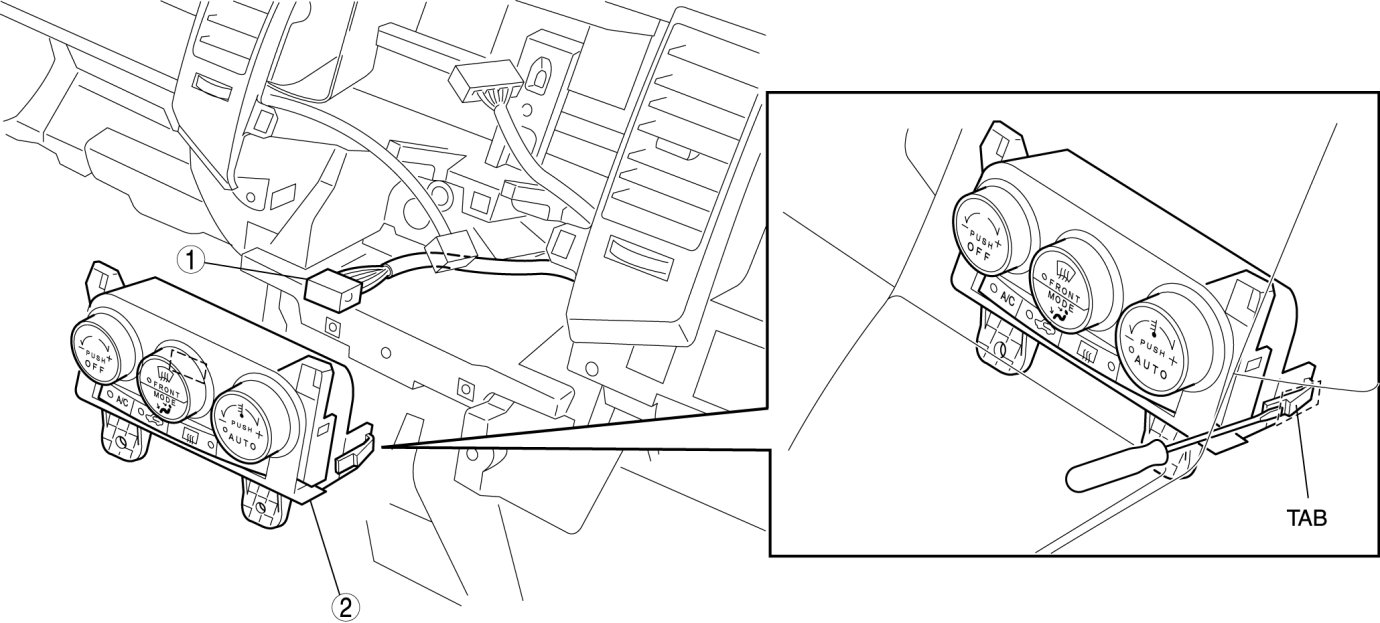

4. Release the left and right tabs and remove as shown in the figure.










5. Install in the reverse order of removal.

Vehicle With Car-Navigation Unit

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Center console (Vehicles with rear vent) Center Console Removal/Installation

c. Shift lever component (MTX) Service and Repair

d. Selector lever component (ATX) Service and Repair

e. Front console Front Console Removal/Installation

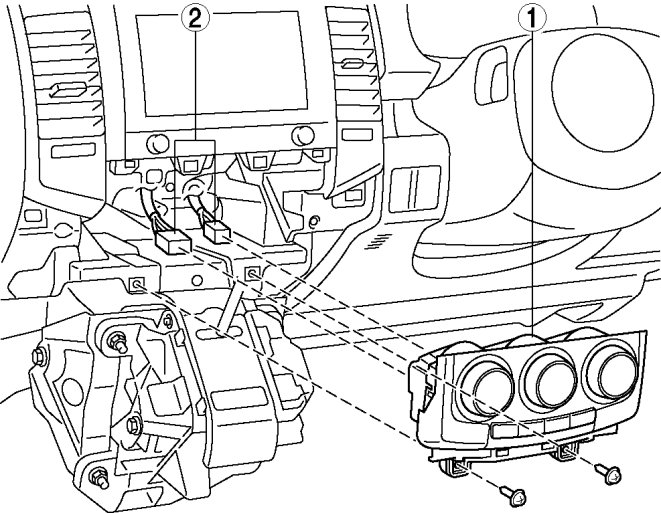

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
