Programming and Relearning

PCM CONFIGURATION [L3]

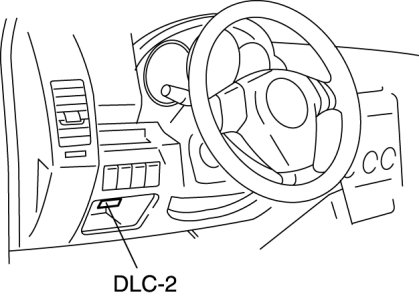

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select the "Module Programming".
- When using the PDS (Pocket PC)

1 Select the "Programming".
2 Select the "Module Programming".

3. Then, select items from the screen menu in the following order.

- Select the "Programmable Module Installation".
- Select the "PCM".

4. Perform the configuration according to the directions on the screen.

5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.

- If a DTCs is detected, perform the applicable DTC inspection. (See DTC Table [Engine])
