Main Relay (Computer/Fuel System): Locations
RELAY LOCATION

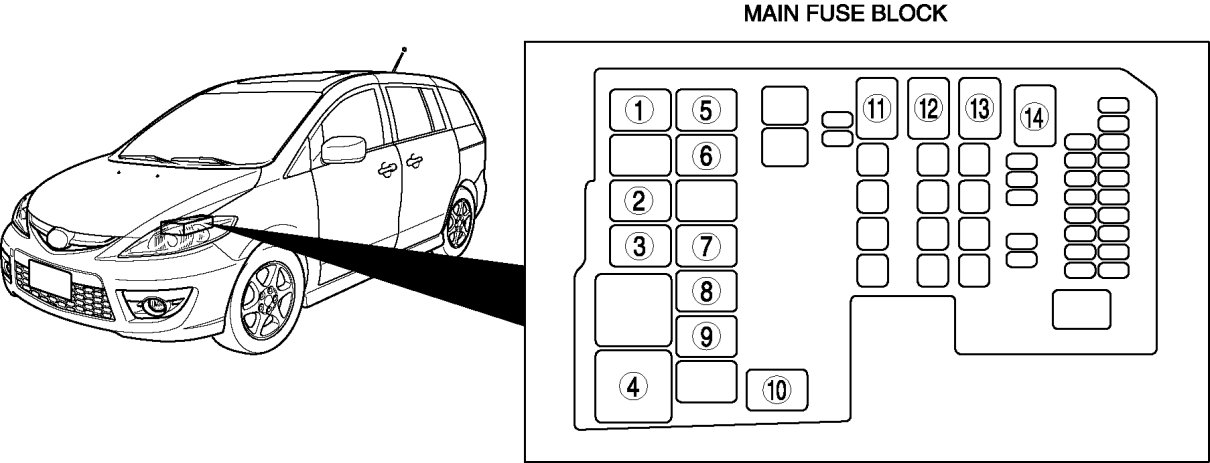

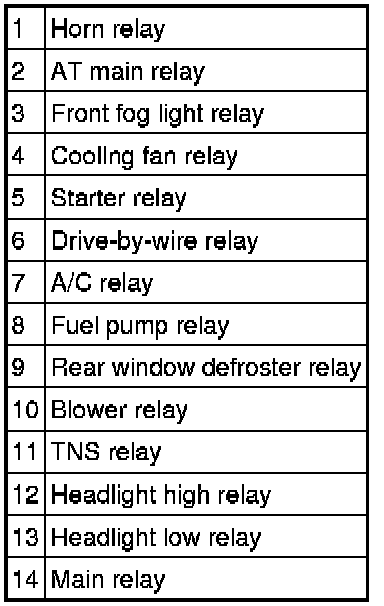

Without Rear Vent

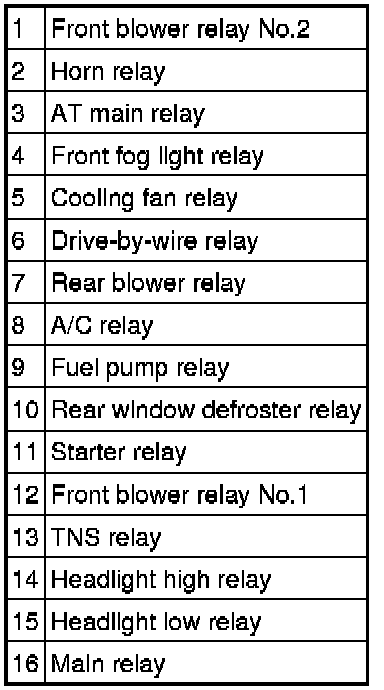

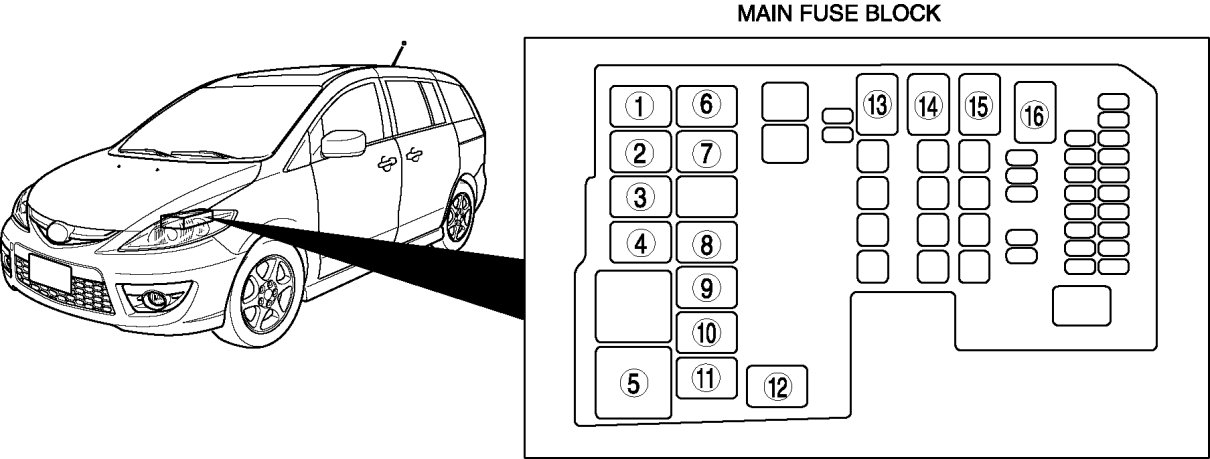

With Rear Vent
From Wiring Information

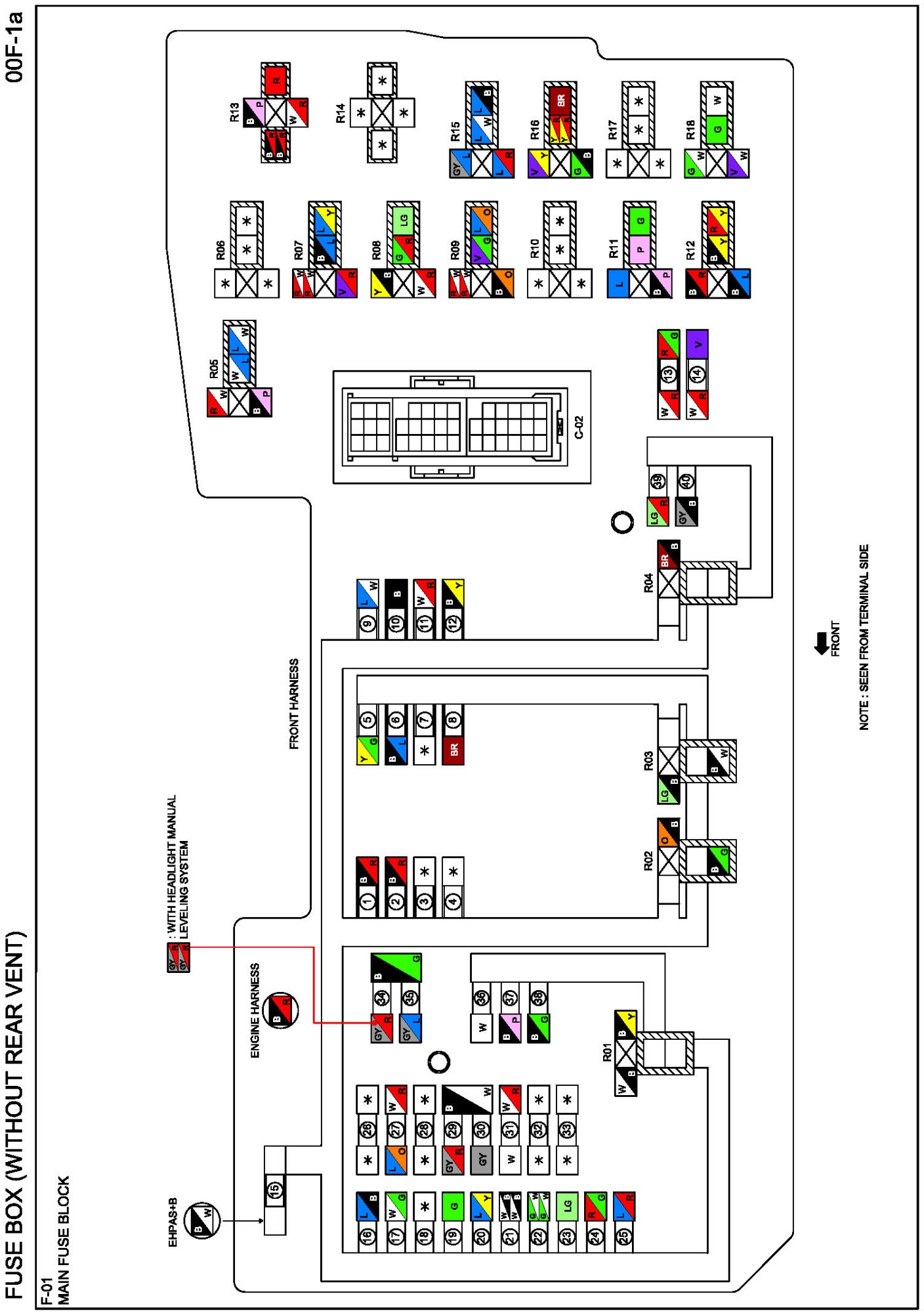

Diagram 00F-1a:

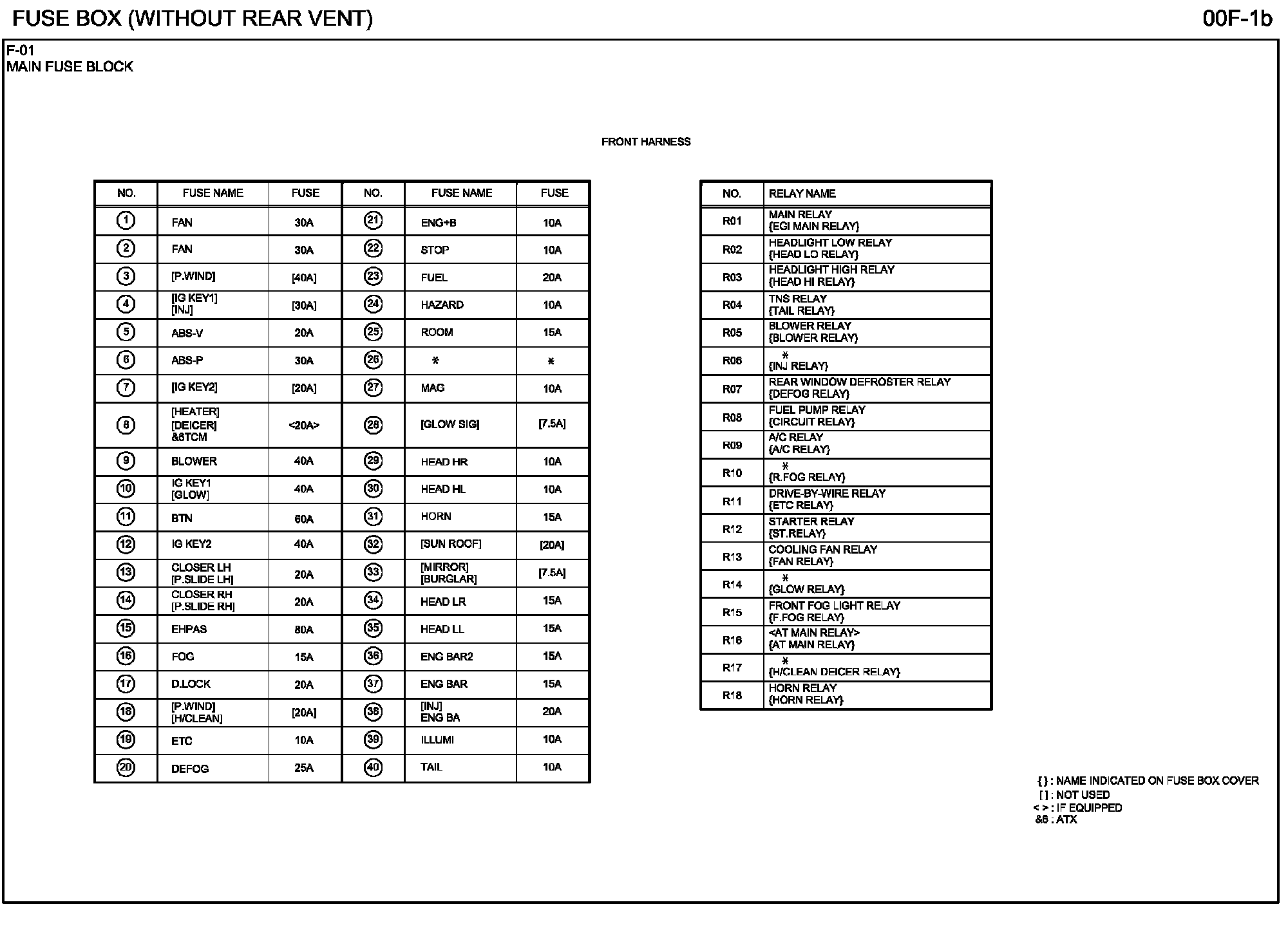

Diagram 00F-1b:

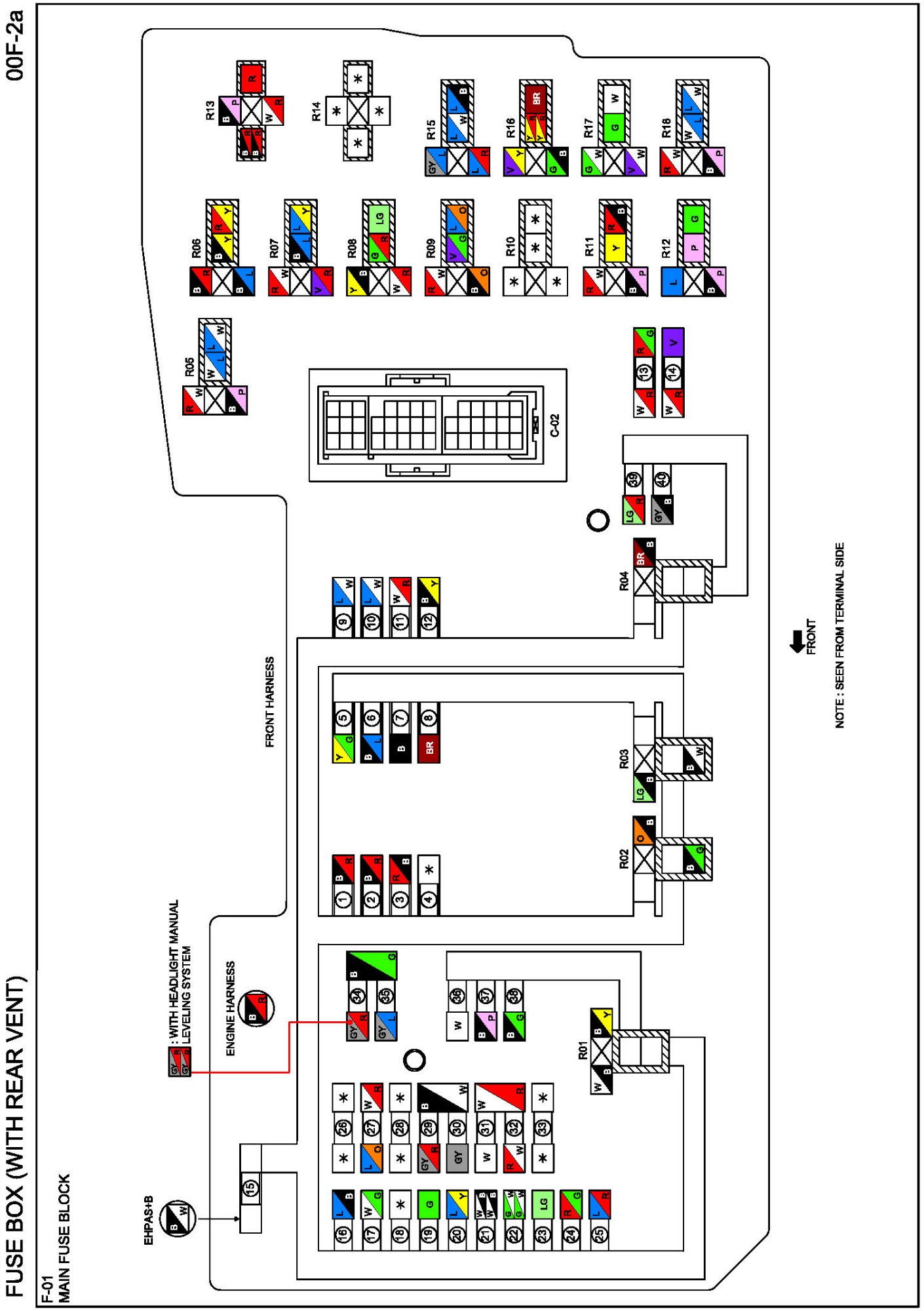

Diagram 00F-2a:

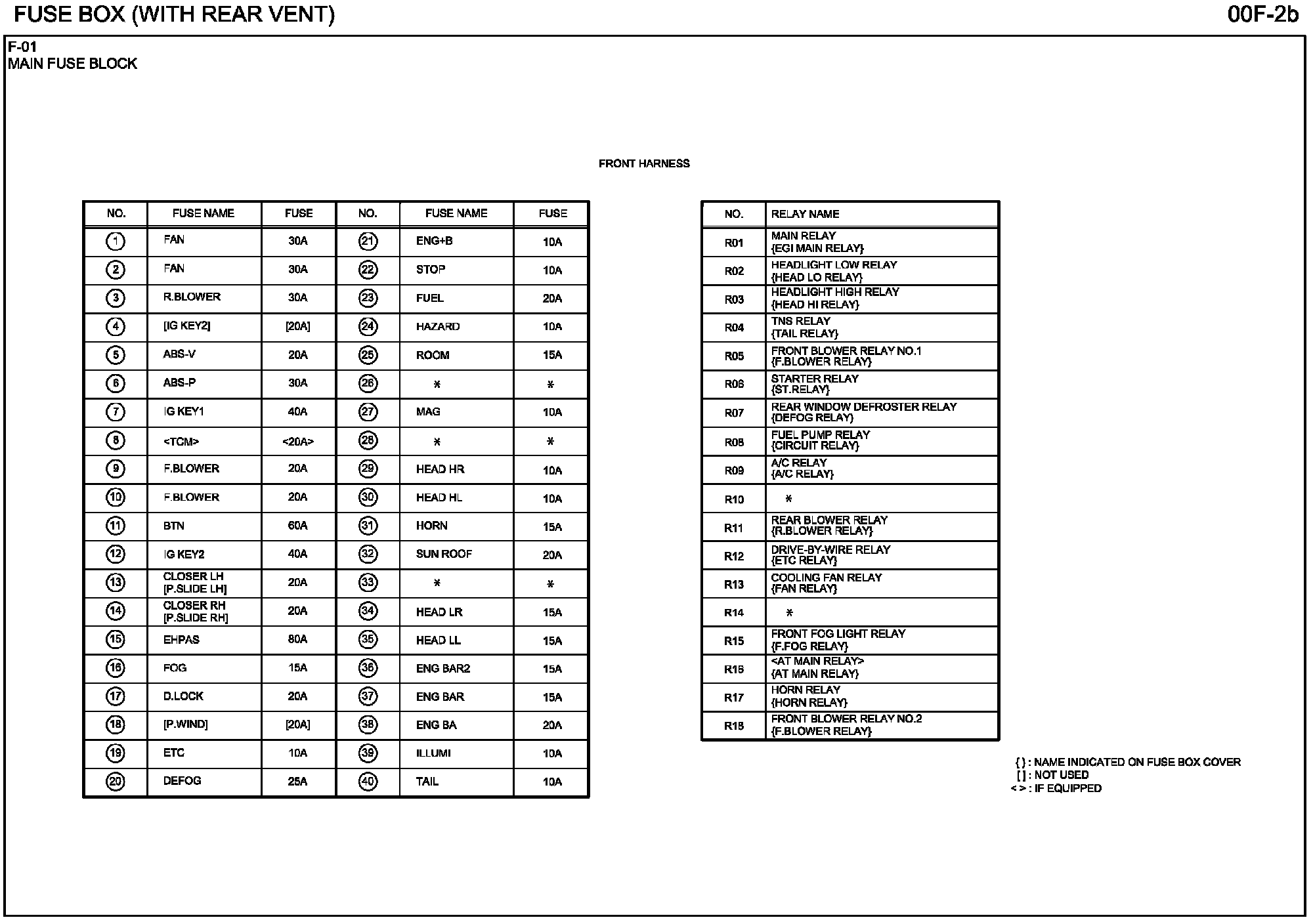

Diagram 00F-2b:
RELAY LOCATION
Without Rear Vent
With Rear Vent
From Wiring Information
