Engine Technical Data [L3]




ENGINE TECHNICAL DATA [L3]

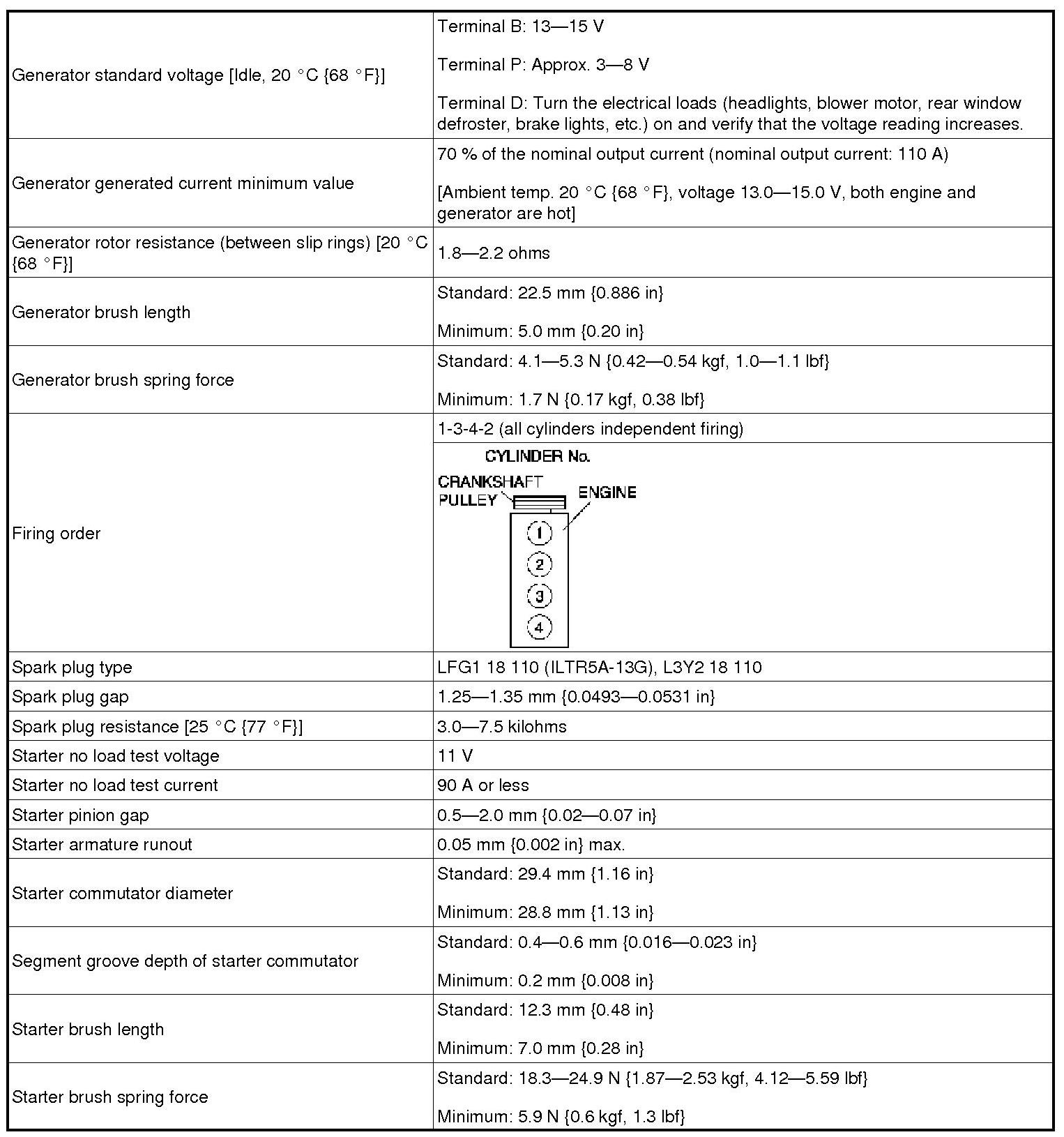

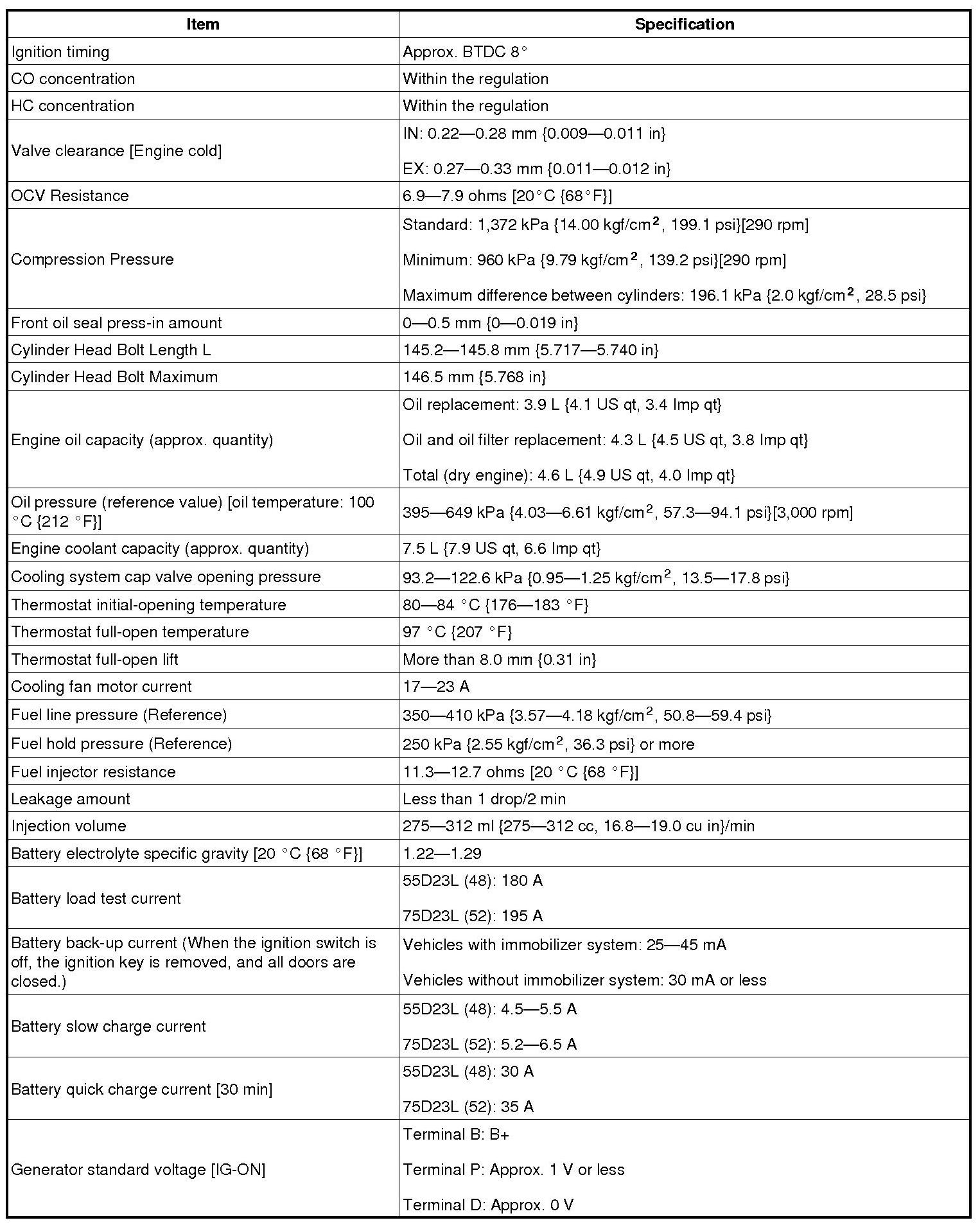

Engine Technical Data:





Engine Technical Data:

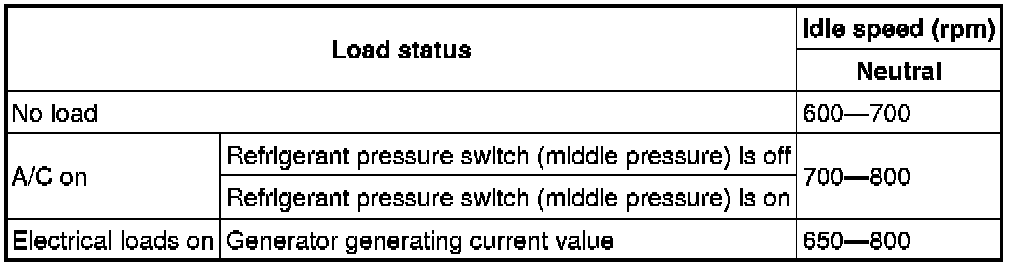

Idle speed: MTX

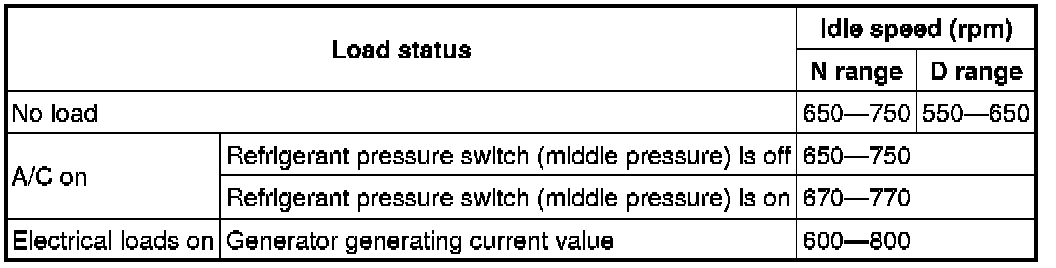

Idle speed: ATX

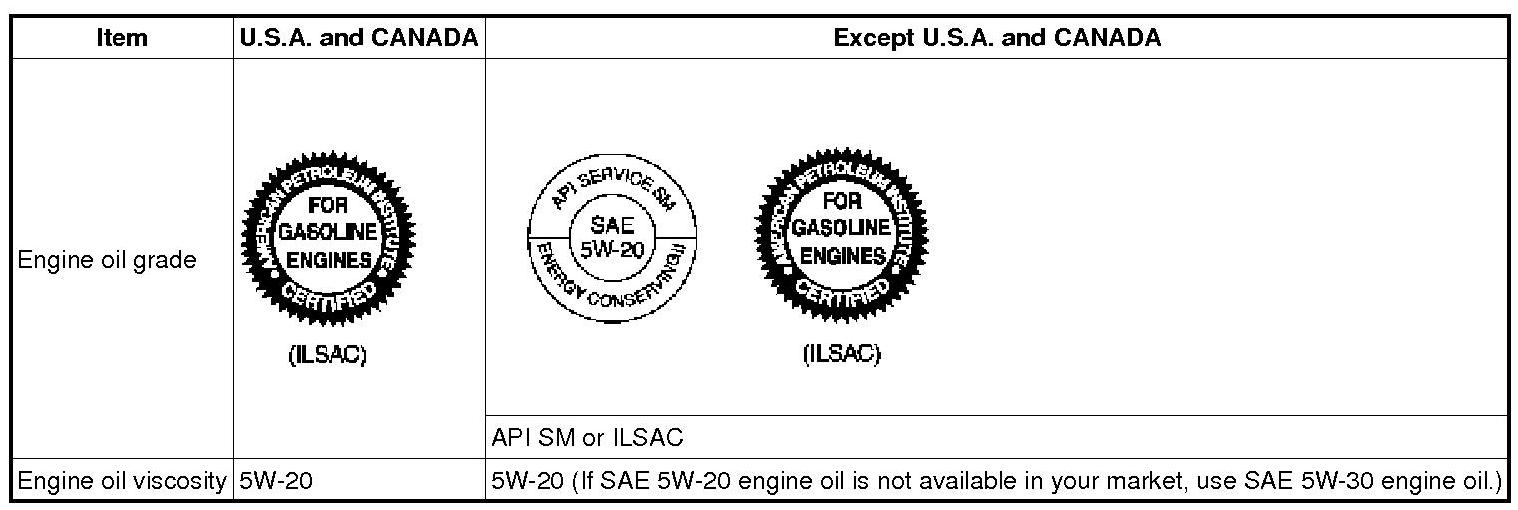

Engine oil specification
