System Specifications

Chain Tensioner
Tighten 8.0-11.5 N-m (81.6-117.2 kgf-cm, 70.9-101.7 in-lbf)

Engine Front Cover

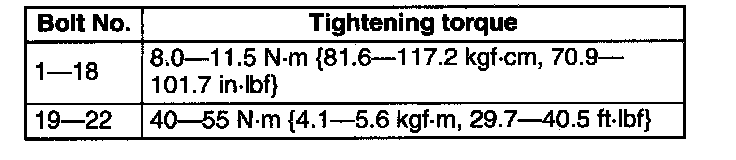

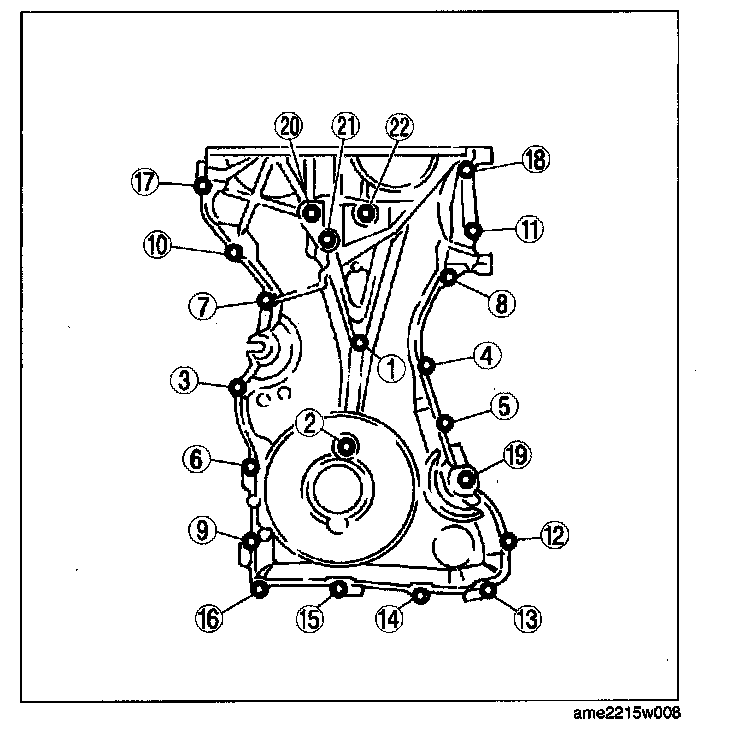

Install the engine front cover bolts in the order as shown in the figure.








Crankshaft Pulley
Tighten the crankshaft pulley lock bolt in the order shown following two steps using the SST (49 D032 316).
(1) Tighten 96-104 N-m (9.8-10.6 kgf-m, 70.9-76.7 ft-lbf)
(2) Tighten 87°-93°

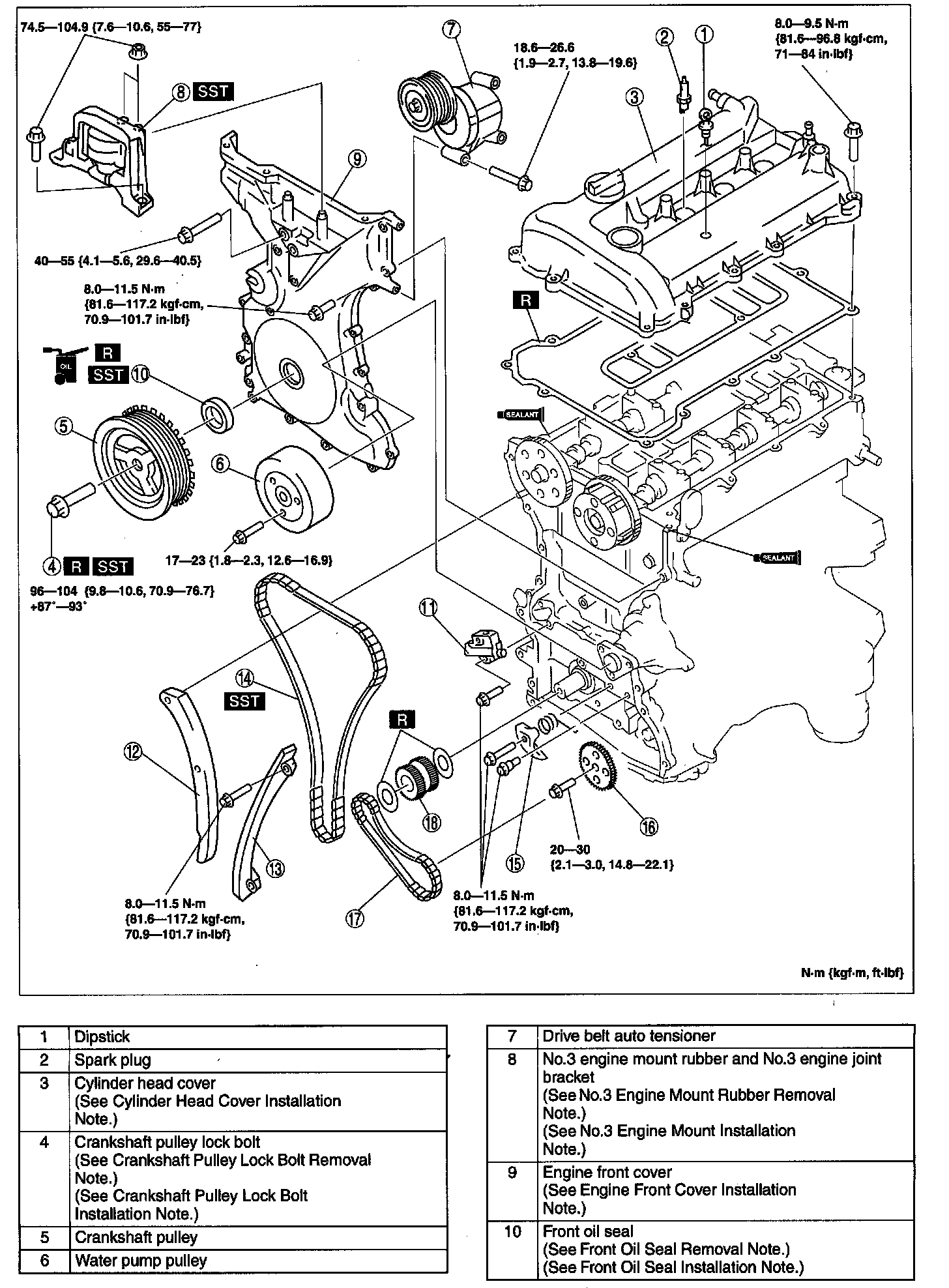

Timing Chain Components
