No.3 Push Button Start System Does Not Operate - Advanced Keyless Entry And Push Button Start System




NO.3 PUSH BUTTON START SYSTEM DOES NOT OPERATE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

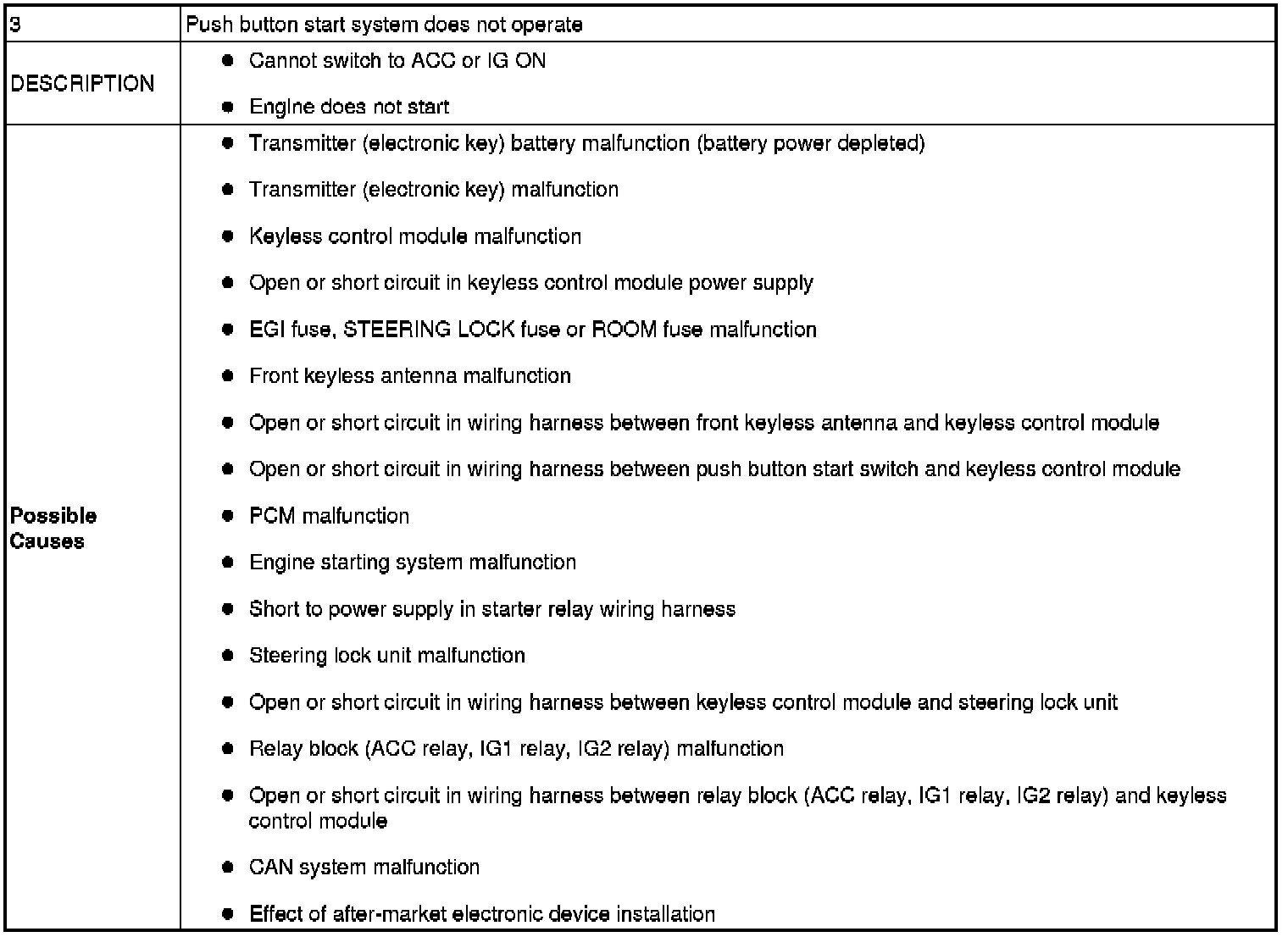

Description/Possible Cause:





Diagnostic procedure

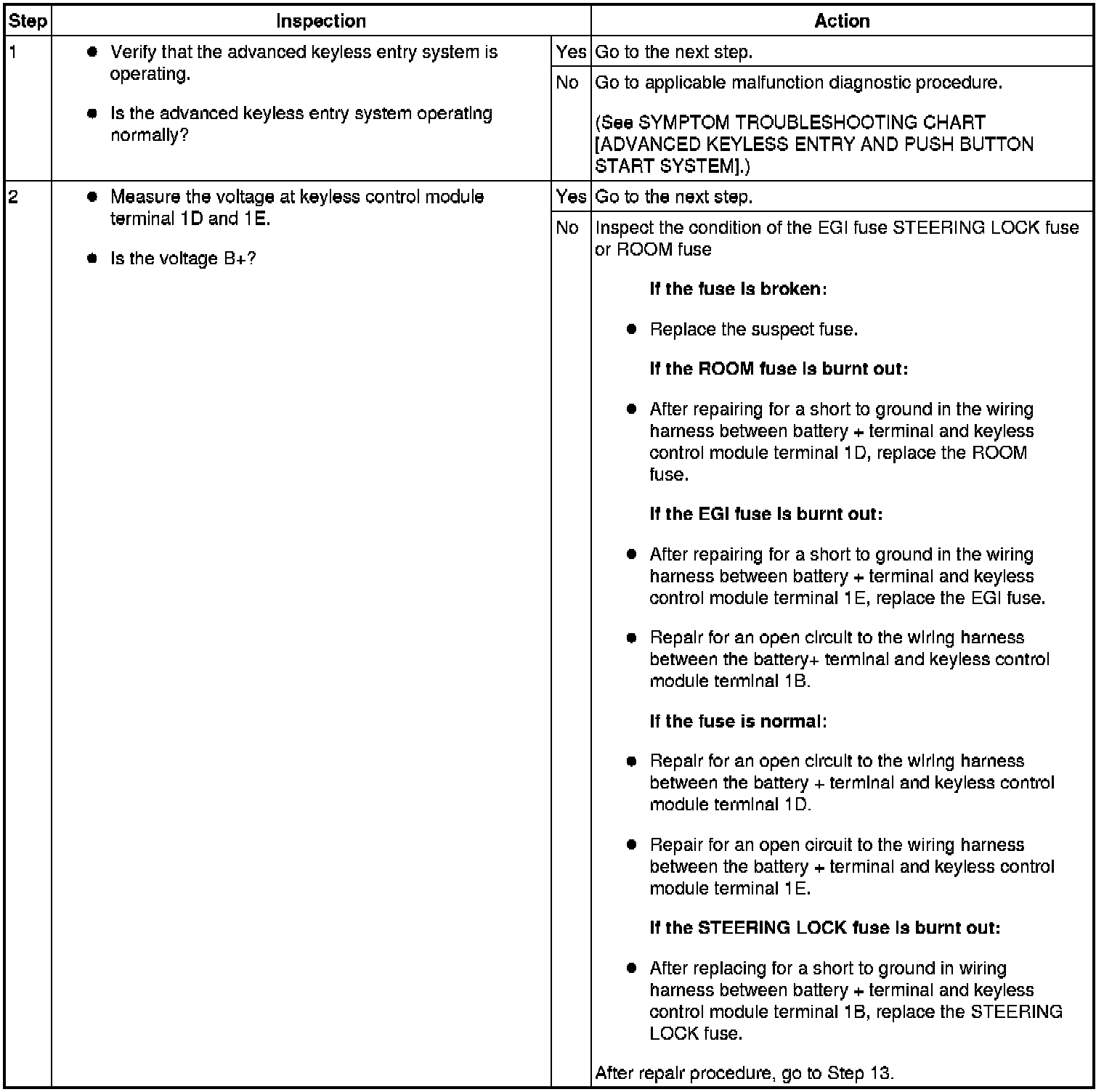

Step 1-Step 2:

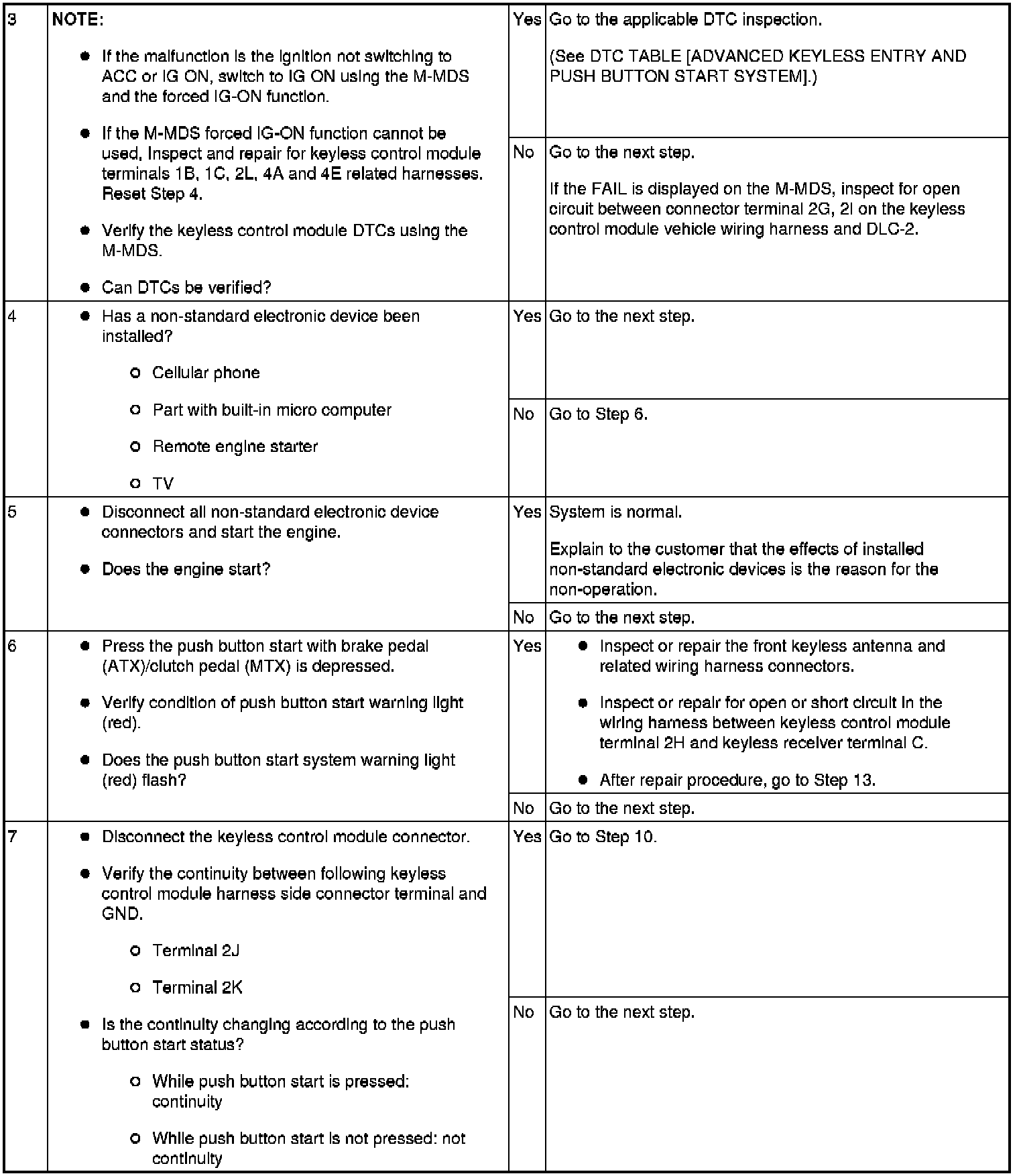

Step 3-Step 7:

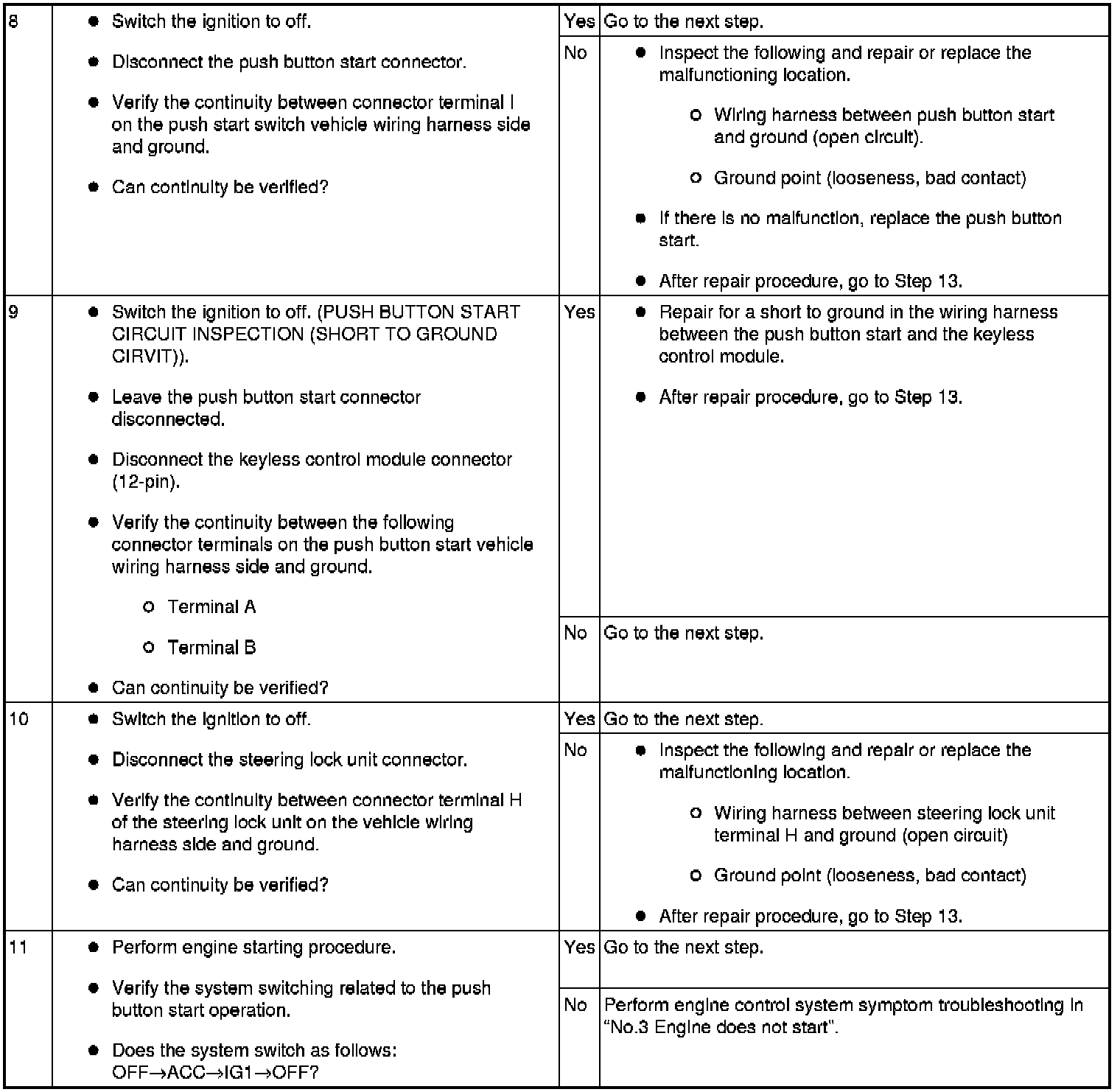

Step 8-Step 11:

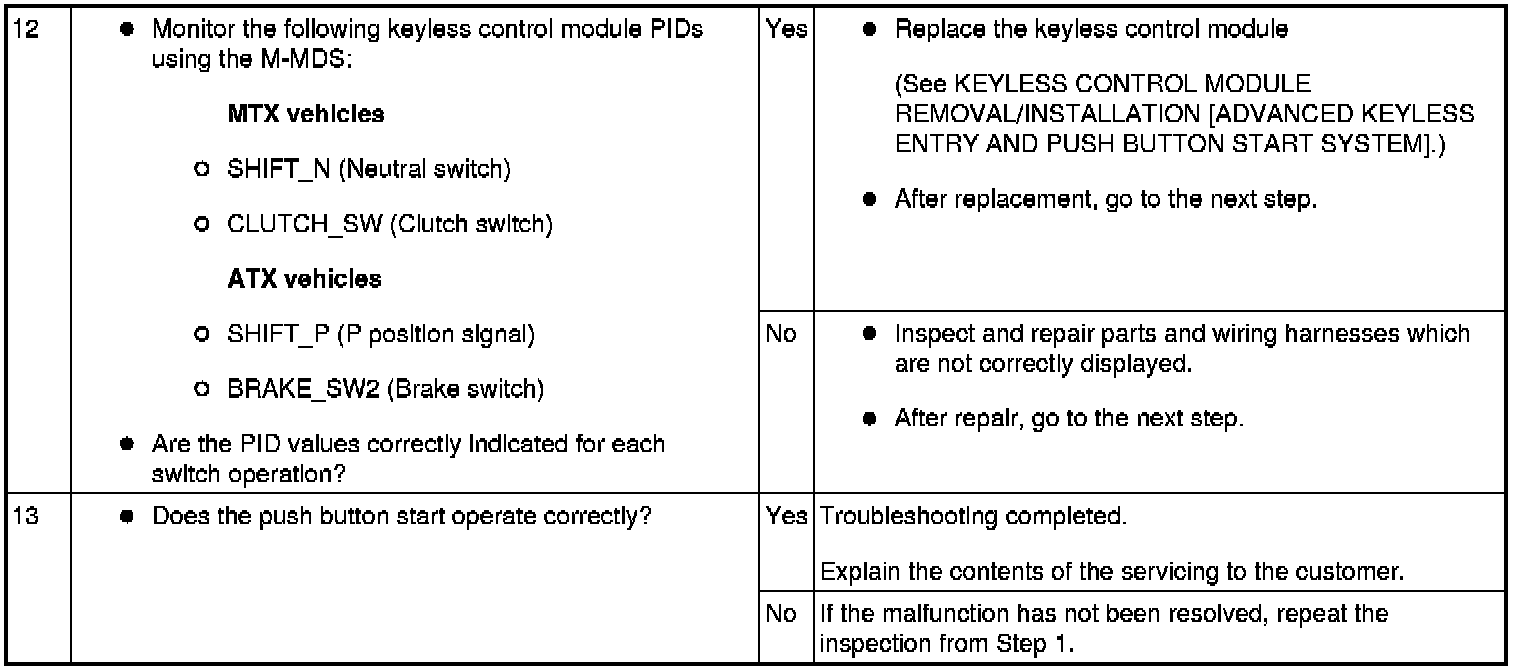

Step 12-Step 13:
