Exhaust Manifold

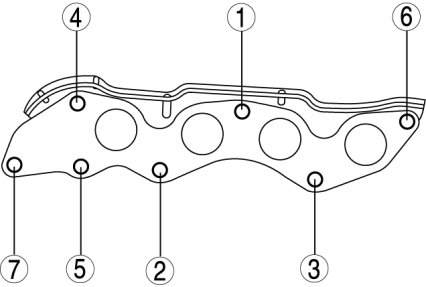

Tighten the exhaust manifold installation nuts in the order shown in the figure.






Tightening torque 43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}

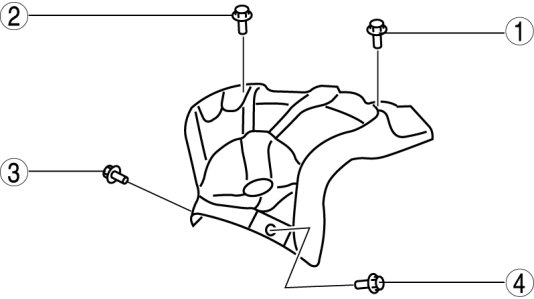

Tighten the exhaust manifold insulator in the order shown in the figure.






Tightening torque 8-10 Nm {82-101 kgf-cm, 71-88 in-lbf}
