Flywheel

Gradually tighten the flywheel lock bolts in a crisscross pattern.

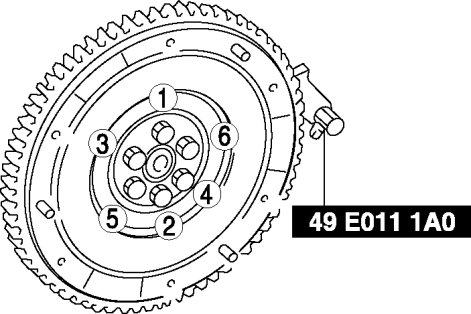

Tighten the lock bolts in three steps in the order shown in the figure.

Tightening torque
1st: 46-54 Nm {4.7-5.5 kgf-m, 34-39 ft-lbf}
2nd: 76-84 Nm {7.8-8.5 kgf-m, 57-61 ft-lbf}
3rd: 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
