Power Window System Wiring Diagram




POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

Without Outer Mirror Retract Switch

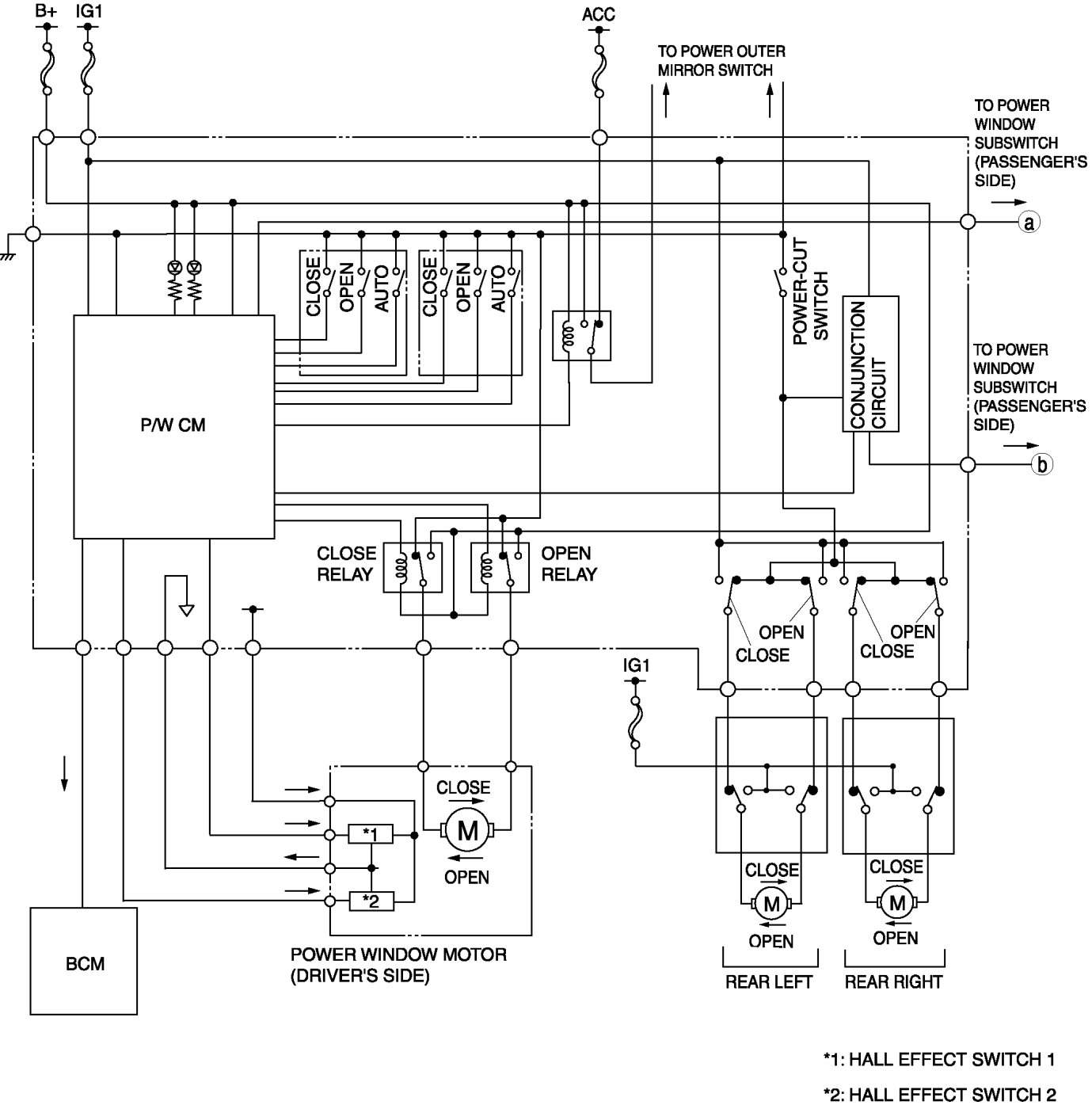

Power window main switch

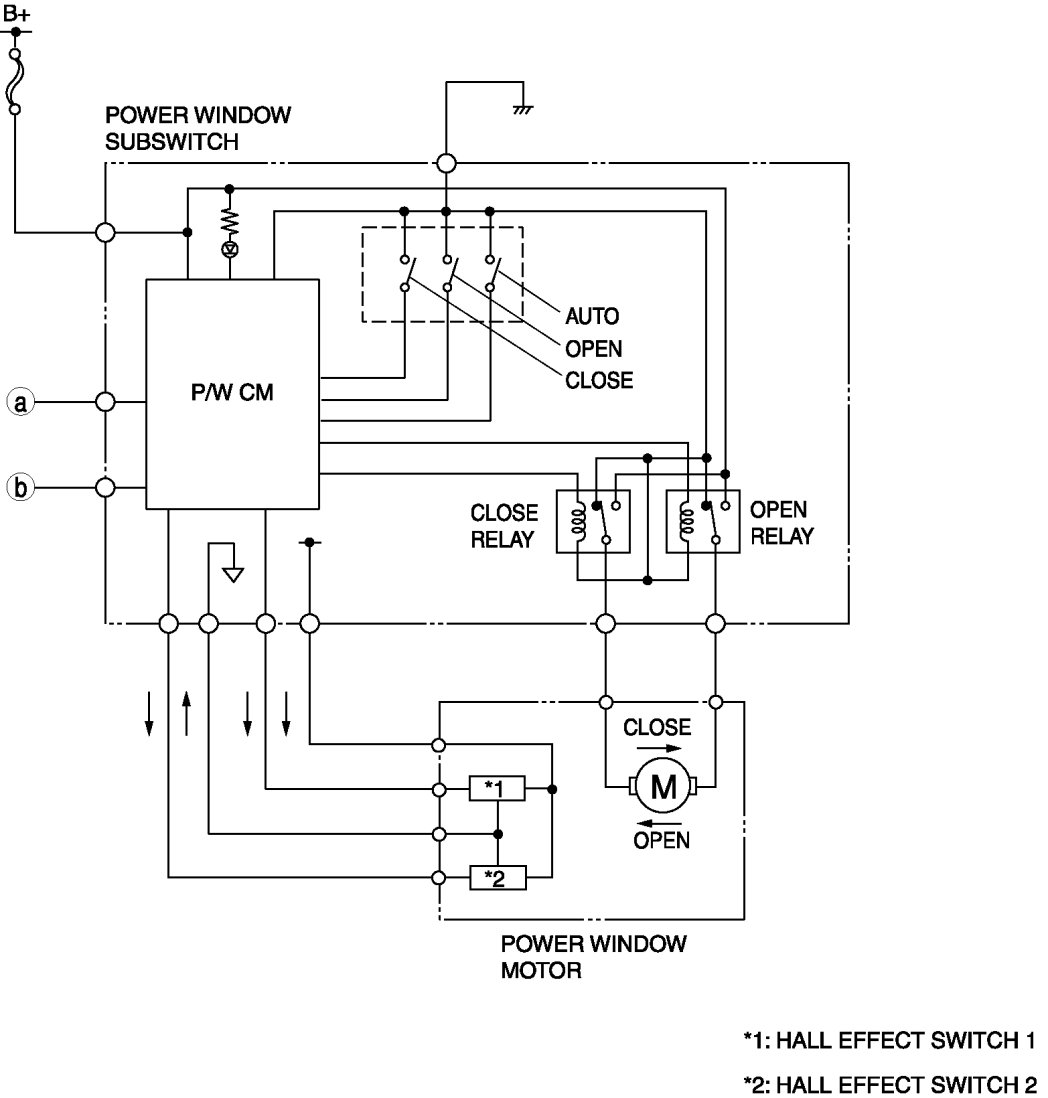

Power Window Subswitch





With Outer Mirror Retract Switch

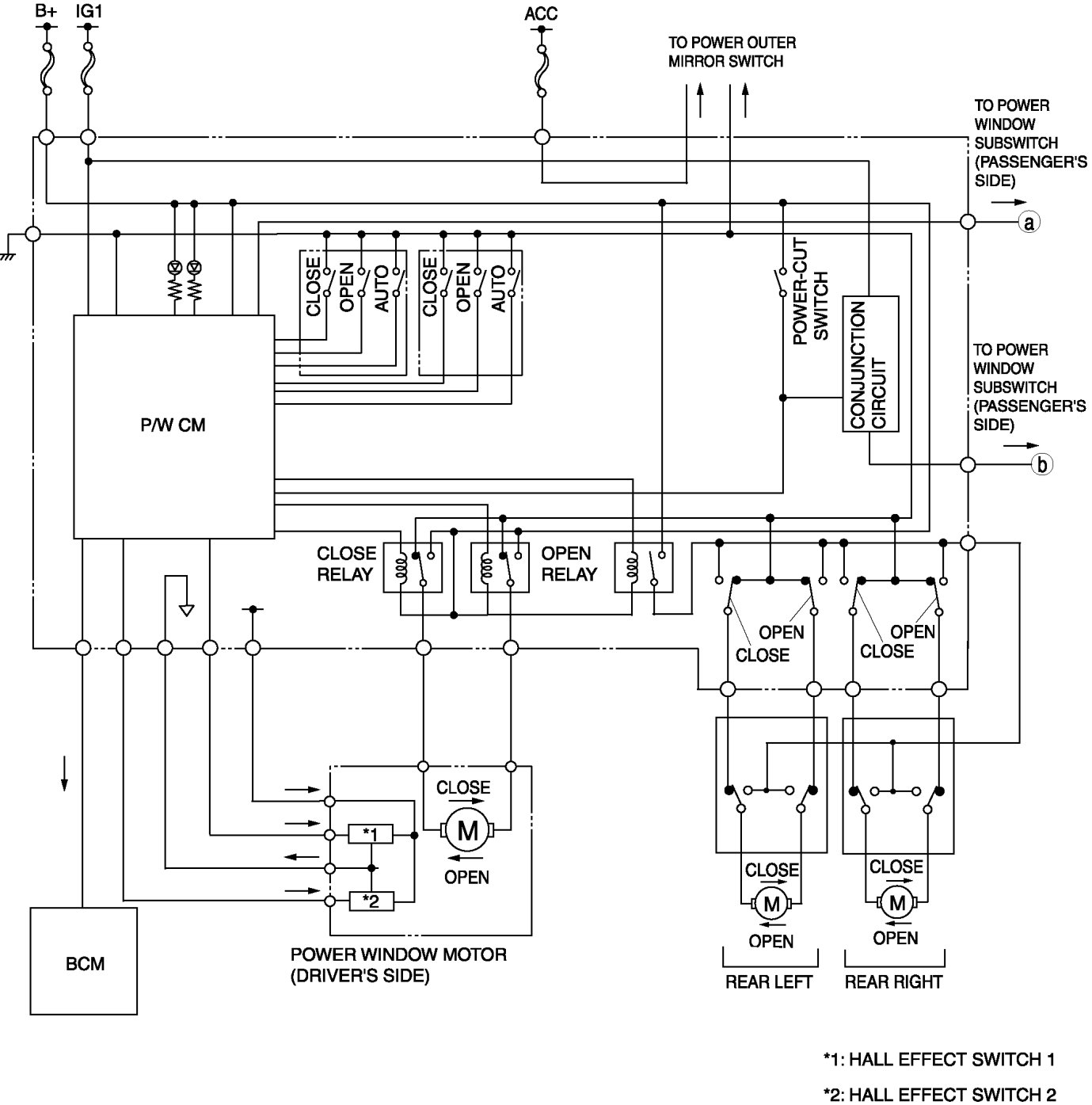

Power window main switch





Power Window Subswitch
