Air Flow Meter/Sensor: Service and Repair

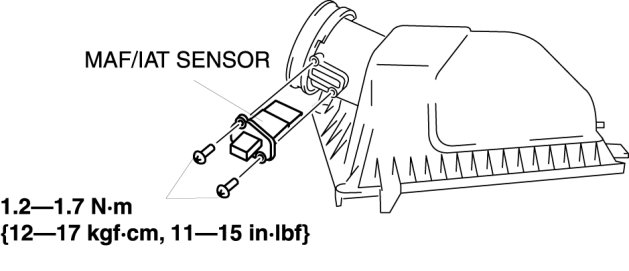

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable.

2. Disconnect MAF/IAT sensor connector.

3. Remove the MAF/IAT sensor.






4. Install in the reverse order of removal.
