Engine Temperature Sensor: Testing and Inspection

CYLINDER HEAD TEMPERATURE (CHT) SENSOR INSPECTION [MZI-3.7]

Resistance Inspection

1. Disconnect the CHT sensor connector.

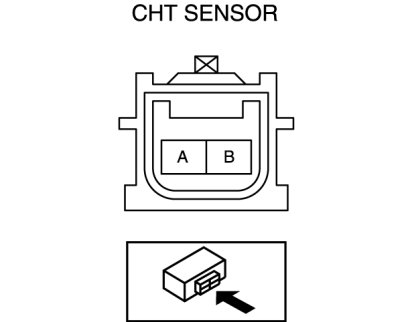

2. Measure the resistance between the CHT sensor terminals.

- If it is not within the specification, replace the CHT sensor.

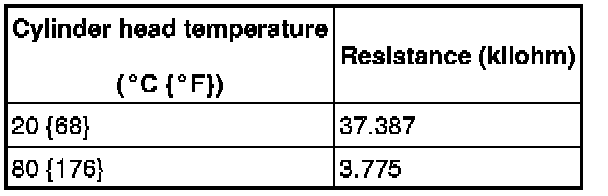

Measure the cylinder head temperature sensor resistance (approx.).

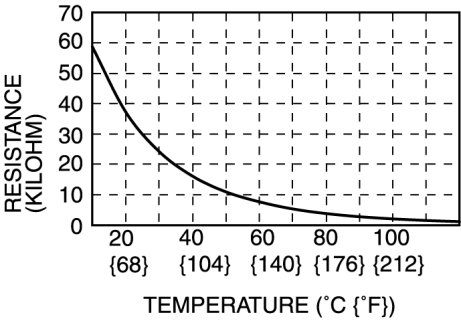

Cylinder head temperature sensor characteristics graph (reference)
