Cylinder Head Assembly

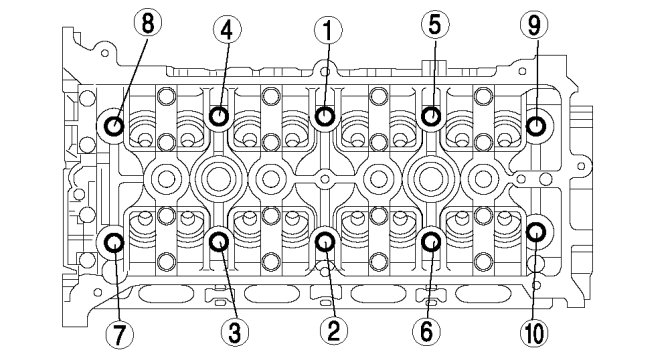

Cylinder HeadTighten the cylinder head installation bolts in three steps in the order shown in the figure.
Tightening torque: 18-22 Nm {1.8-2.2 kgf-m, 13-16 ft-lbf}
Tightening angle: 85°-95°
Tightening angle: 85°-95°
Bolt Re-usability
If length exceeds the maximum specification, replace the cylinder head installation bolt

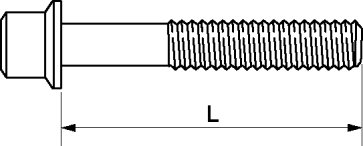

Cylinder head bolt length
Standard: 128.9-129.5 mm {5.075-5.098 in}
Maximum: 130.2 mm {5.125 in}
CAMSHAFT CAP

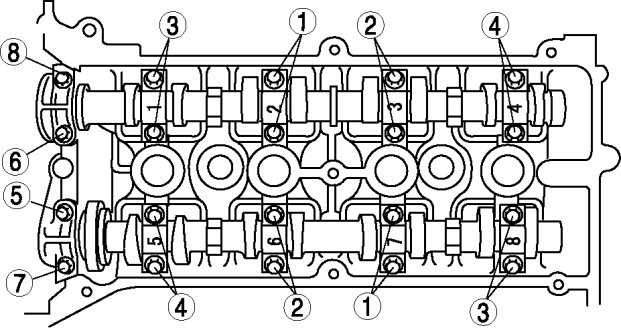

Tighten the camshaft installation bolts in two or three steps uniformly in the order shown in the figure
Tightening torque 12-14 Nm {116-145 kgf-cm, 100-125 in-lbf}
Intake Manifold Specifications
Exhaust Manifold Specifications
Camshaft Gear/Sprocket Specifications
