Component Tests and General Diagnostics

POWER WINDOW SYSTEM PRELIMINARY INSPECTION [POWER WINDOW SYSTEM]

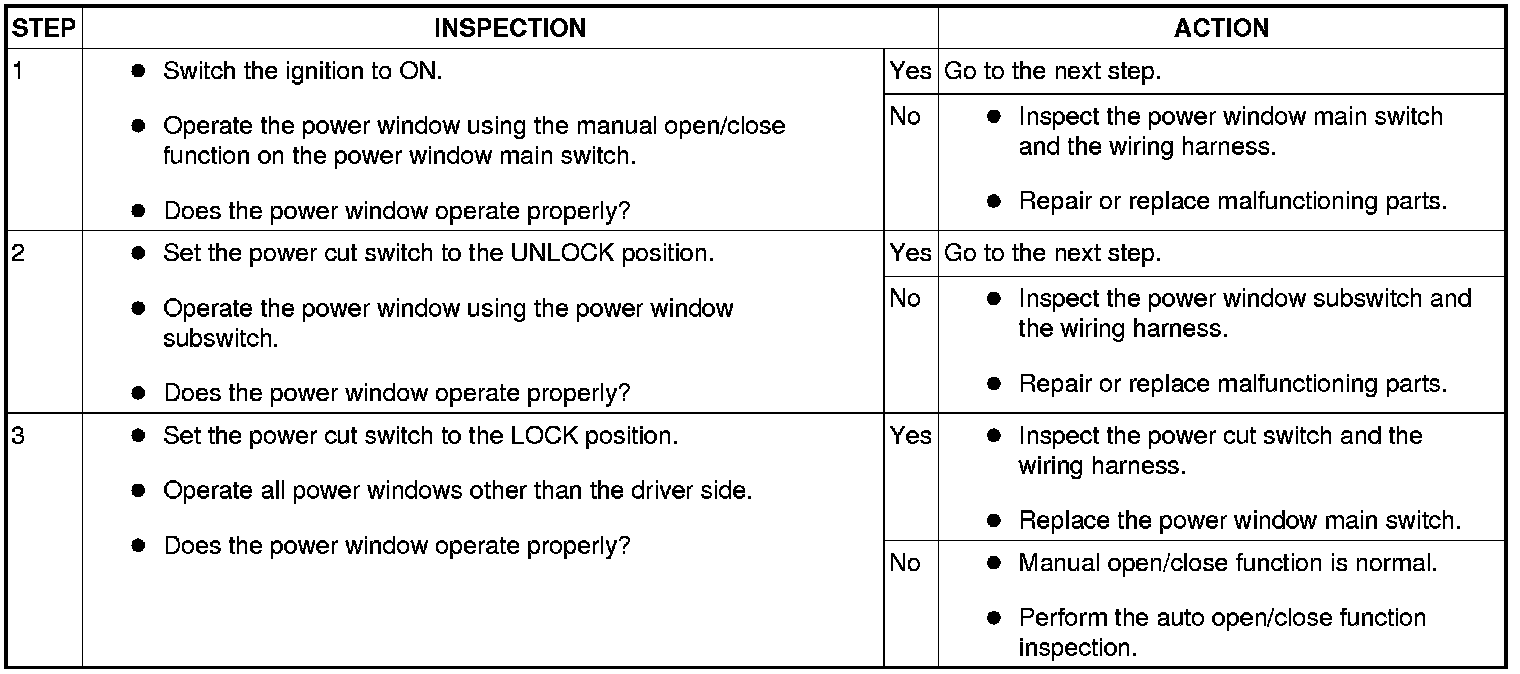

Manual Open/close Function Inspection

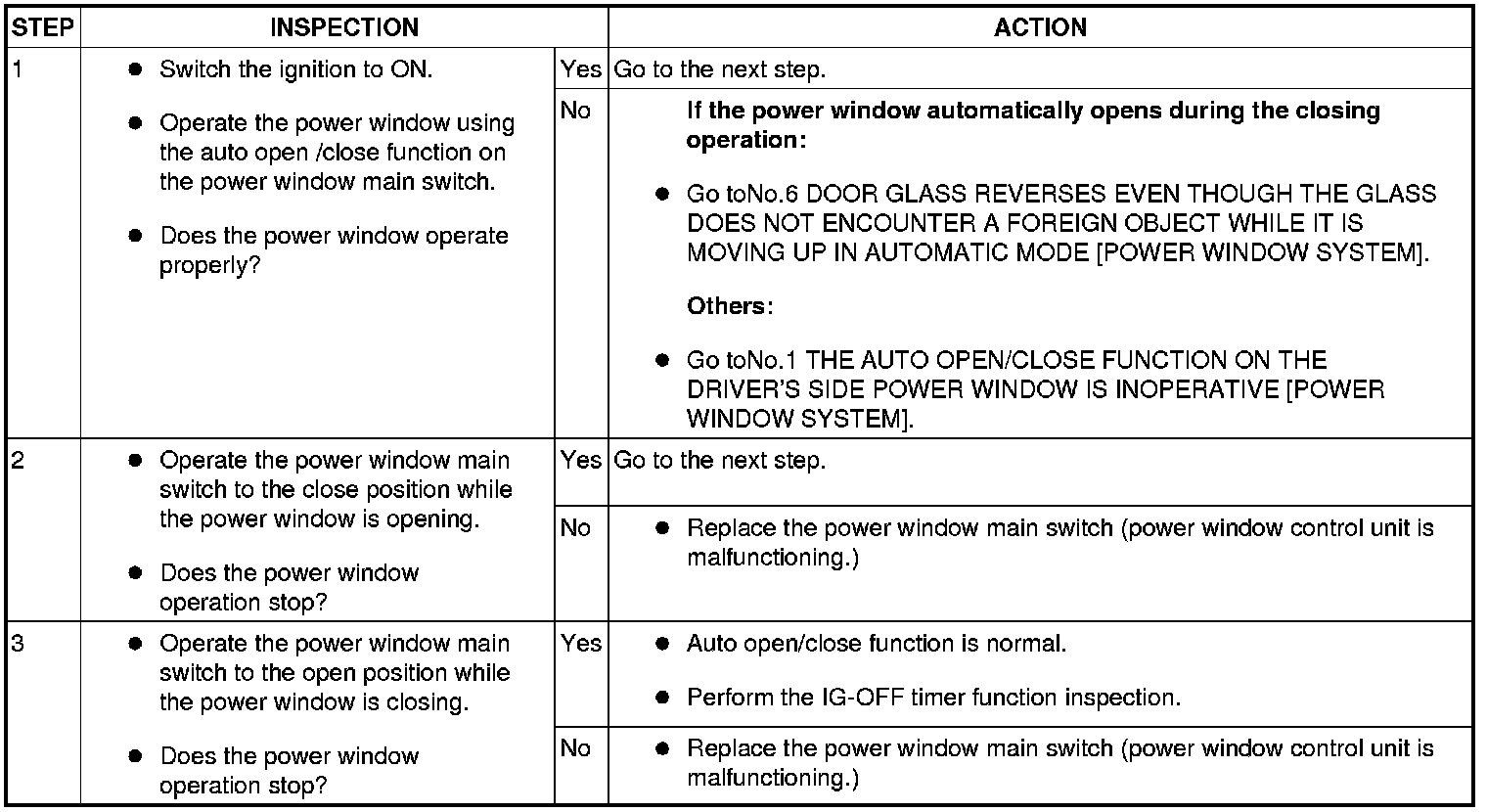

Auto Open/close Function (Driver's Side) Inspection

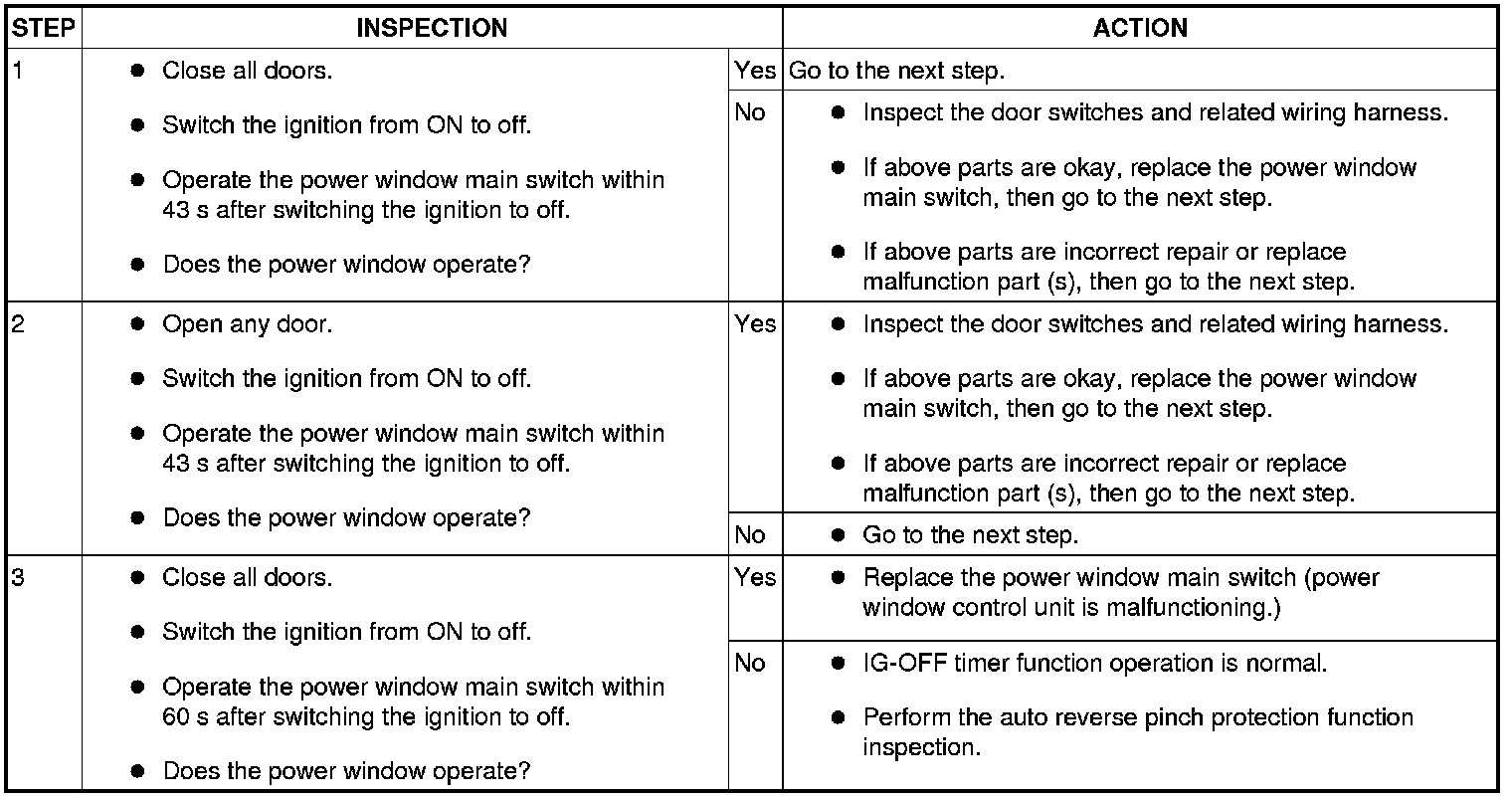

IG-OFF Timer Function Inspection

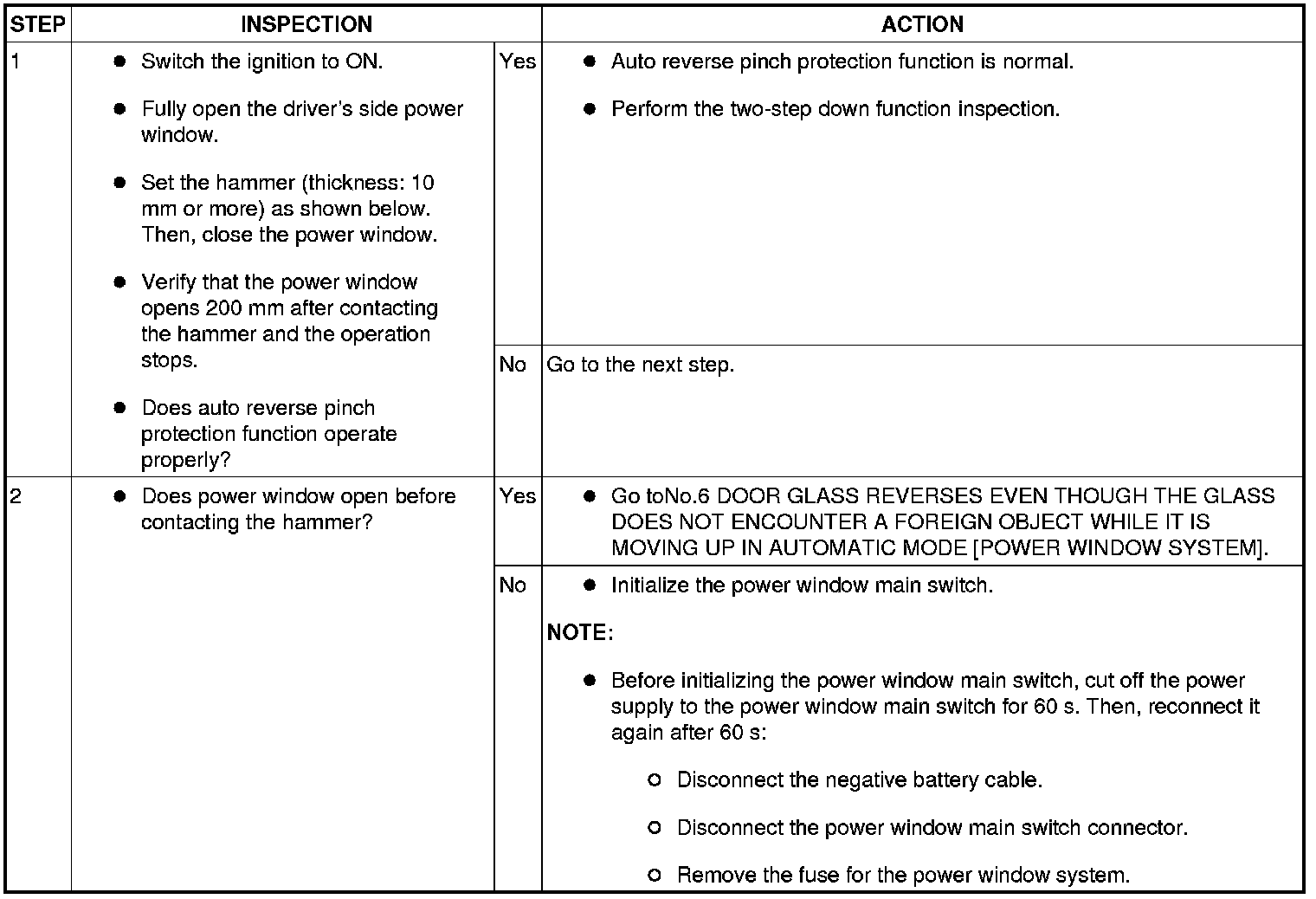

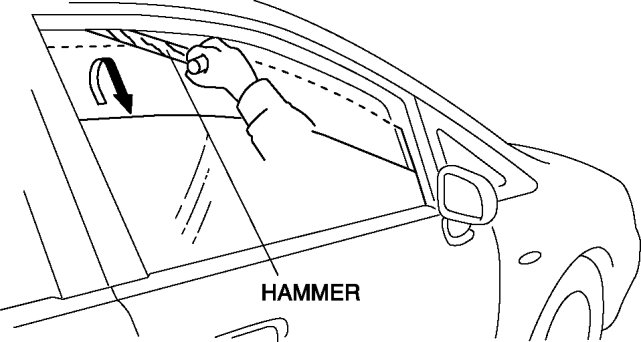

Auto Reverse Pinch Protection Function Inspection

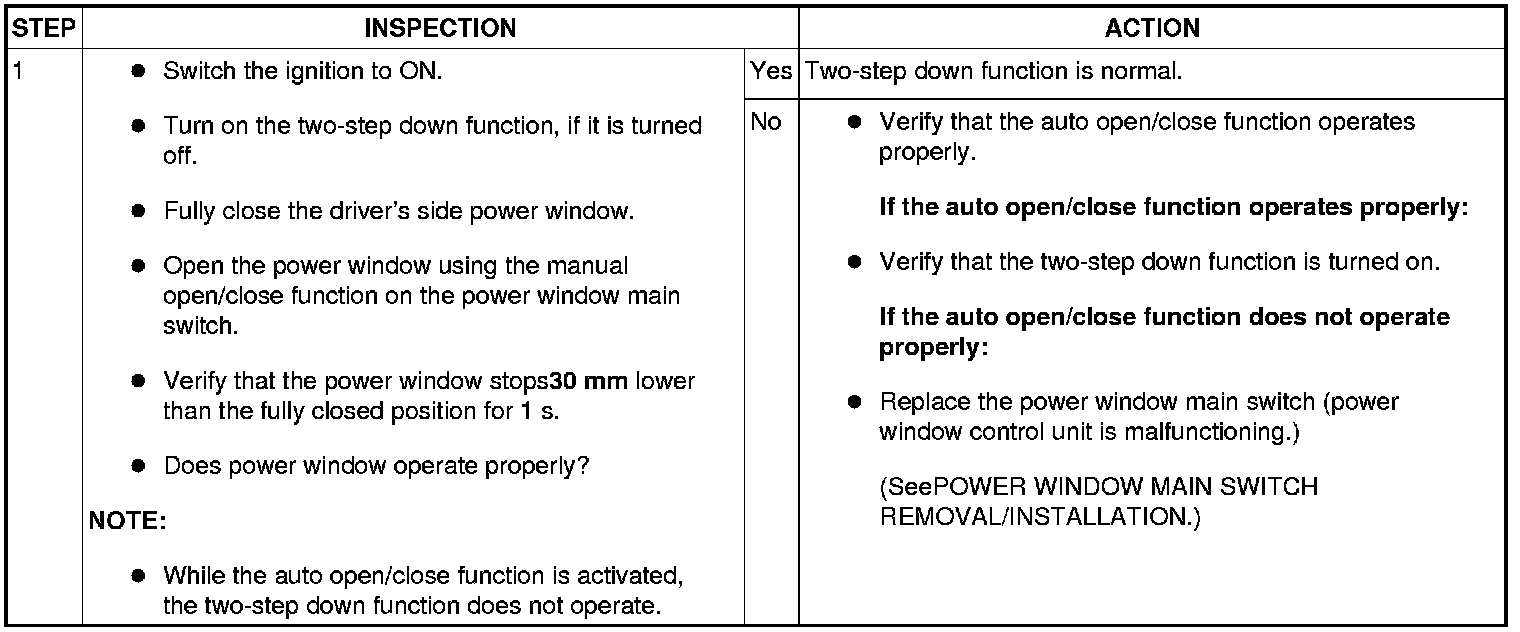

Two-step down function Inspection

NOTE:
- Before inspecting the two-step down function, make sure that the two-step down function is turned on.(if the two-step down function is turned off, the power window does not stop once.)
- The two-step down position is adjustable within20-100 mm {0.79-3.9 in}.
- The two-step down function does not operate while the IG-OFF timer function is activated.
