Steering Angle Sensor

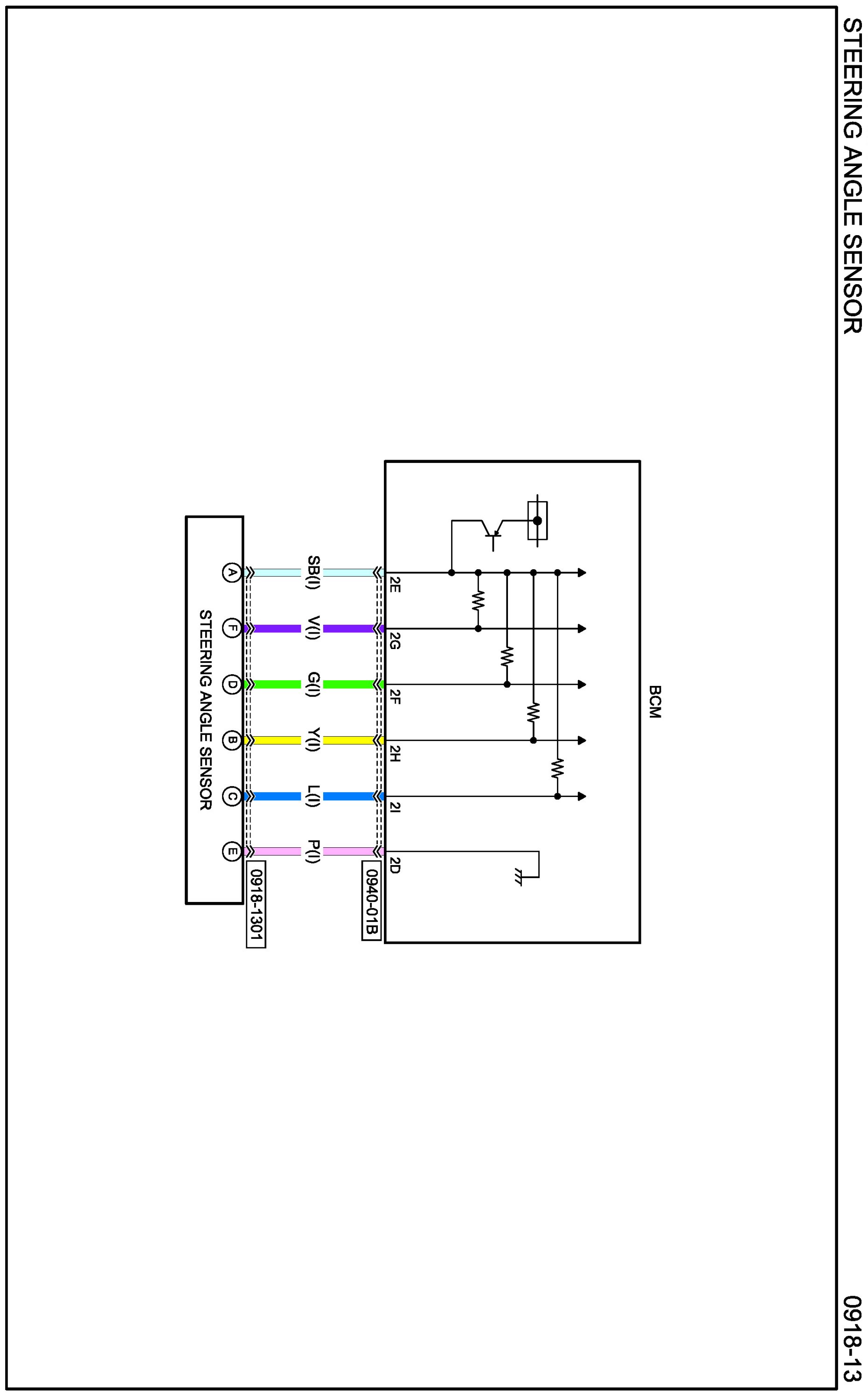

Diagram 0918-13:

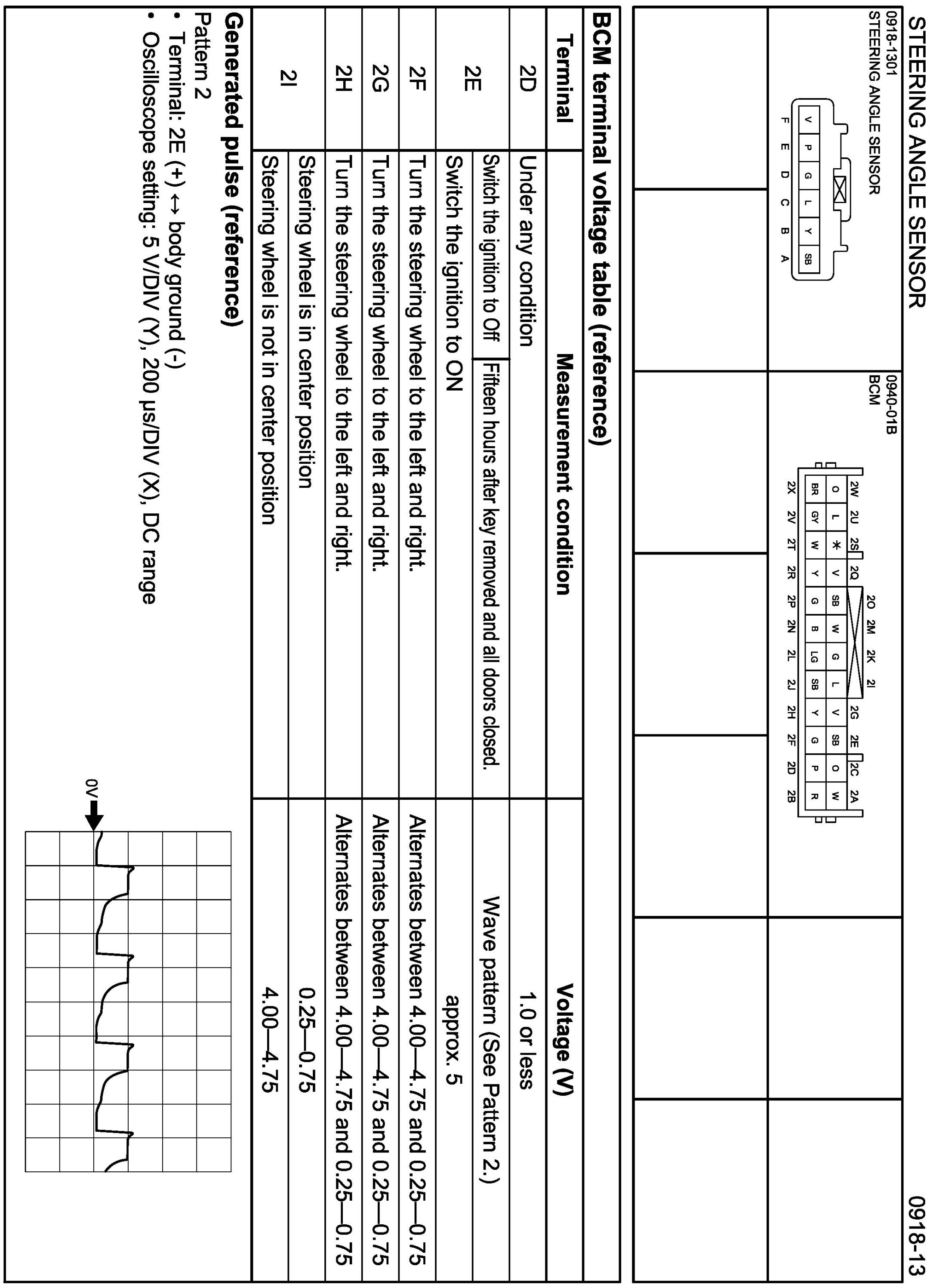

Connectors 0918-13:

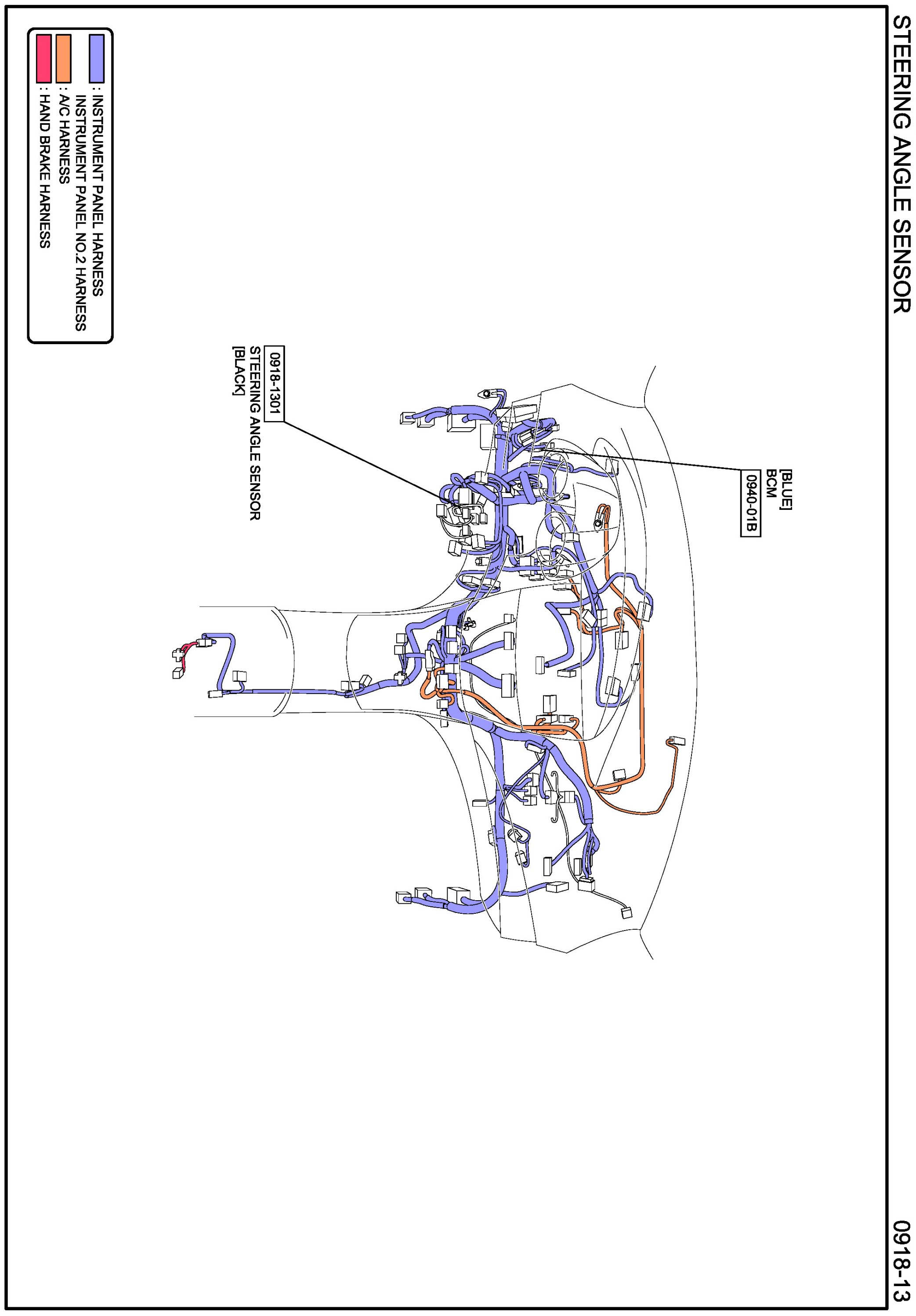

Routing View 0918-13:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
