1. Apply silicone sealant to the engine front cover as shown in the figure.

Caution:
^ Install the cylinder head cover within 10 min of applying the silicone sealant.
^ Silicone sealant is not need in area C as indicated below due to an existing. (With variable valve timing mechanism)
^ Make sure that there is no oil or dust on the seal side of oil pan.

Thickness
A: 2.2-3.2 mm (0.087-0.125 in)
B: 1.5-2.5 mm (0.059-0.098 in)

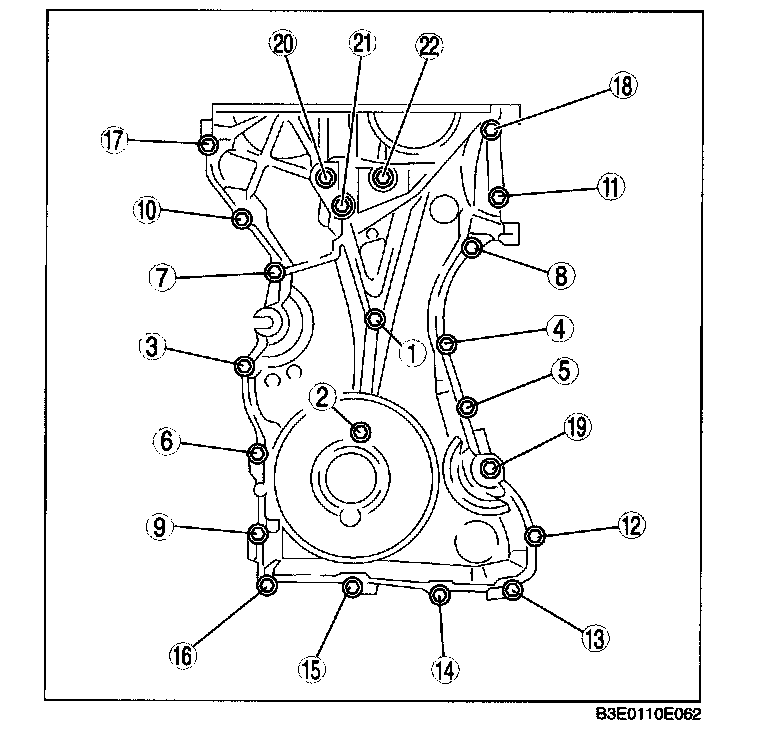

2. Install the cover bolts in the order as shown in the figure.
