Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [LF, L5]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the plug hole plate. Service and Repair

4. Remove the intake manifold. Service and Repair

5. Disconnect the KS connector.

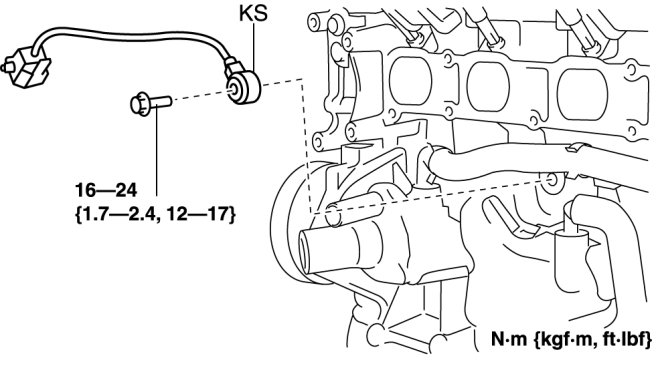

6. Remove the KS.






7. Install in the reverse order of removal.
