After Repair Procedure

AFTER REPAIR PROCEDURE [LF, L5]

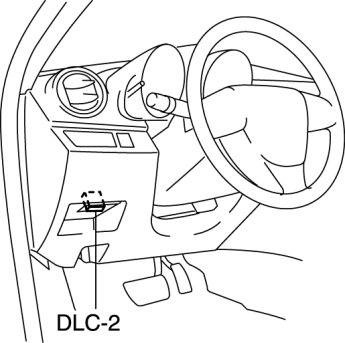

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Self Test".
- Select "Modules".
- Select "PCM".
- Select "Retrieve CMDTCs".

- When using the PDS (Pocket PC)

- Select "Module Tests".
- Select "PCM".
- Select "Self Test".
- Select "Retrieve CMDTCs".

3. Verify the DTC according to the directions on the M-MDS screen.

4. Press the clear button on the DTC screen to clear the DTC.

5. Verify that no DTCs are displayed.
