Troubleshooting Index




FOREWORD [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

NOTE:
- The car-navigation unit indicated in this section refers to the car-navigation unit with an integrated multi information display.

Troubleshooting Index

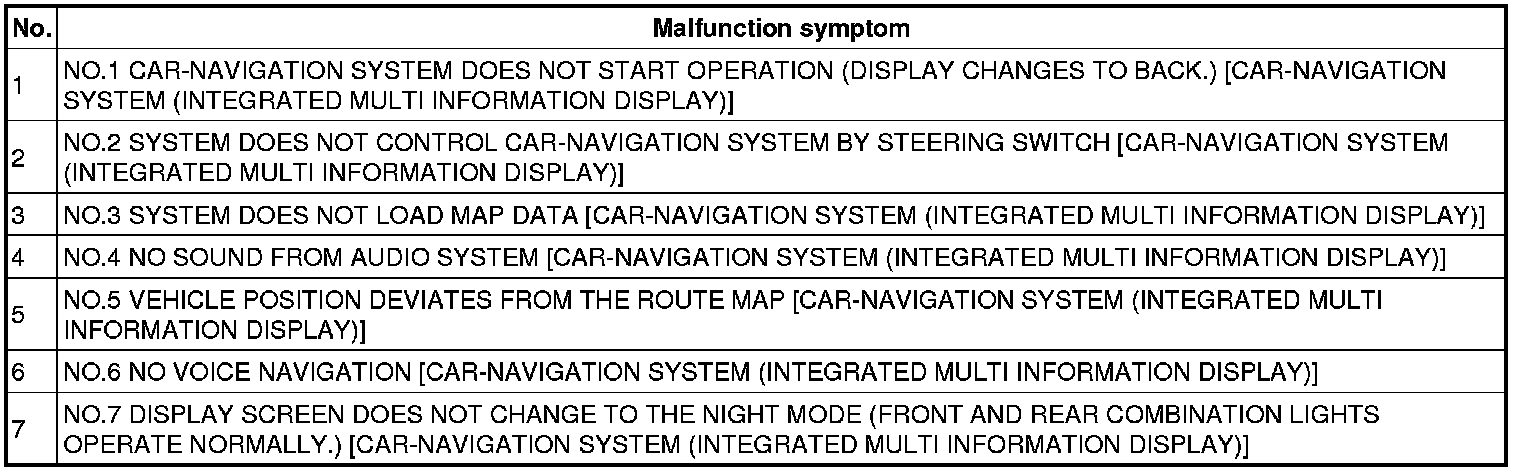

Quick diagnostic chart

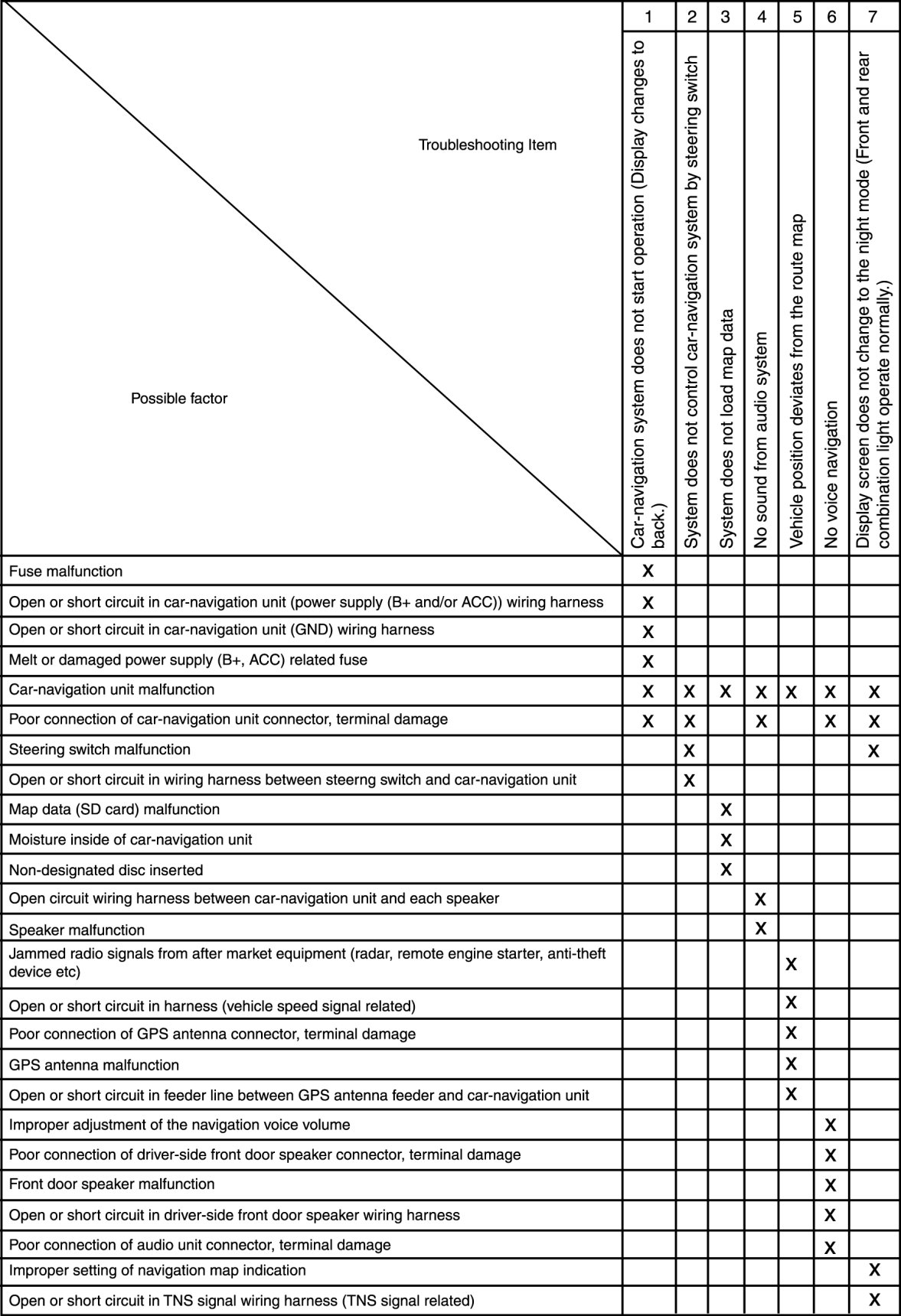

Quick Diagnostic Chart:
