Keyless Control Module Removal/Installation

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

1. If the keyless control module is replaced, always perform the following procedure.

- Vehicles with immobilizer system

- Keyless Control Module Configuration Keyless Control Module Configuration
- Immobilizer System-related Parts Programming [No.4 Programming Procedure Due to Keyless Control Module Replacement] Advanced Keyless Entry and Push Button Start System

- Vehicles without immobilizer system

- Keyless Control Module Configuration Keyless Control Module Configuration
- Advanced Key Id Code Registration Advanced Key ID Code Registration
- Steering Lock Unit Id Code Registration Testing and Inspection

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Grove compartment Service and Repair

d. Passenger-side lower panel Lower Panel Removal/Installation

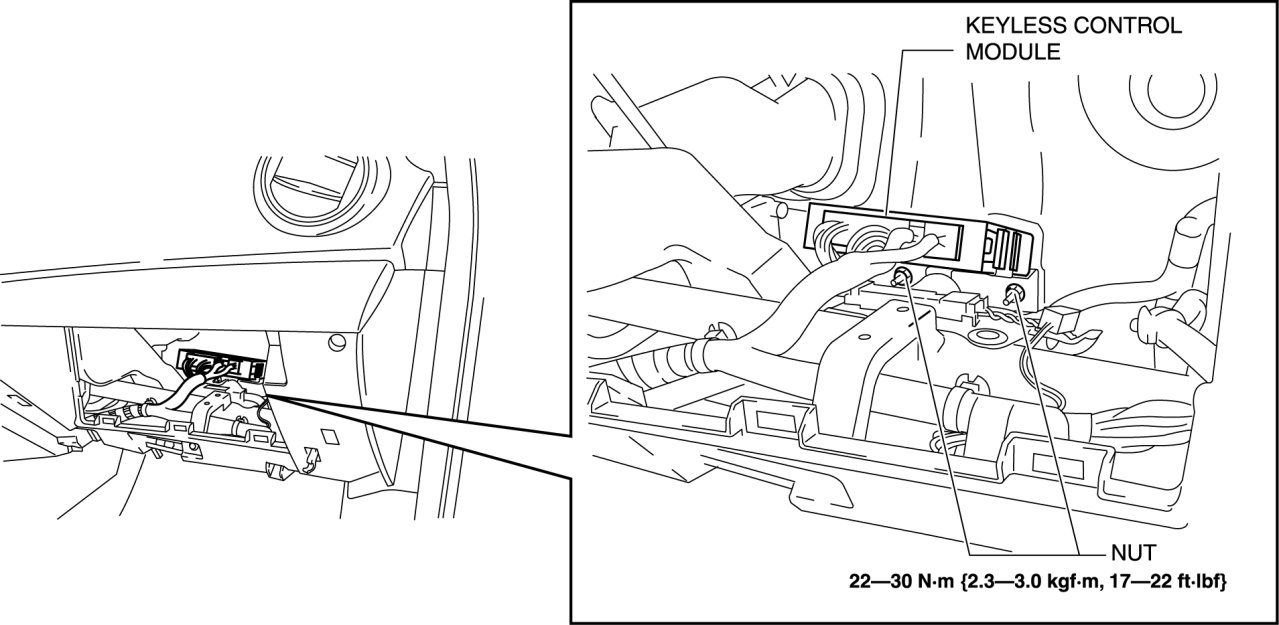

4. Remove in the nuts.

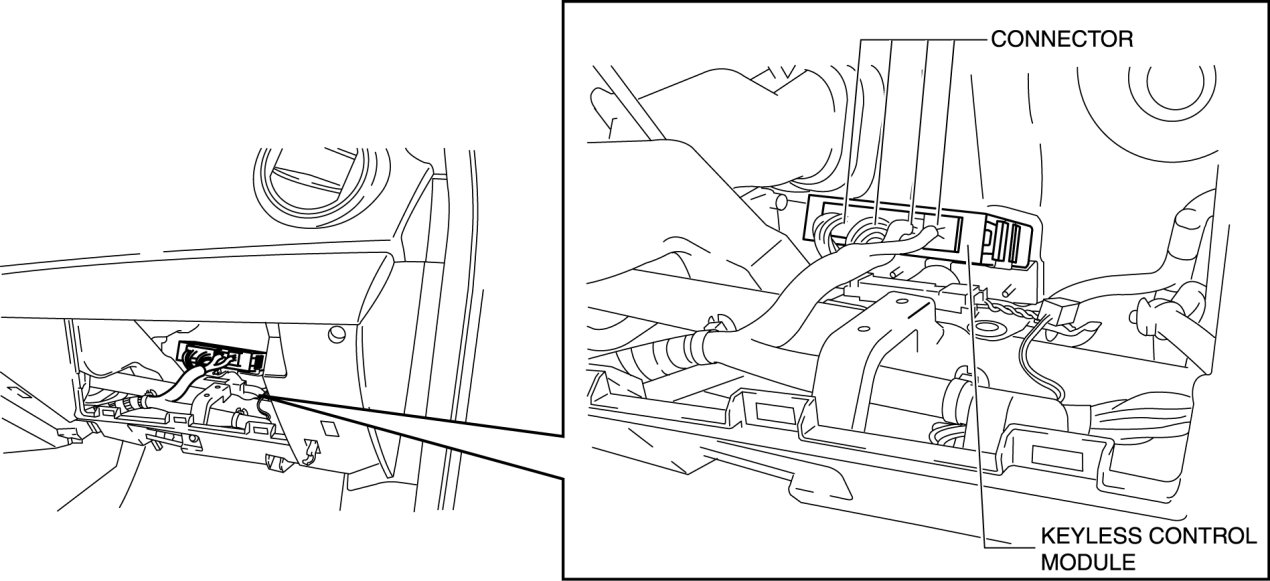

5. Disconnect the connector.






6. Remove the Keyless control module.

7. Install in the reverse order of removal.
