Door Lock System (Without Advanced Keyless Entry and Push Button Start System, TPMS)

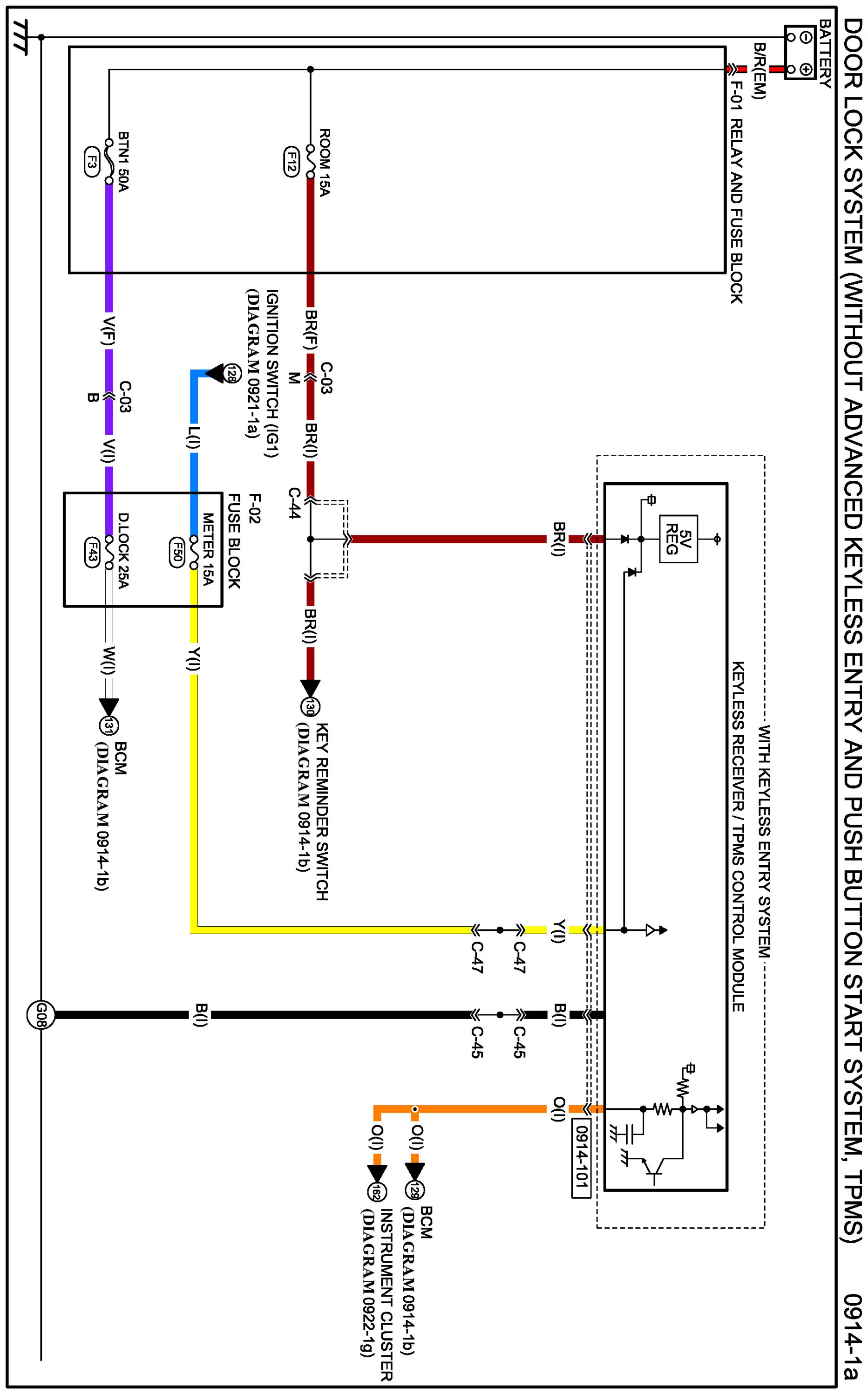

Diagram 0914-1a:

Connectors 0914-1a:

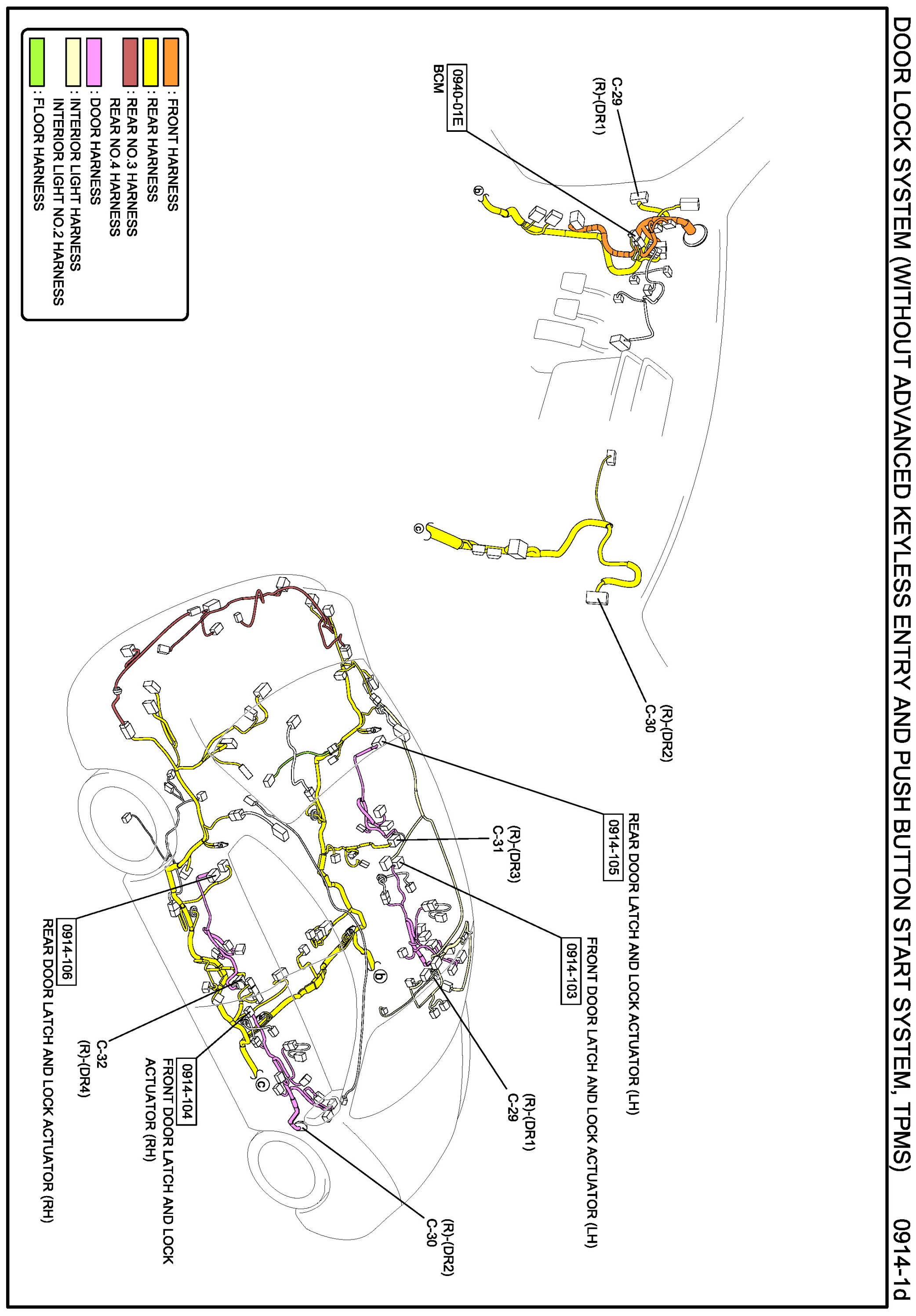

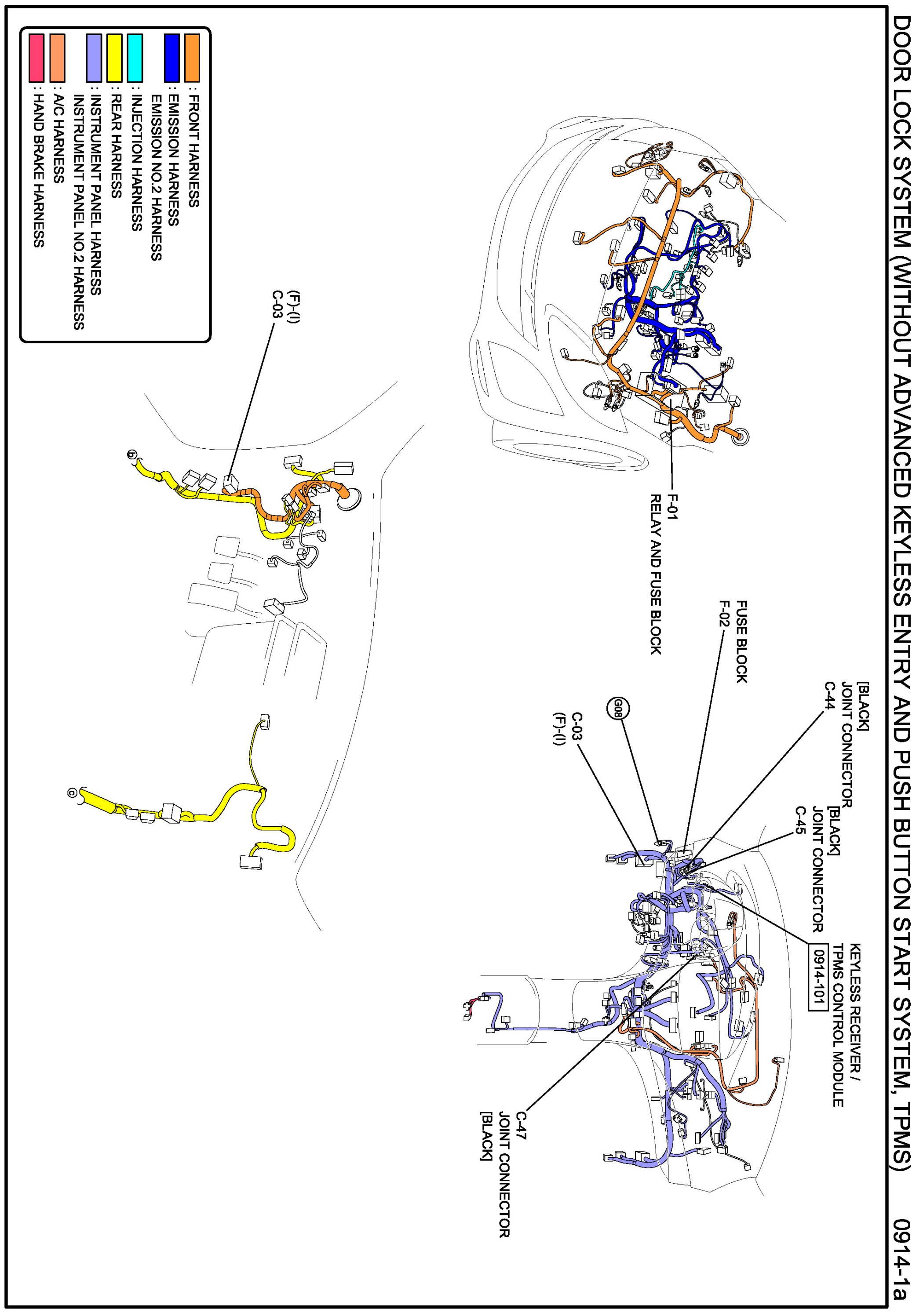

Routing View 0914-1a:

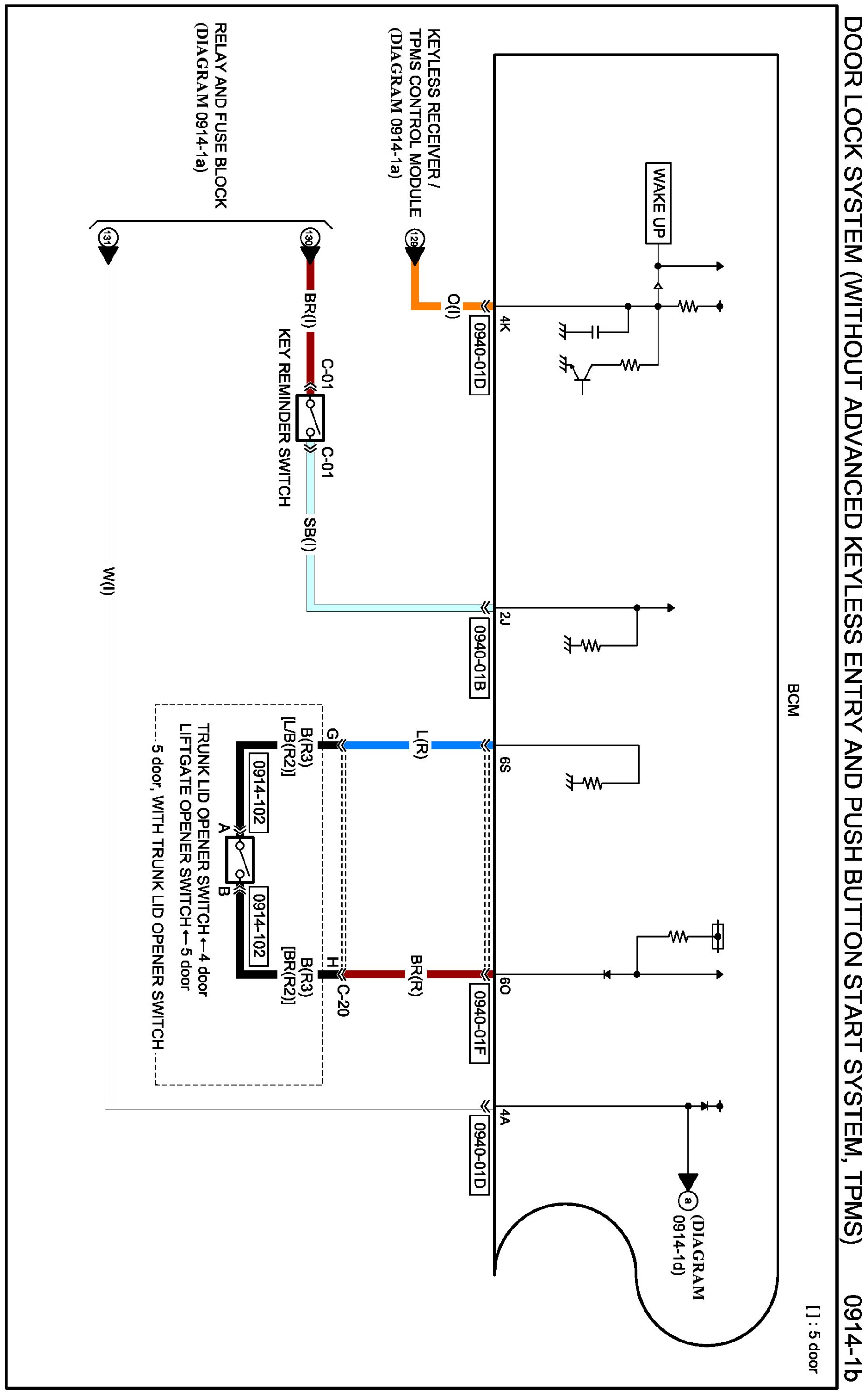

Diagram 0914-1b:

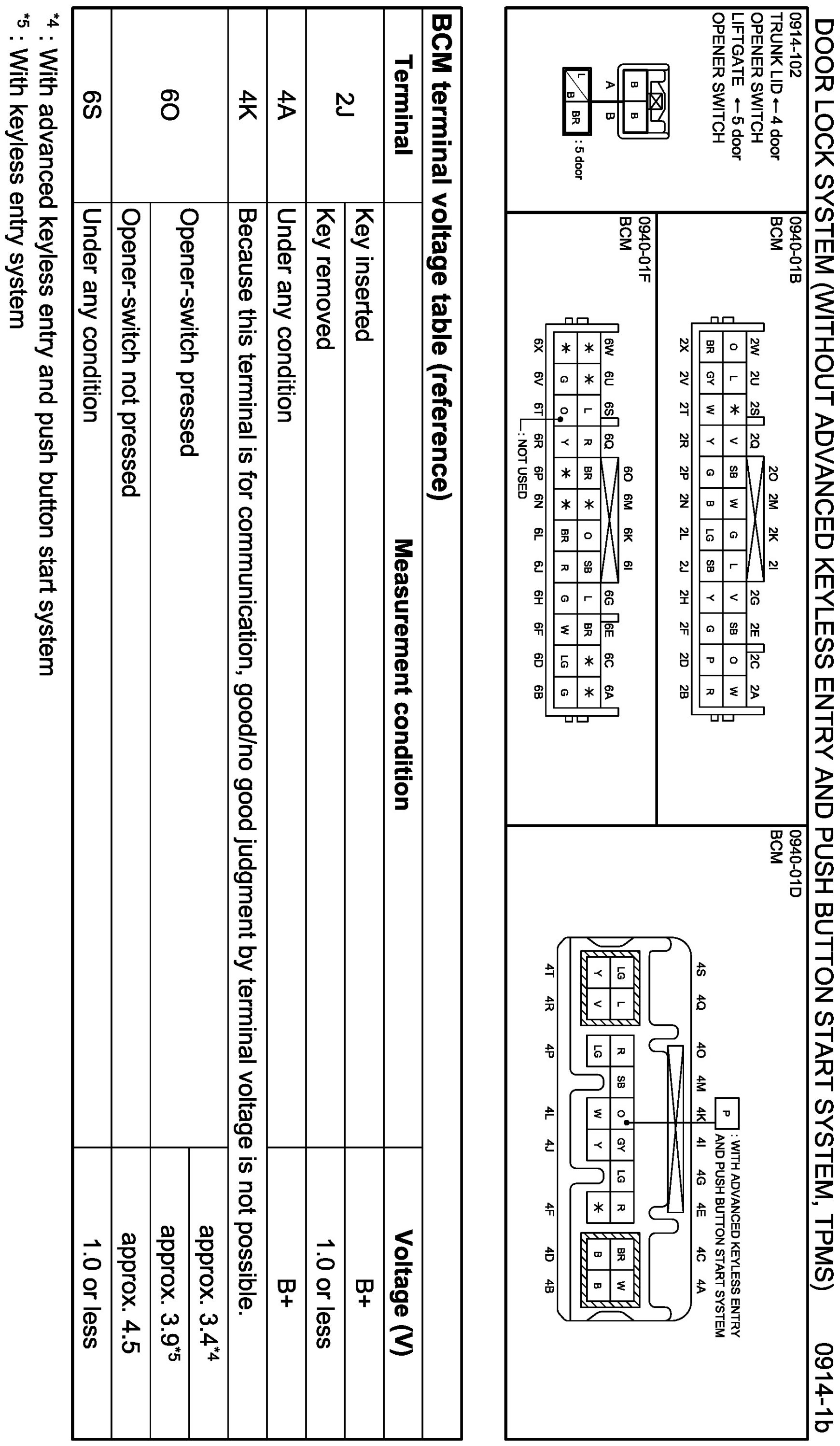

Connectors 0914-1b:

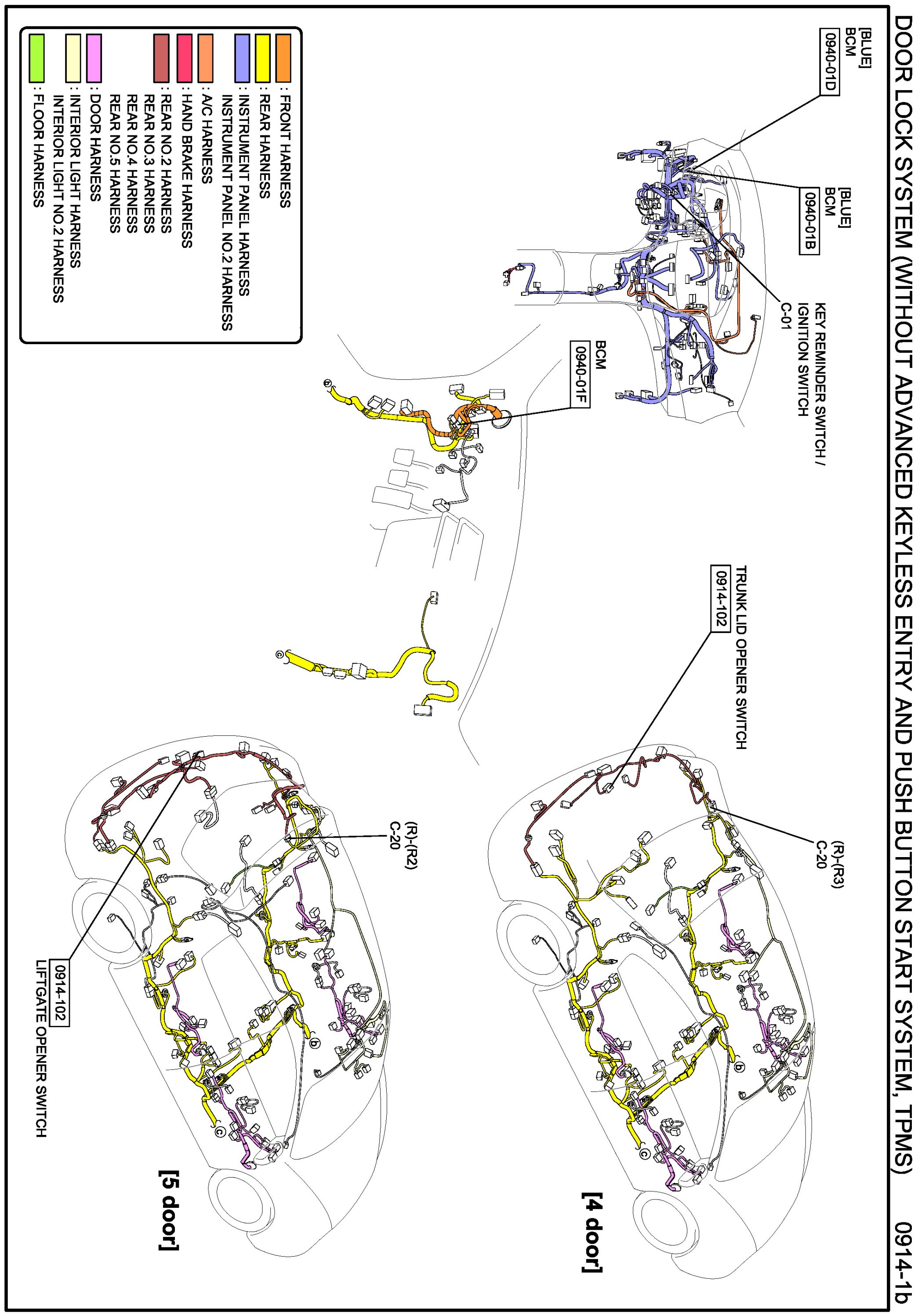

Routing View 0914-1b:

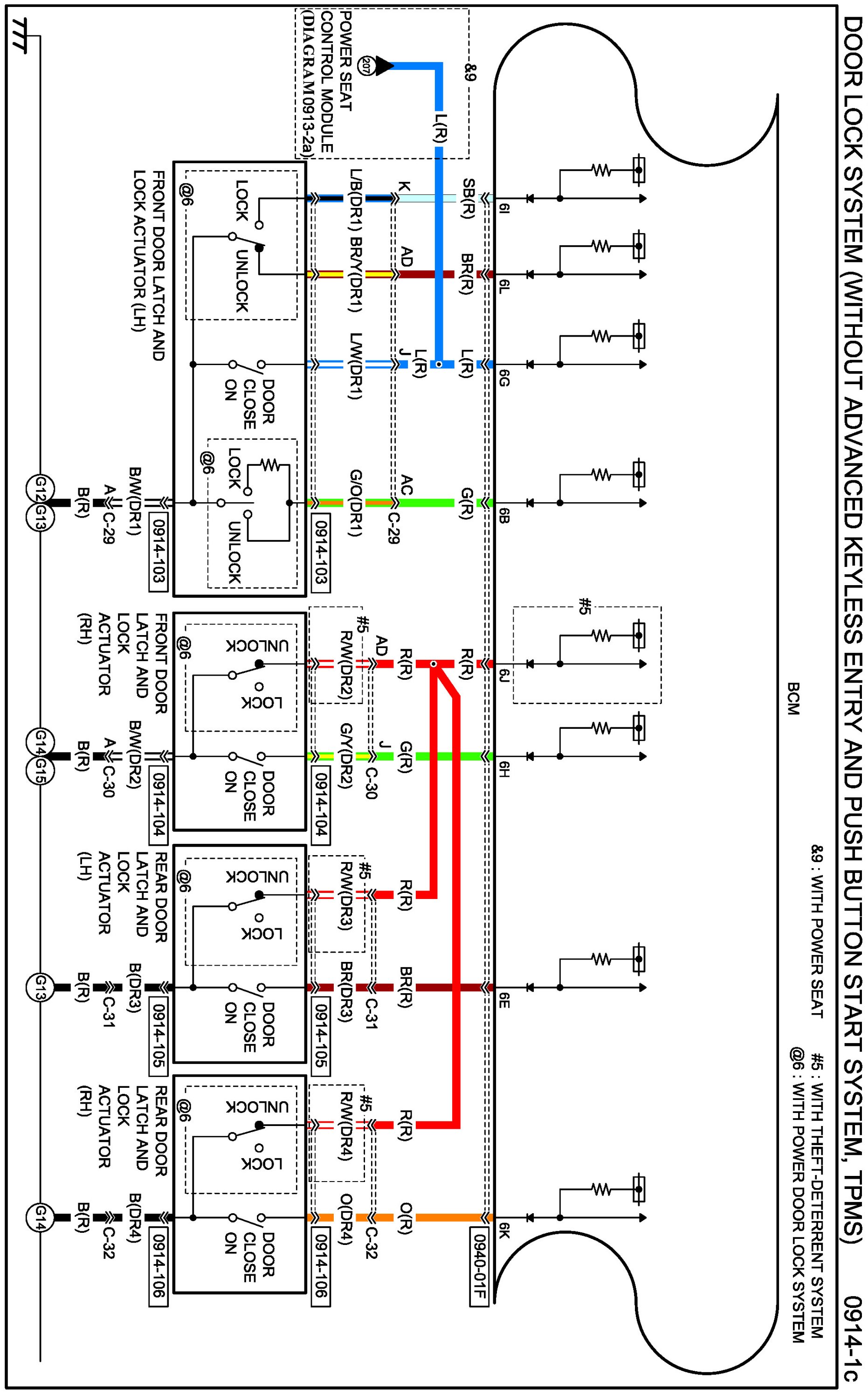

Diagram 0914-1c:

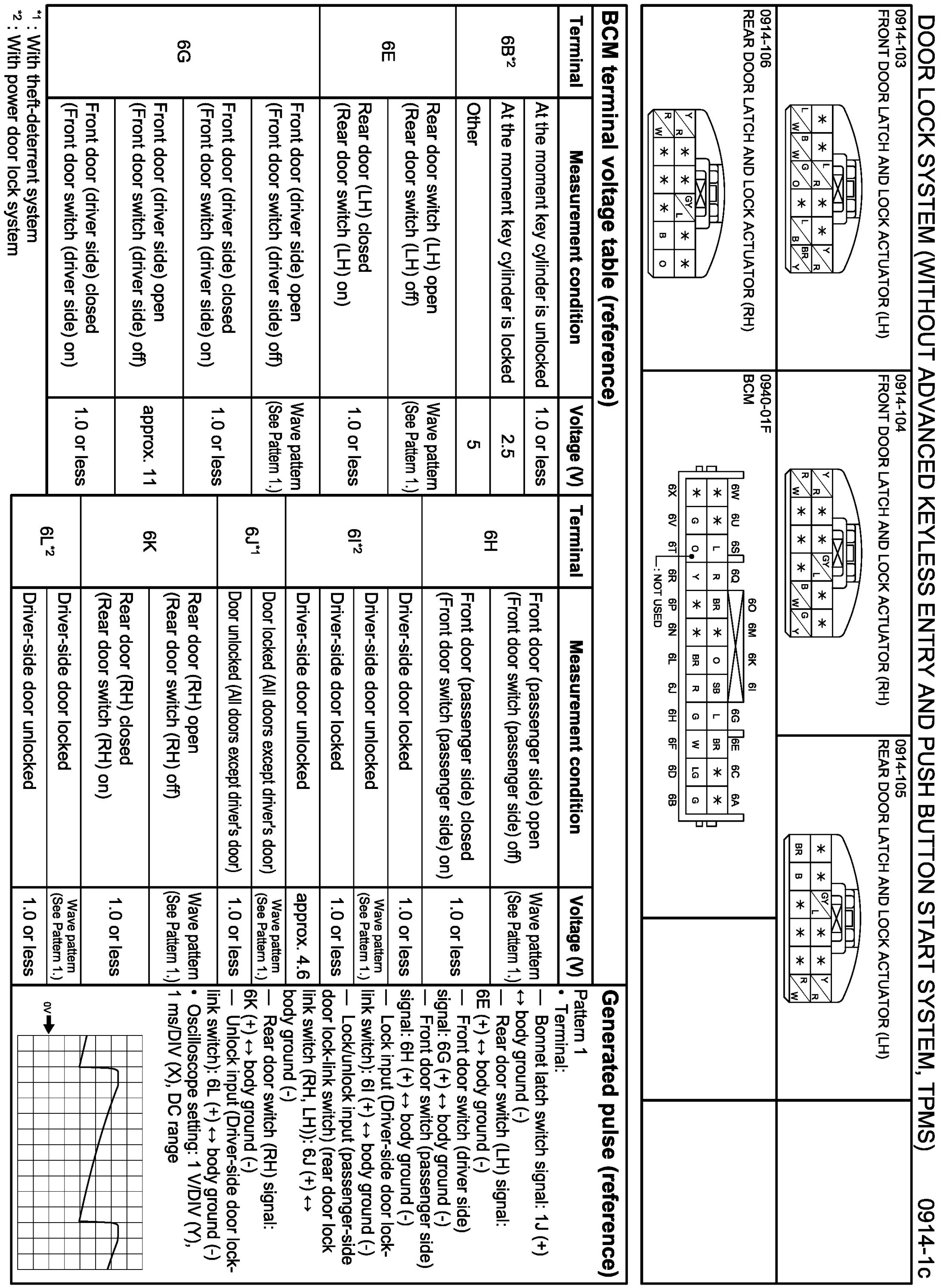

Connectors 0914-1c:

Routing View 0914-1c:

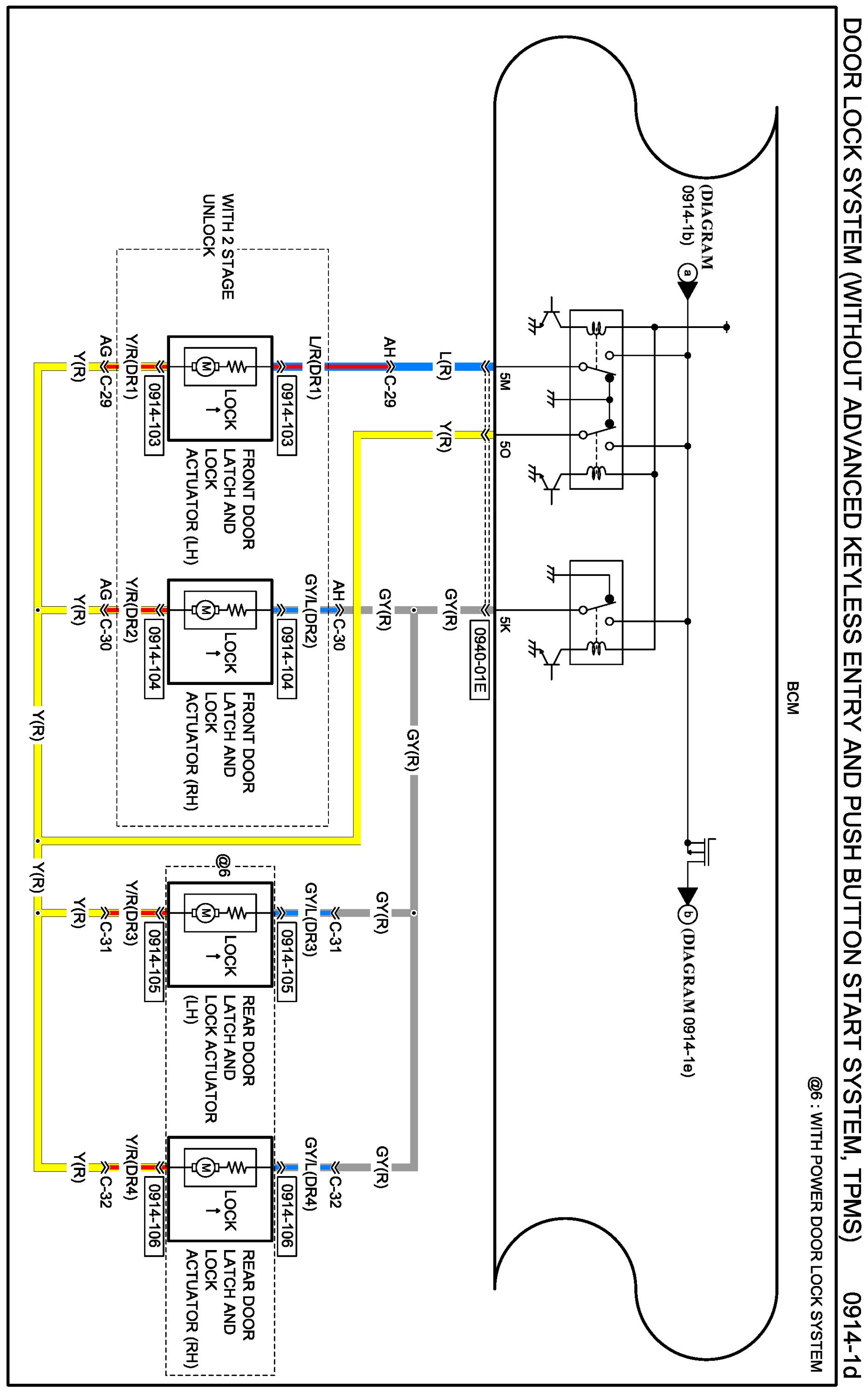

Diagram 0914-1d:

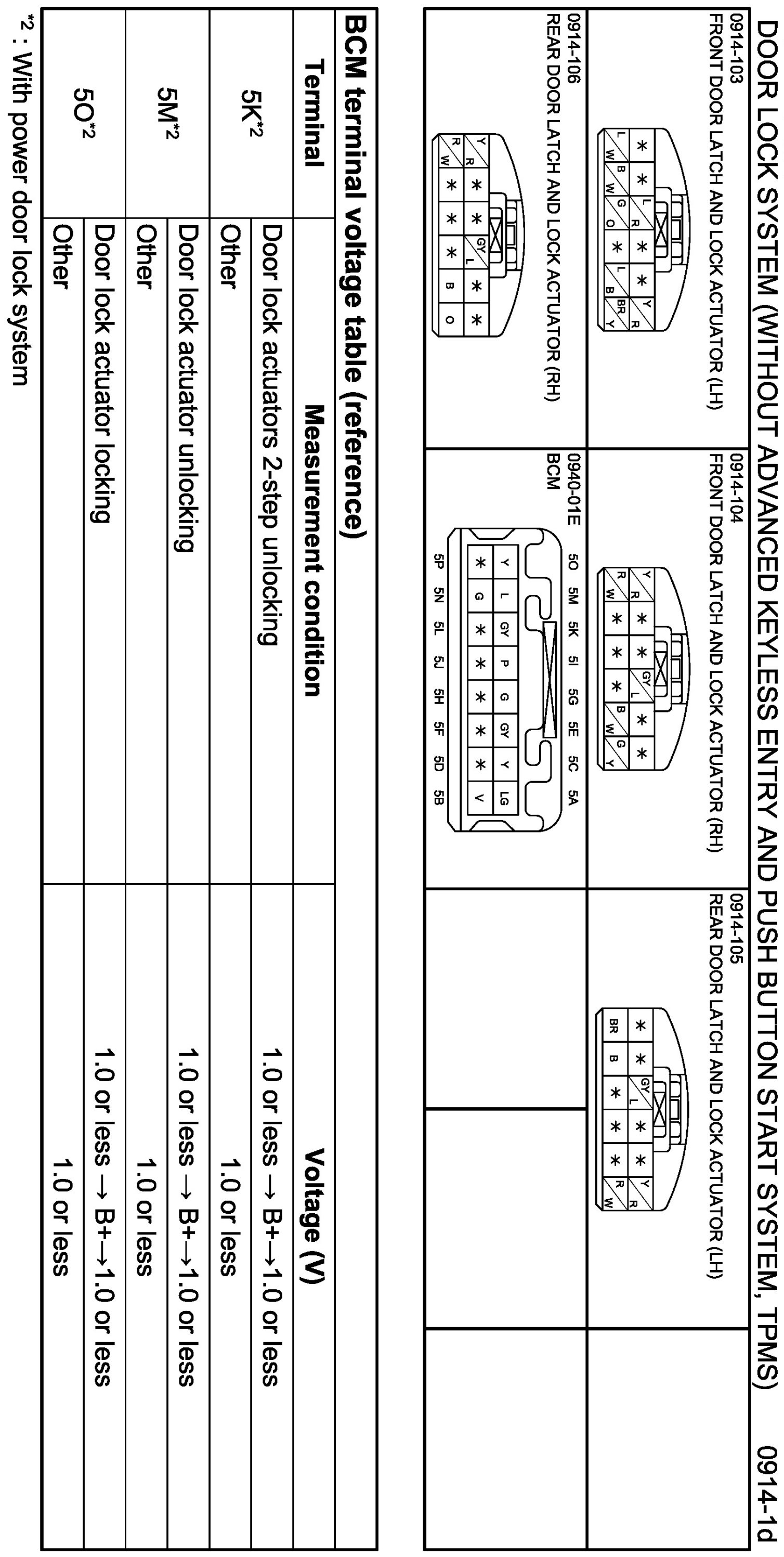

Connectors 0914-1d:

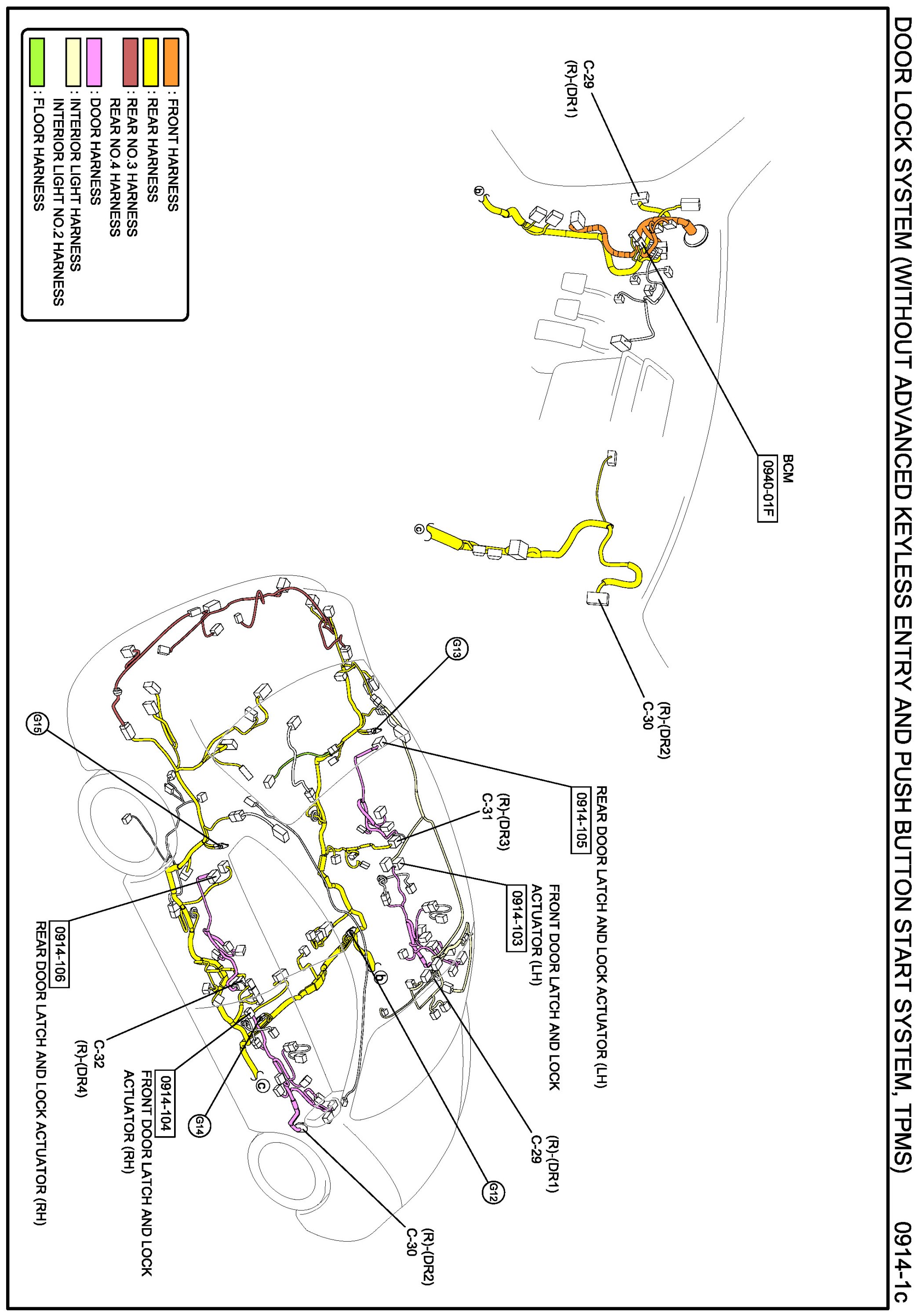

Routing View 0914-1d:

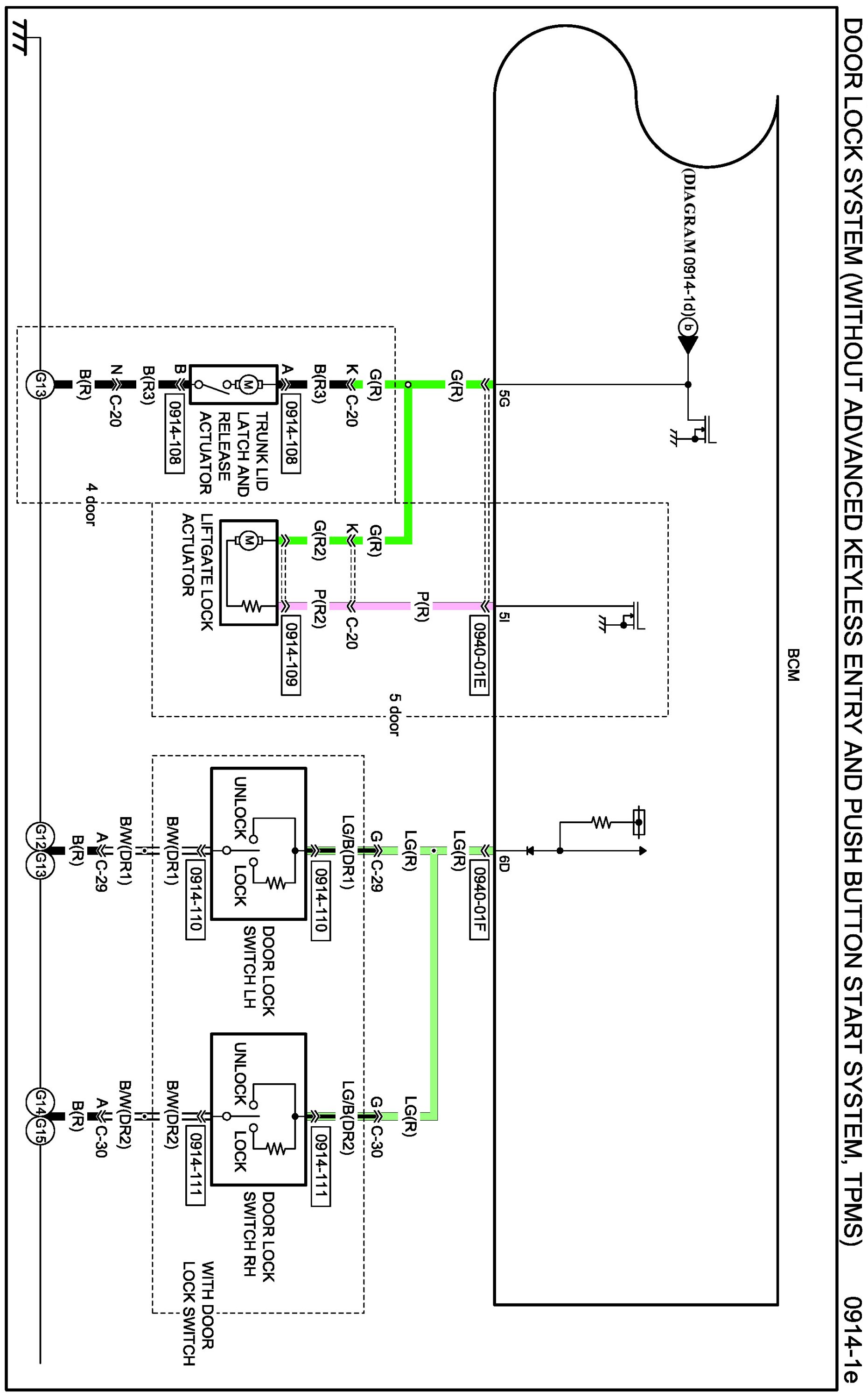

Diagram 0914-1e:

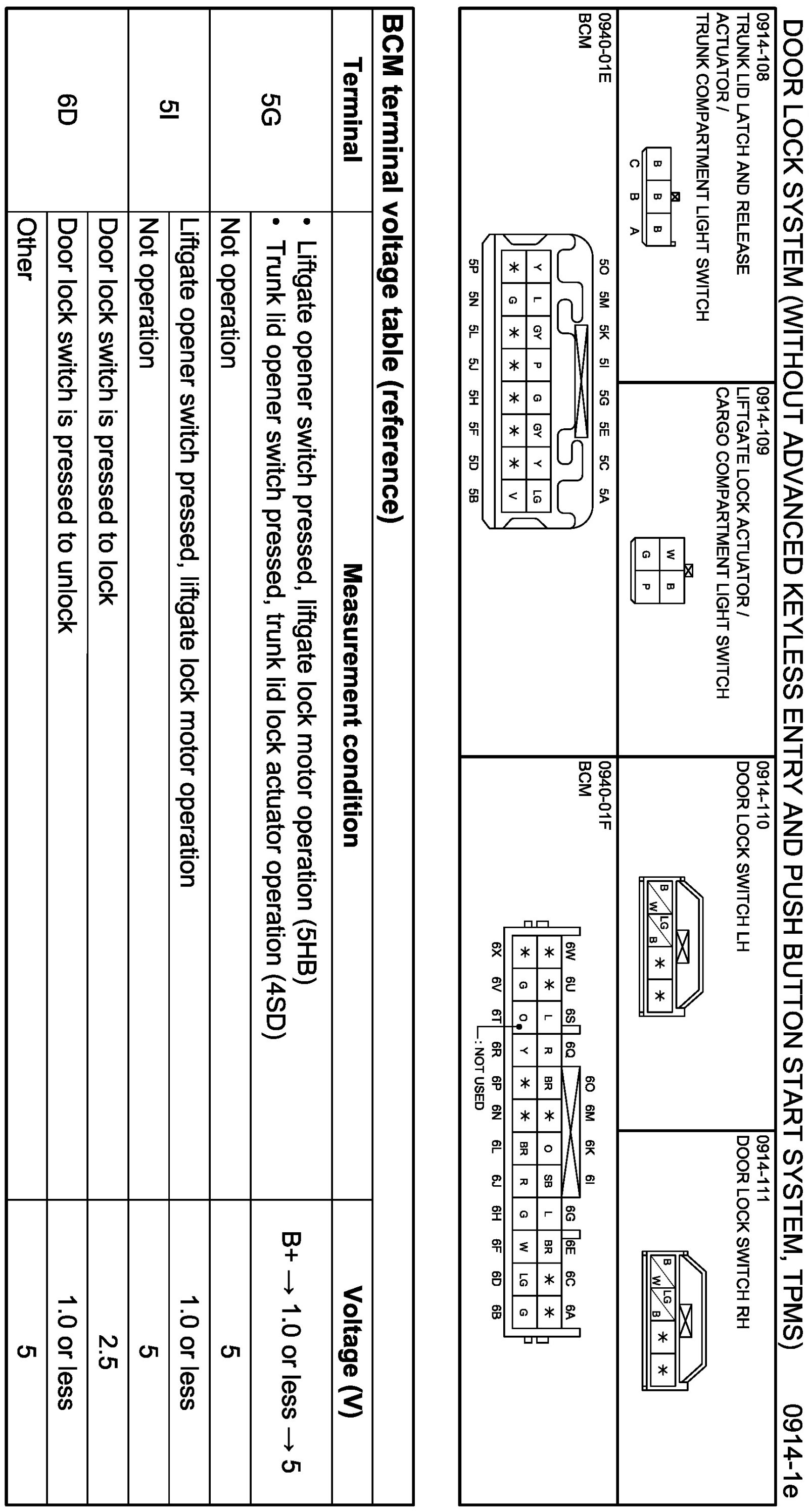

Connectors 0914-1e:

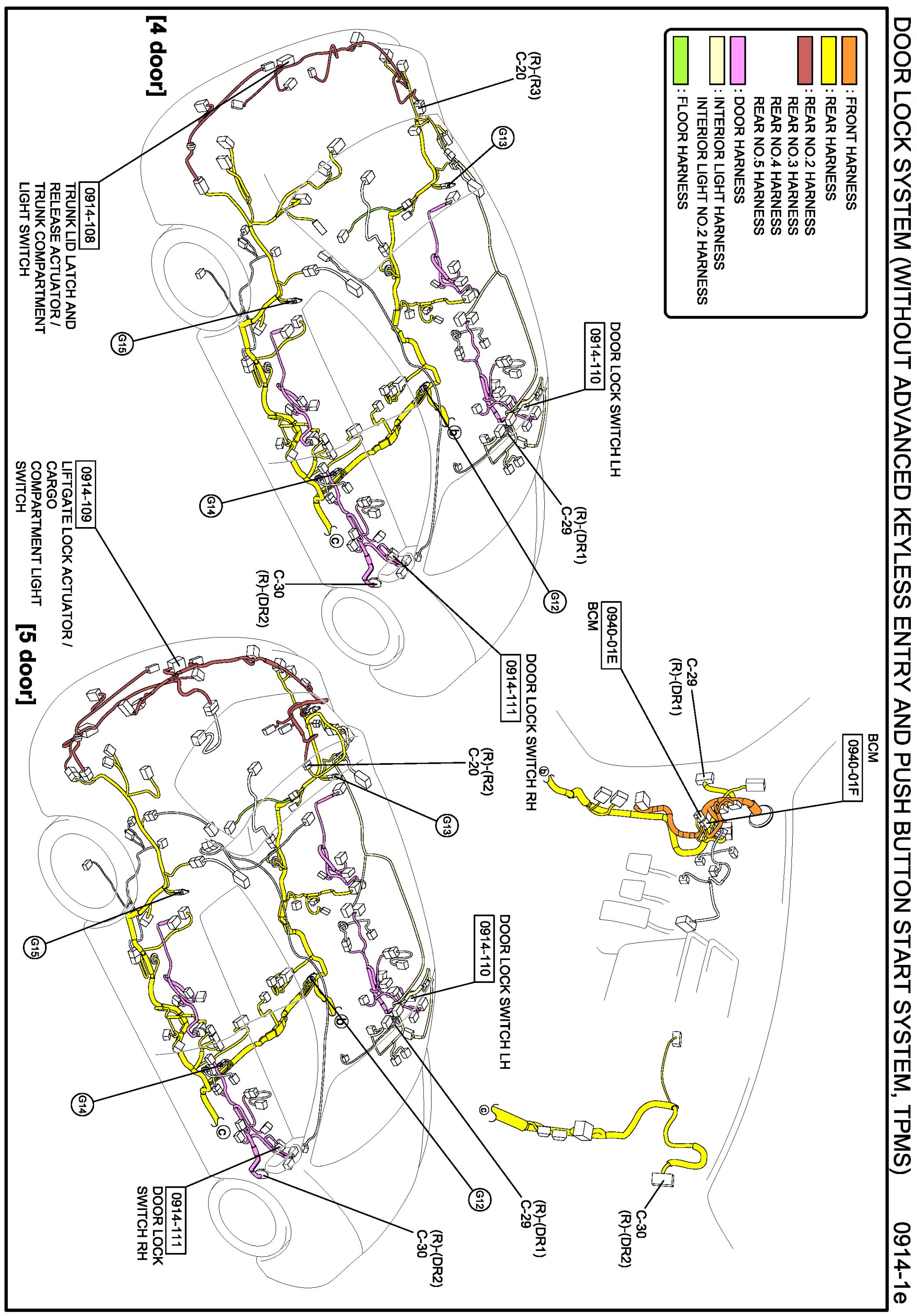

Routing View 0914-1e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
