Relay Inspection

RELAY INSPECTION

Relay Type

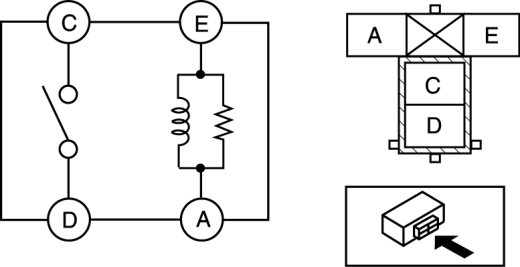

Type A

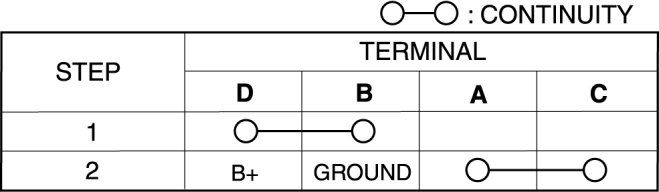

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.

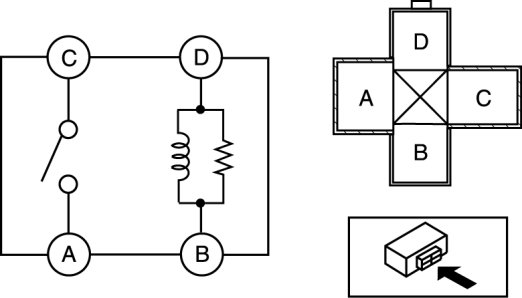

Type B

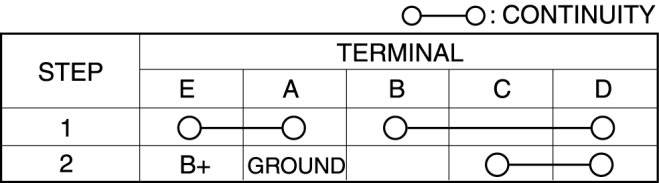

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.

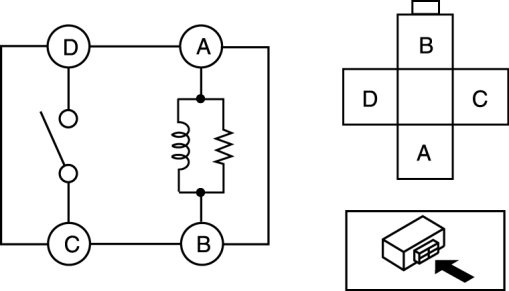

Type C

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.

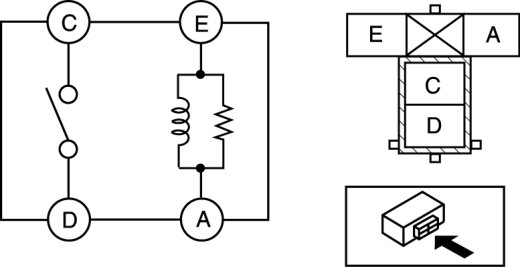

Type D

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.

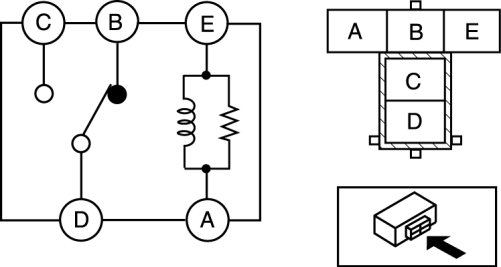

Type E

1. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the relay.
