Emission System Diagram




EMISSION SYSTEM DIAGRAM [LF, L5]

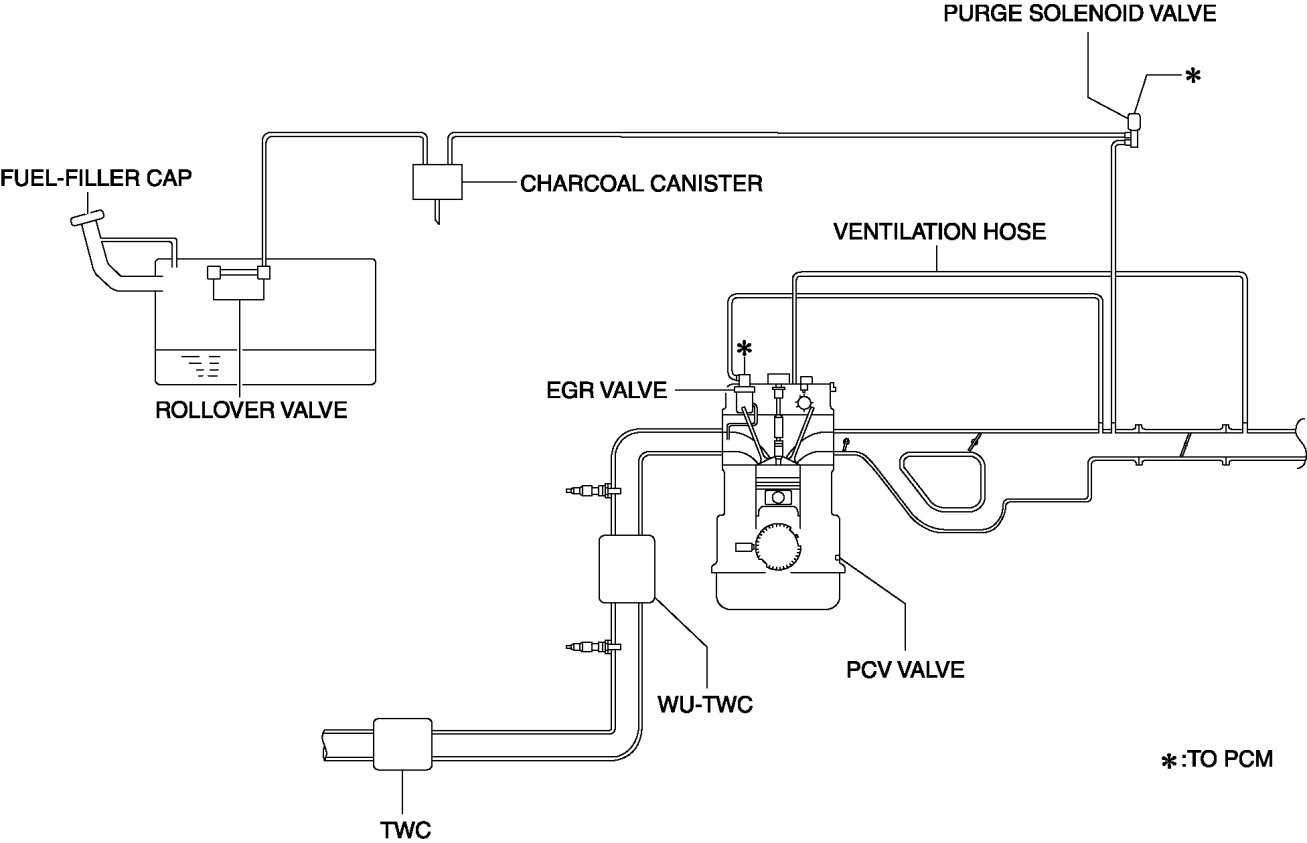

Fuel filter (high-pressure) is a built-in type in fuel pump unit

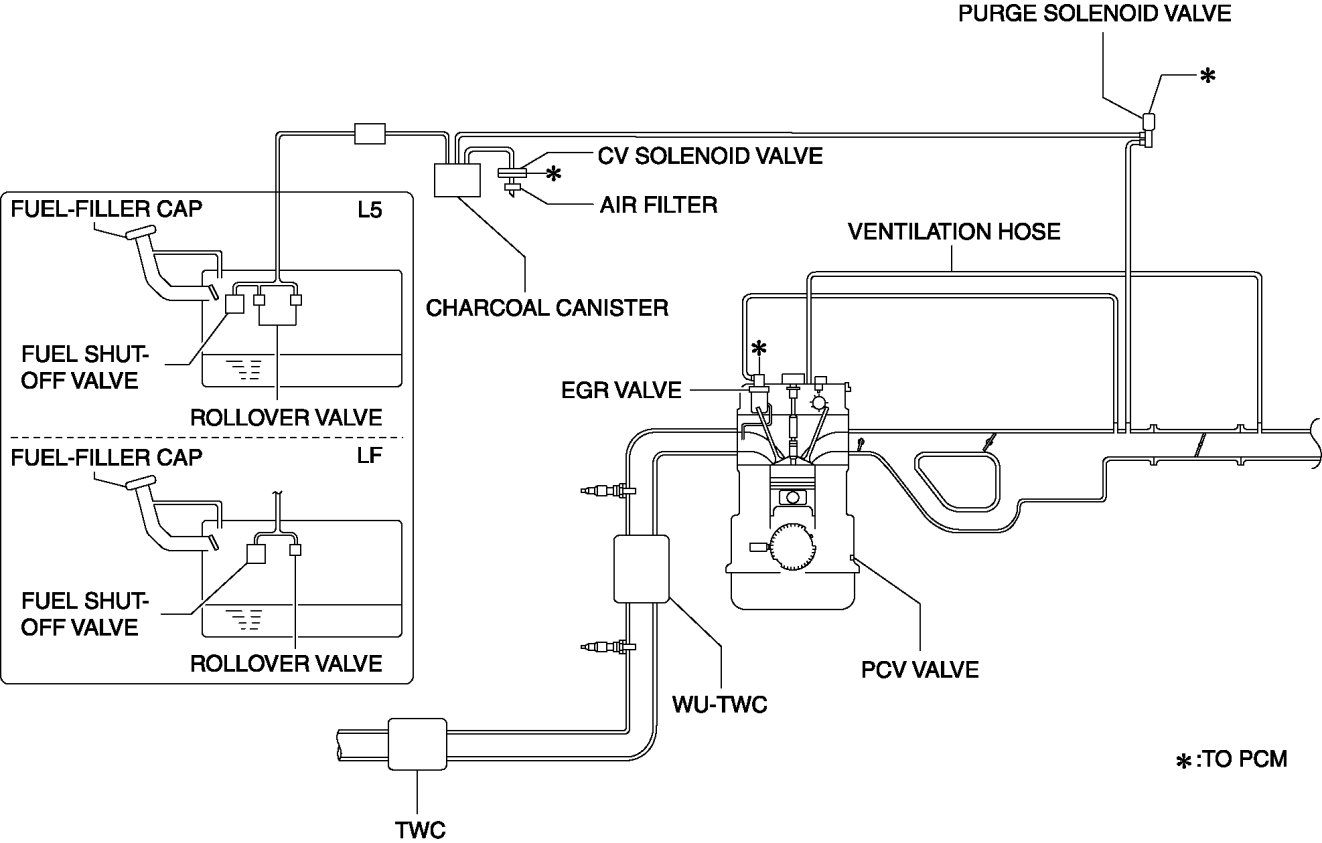

Fuel filter (high-pressure) is not a built-in type in fuel pump unit
