Alignment







FRONT WHEEL ALIGNMENT

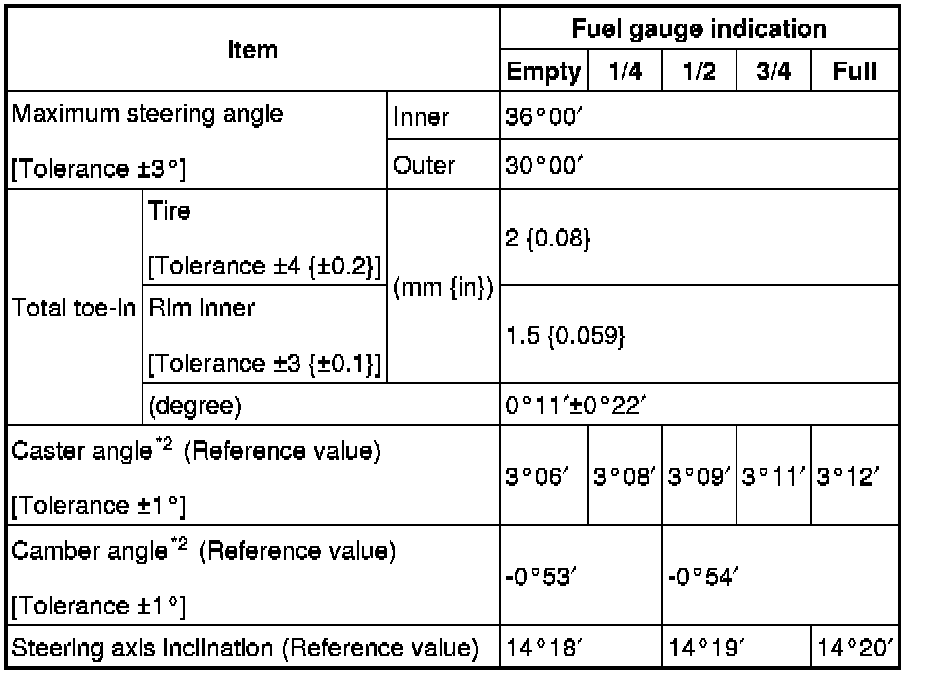

Front wheel alignment (Unloaded)*1 [LF, L5]





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

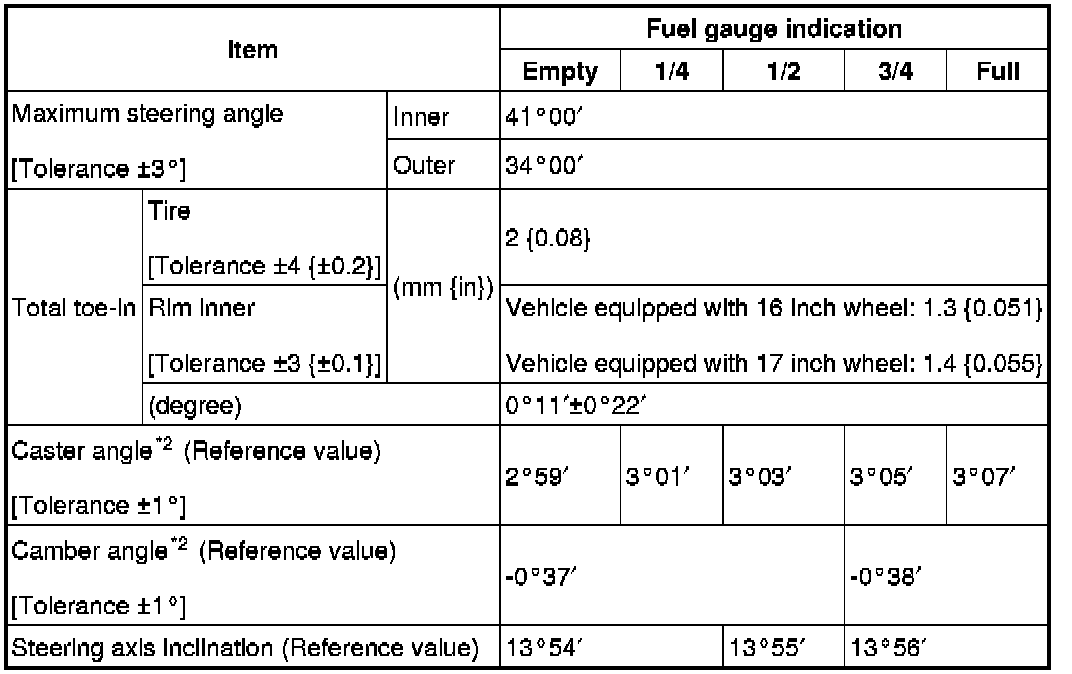

Front wheel alignment (Unloaded)*1 [L3 WITH TC]





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

REAR WHEEL ALIGNMENT

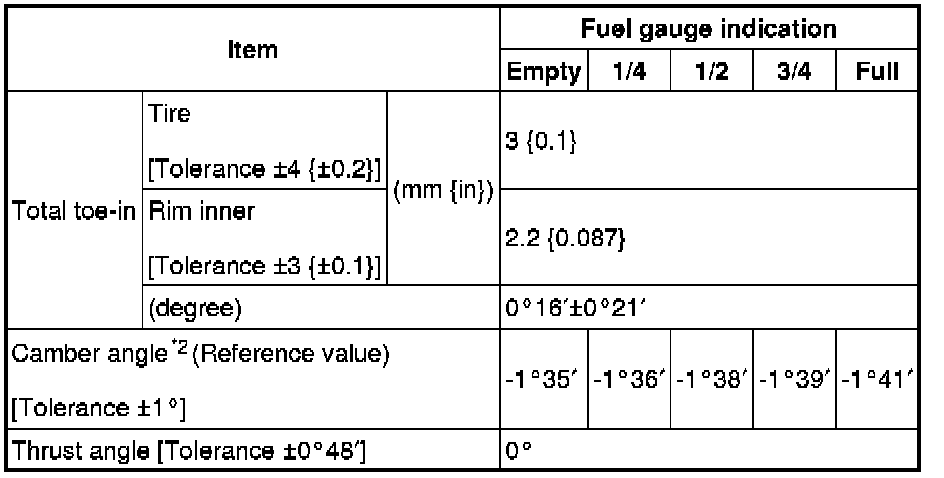

Rear wheel alignment (Unloaded)*1 [LF, L5]





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

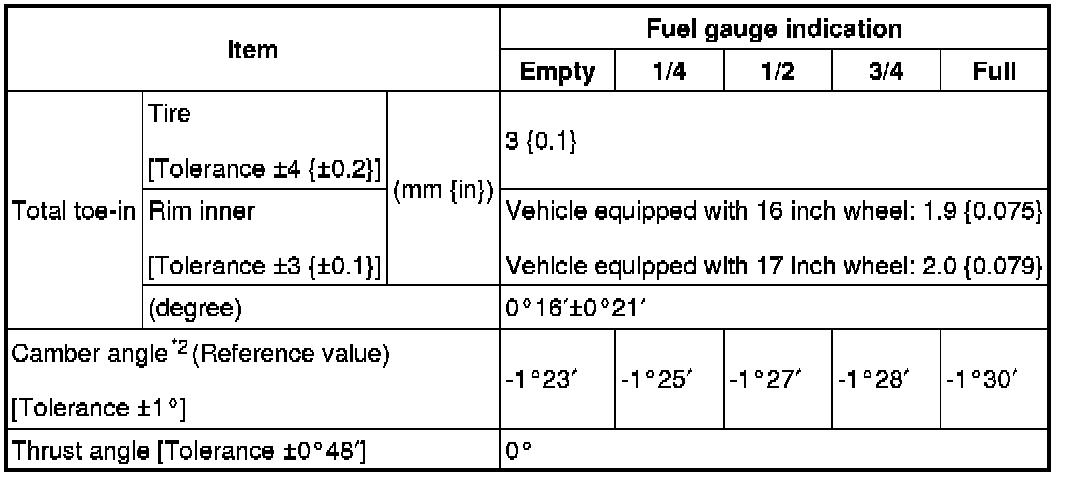

Rear wheel alignment (Unloaded)*1 [L3 WITH TC]





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
