Engine Service Technical Data L5

ENGINE TECHNICAL DATA

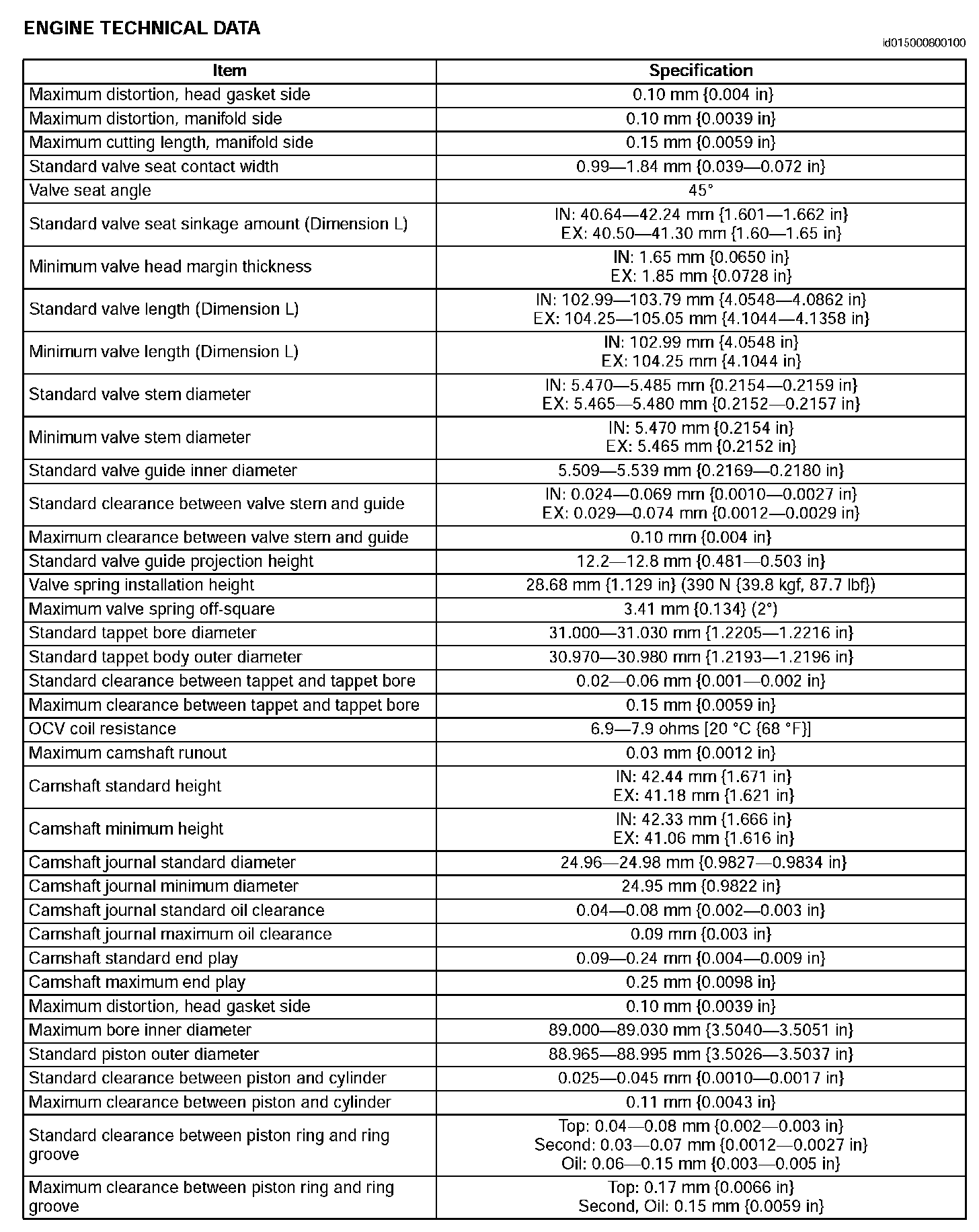

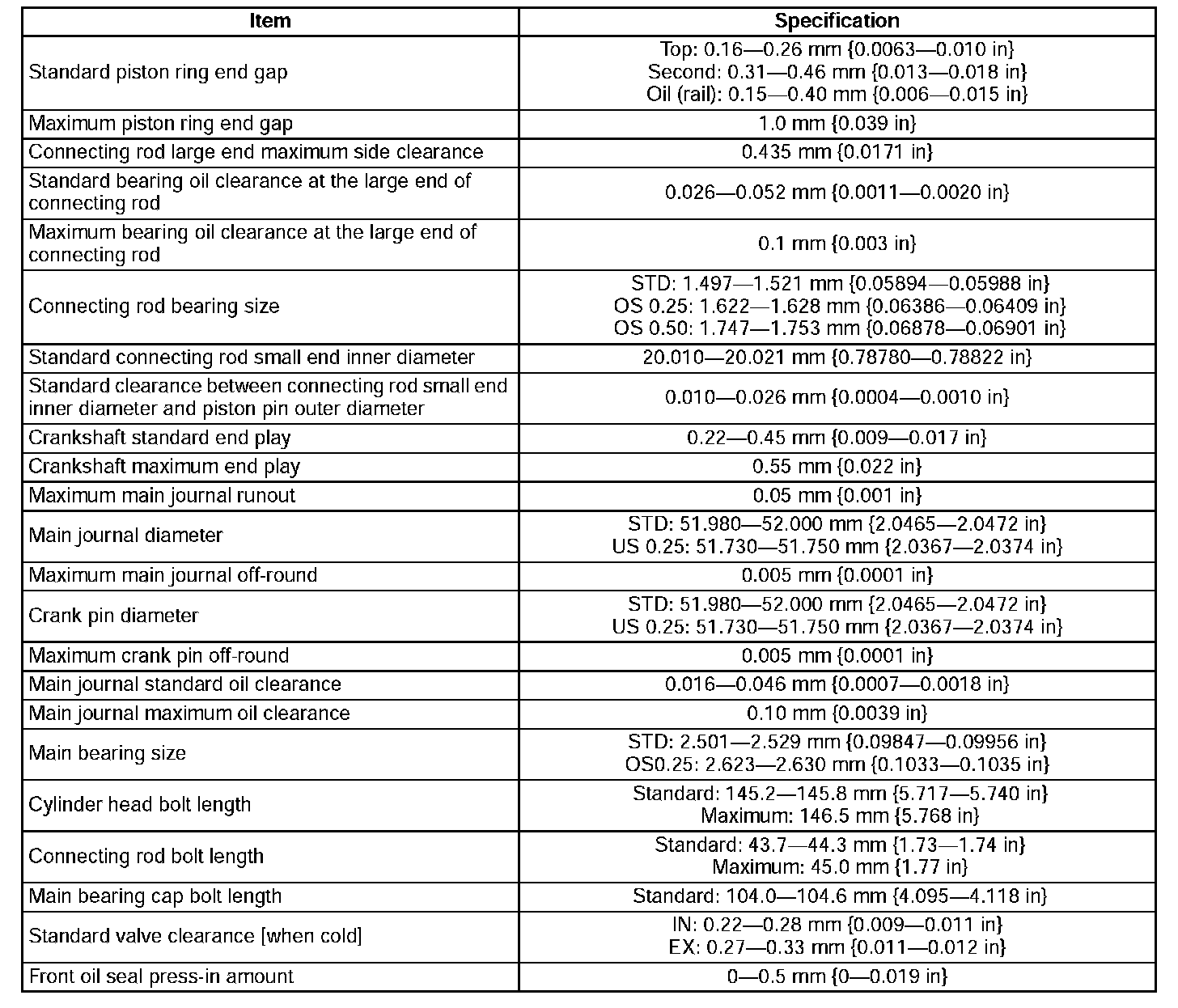

Engine Technical Data (Part 1):

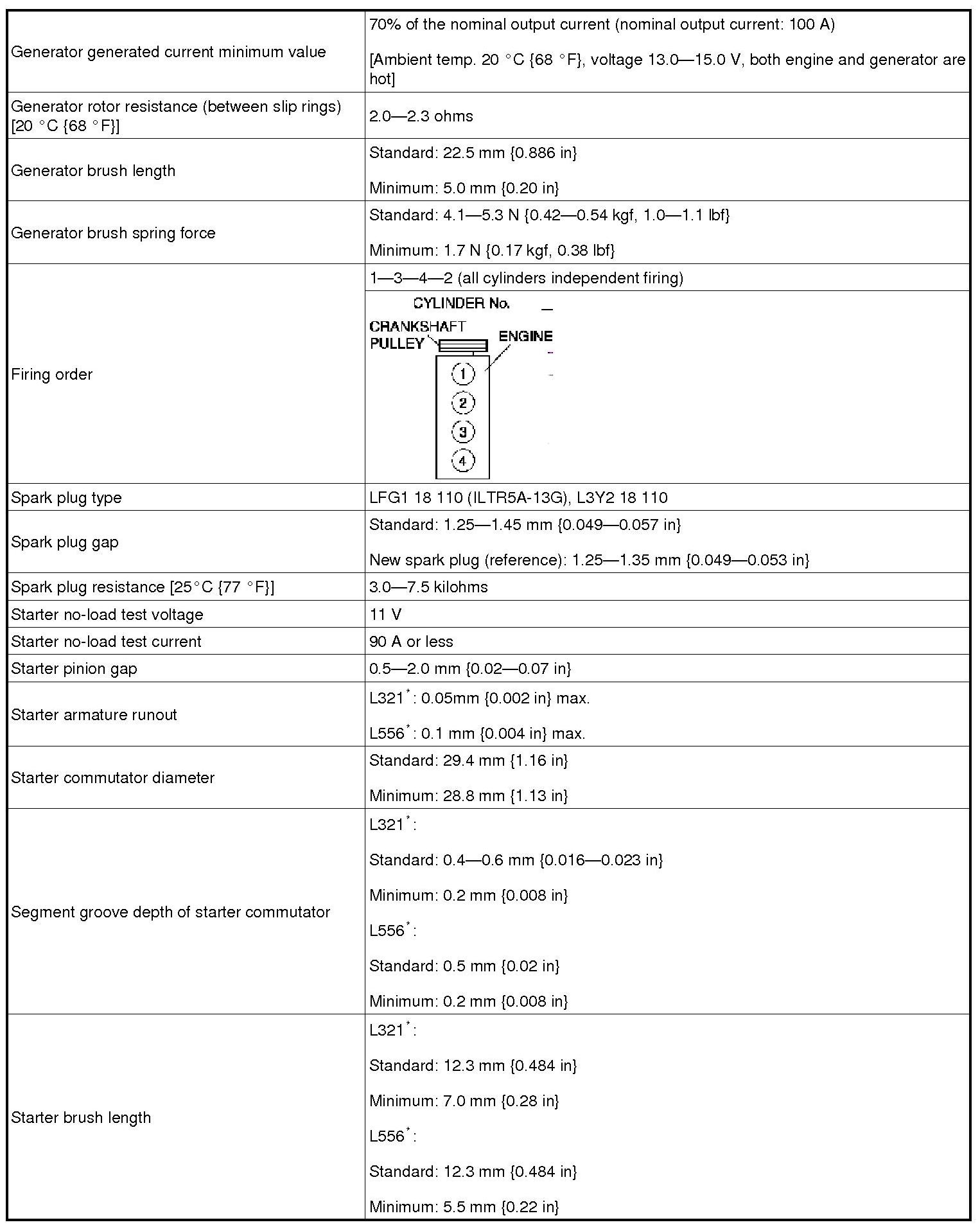

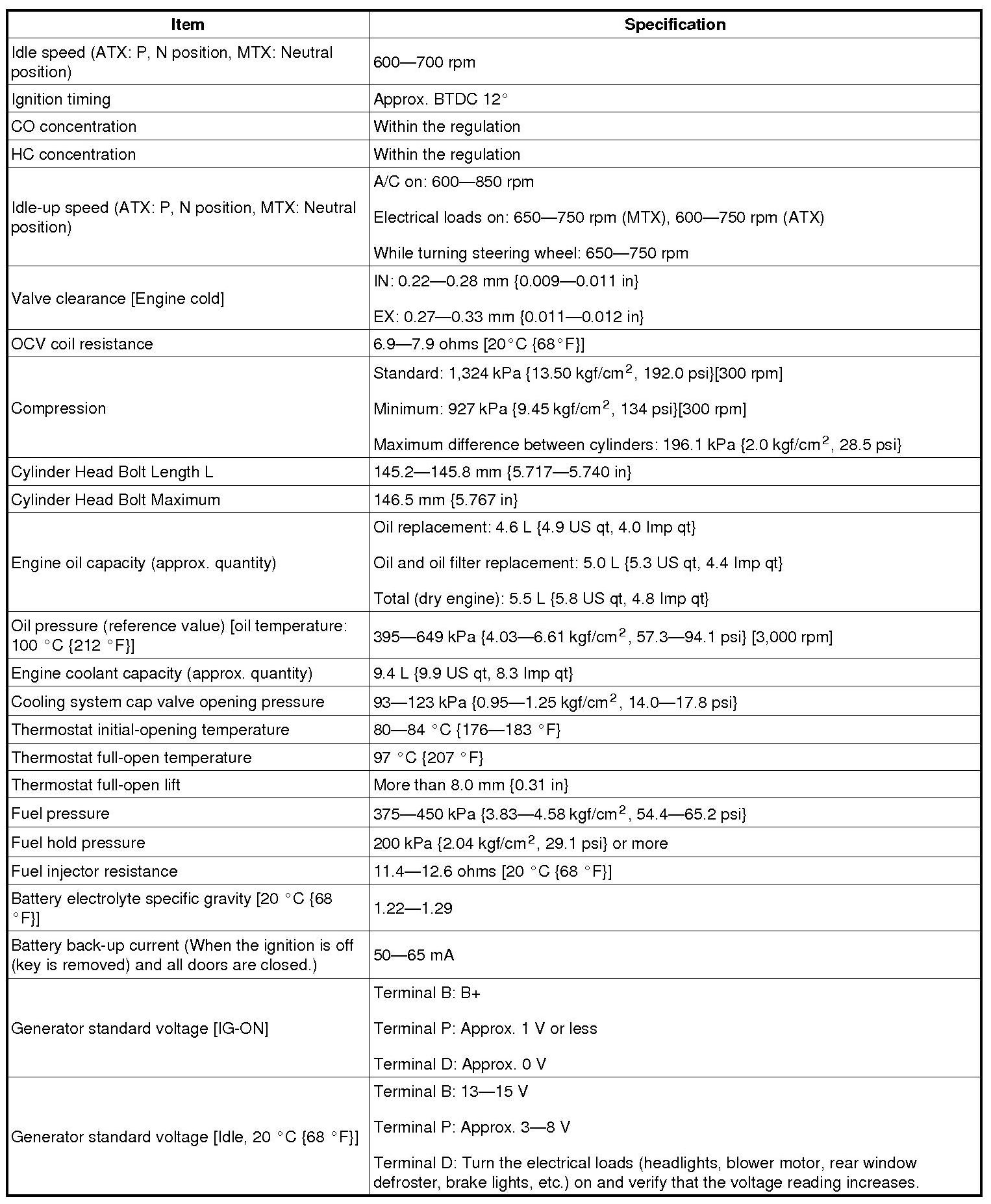

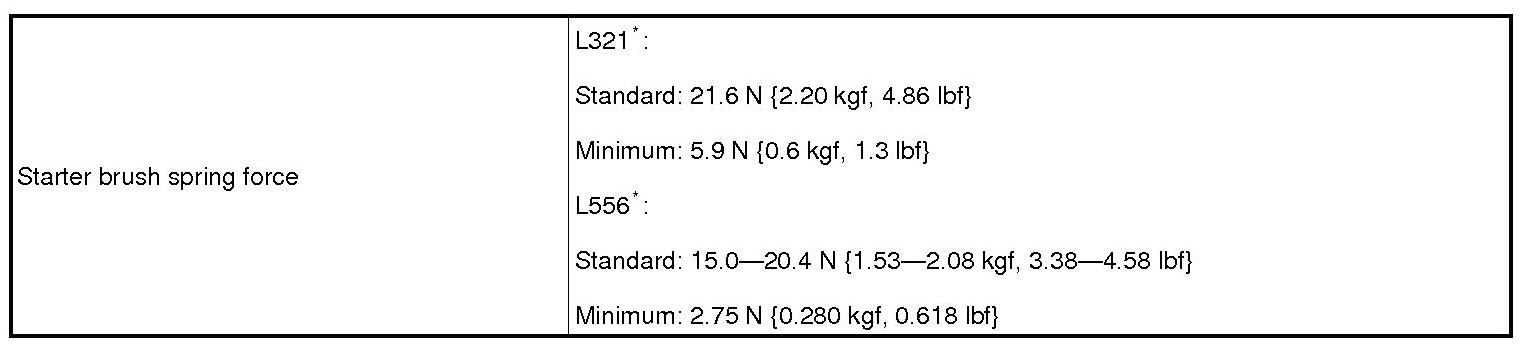

Engine Technical Data (Part 2):








ENGINE TECHNICAL DATA [L5]













*

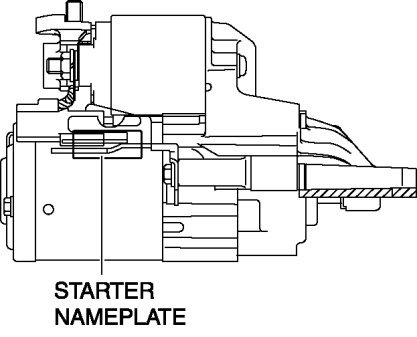

The first four digits of the part number indicated on the starter nameplate

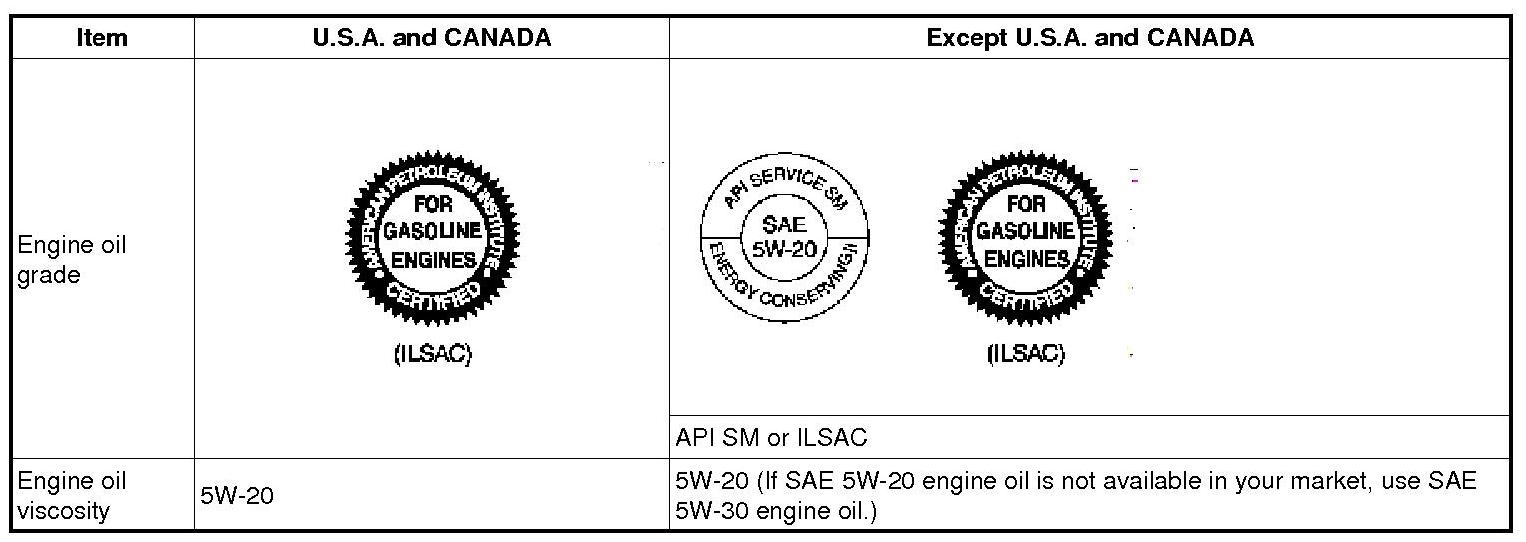

Engine oil specification
