Lighting Systems

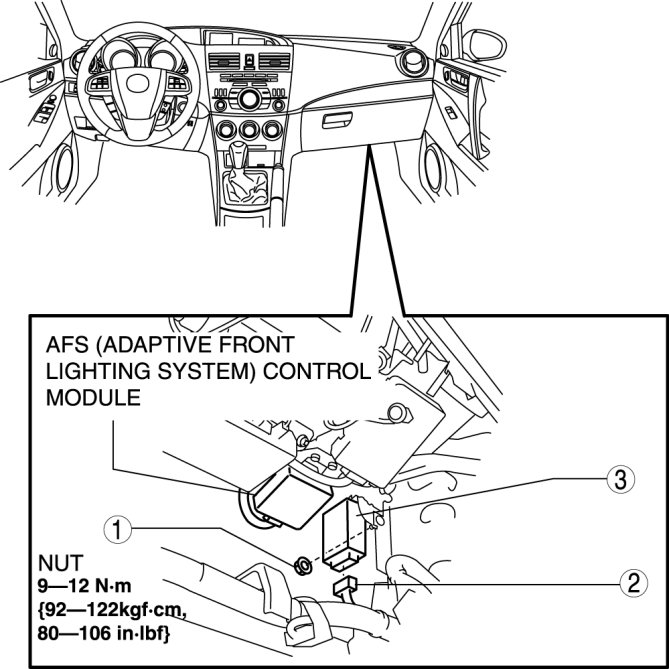

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Grove compartment Service and Repair

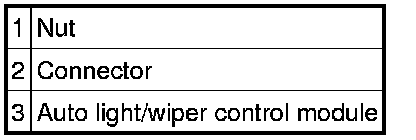

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
