No. 5 Push Button Start System Does Not Turn Off (IG Off) - Advanced Keyless Entry And Push Button Start System

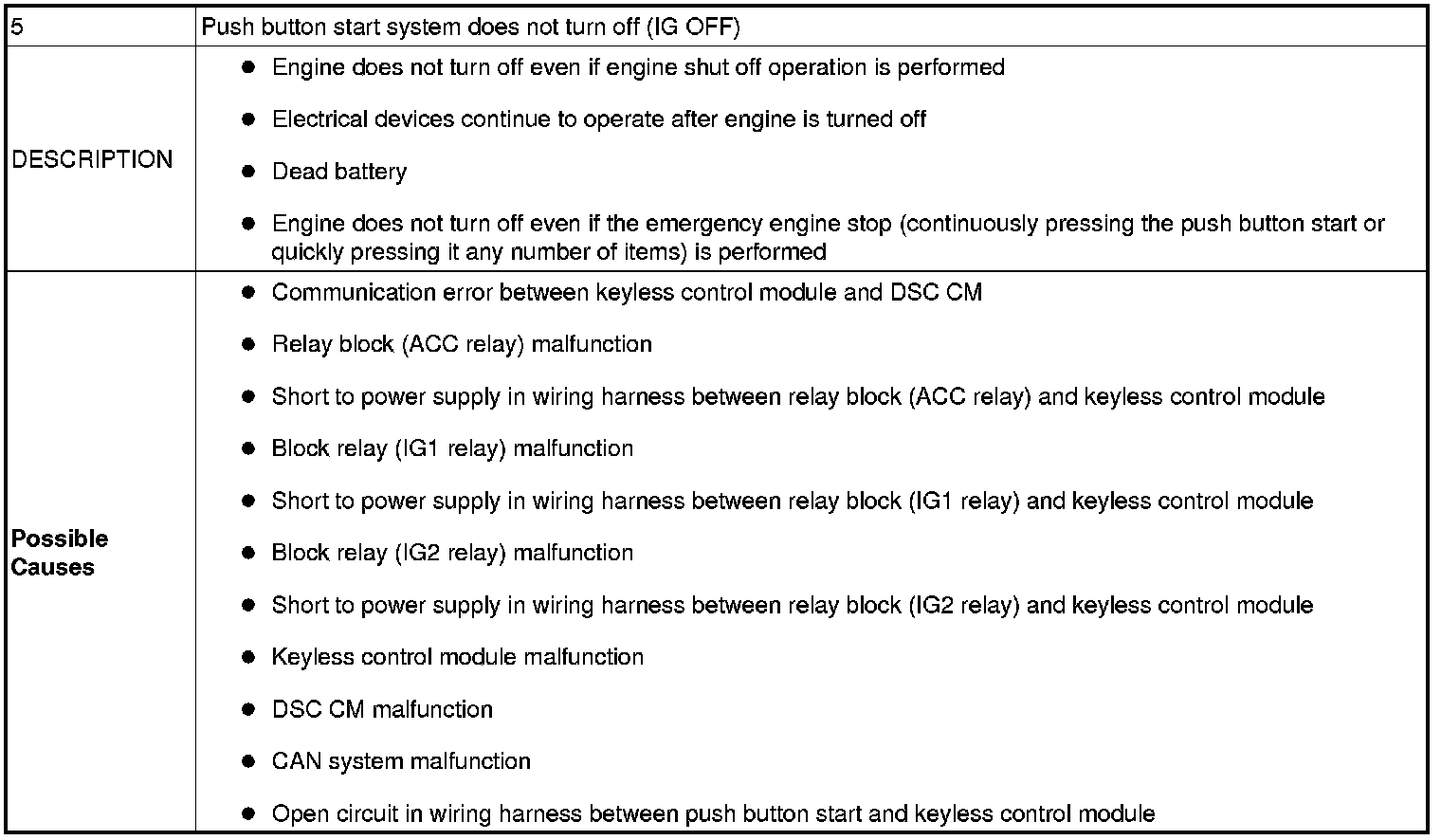

NO.5 PUSH BUTTON START SYSTEM DOES NOT TURN OFF (IG OFF) [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

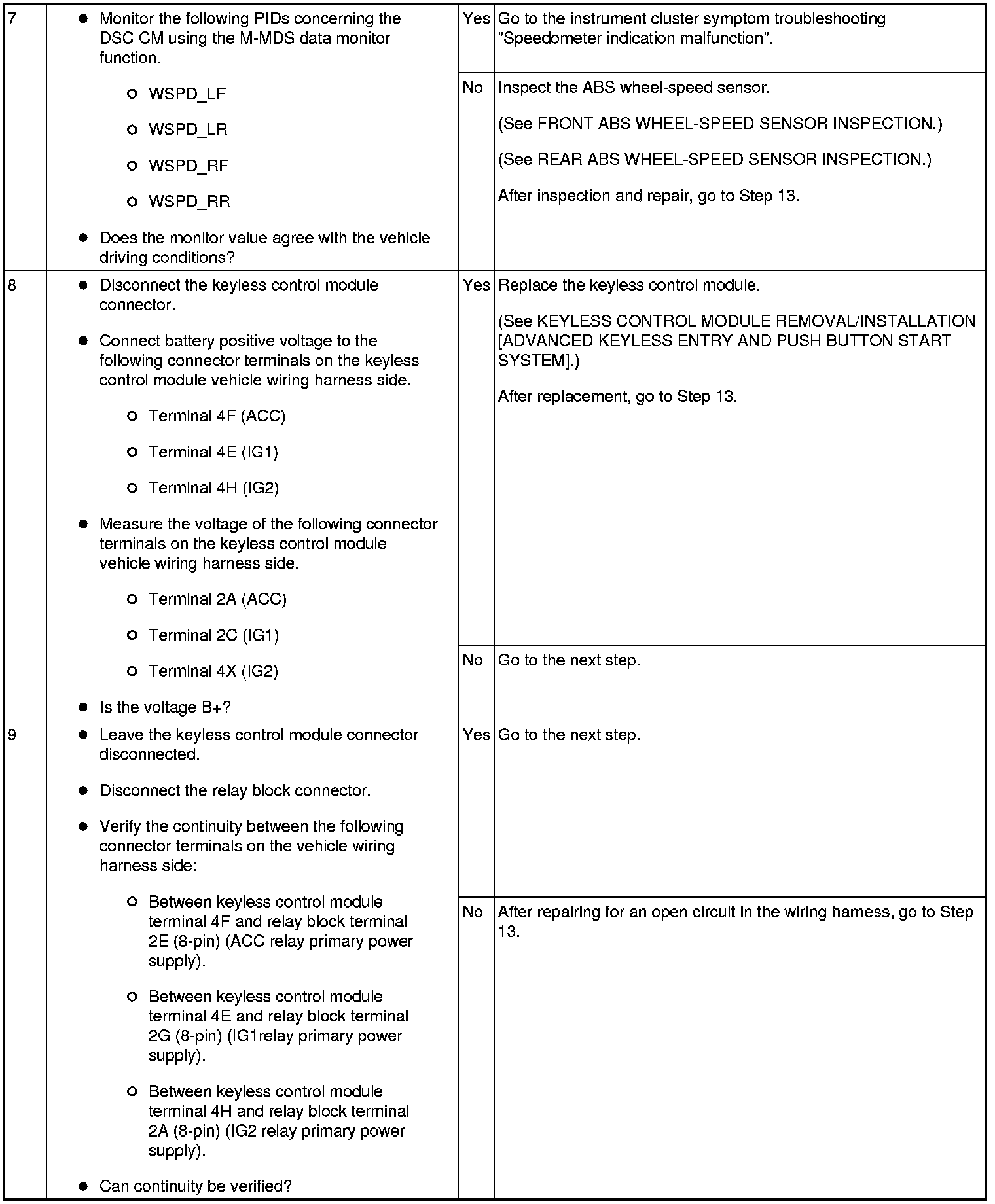

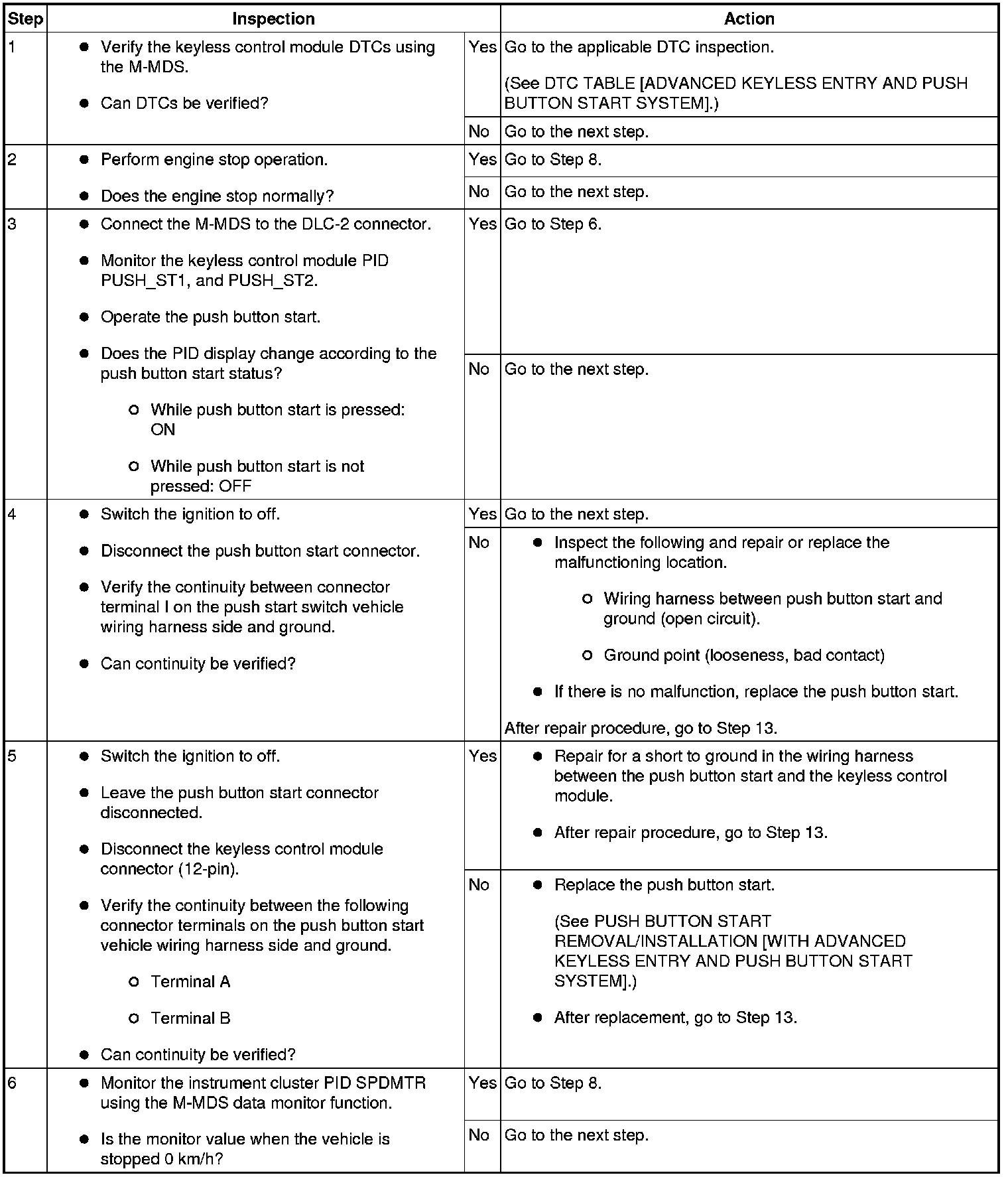

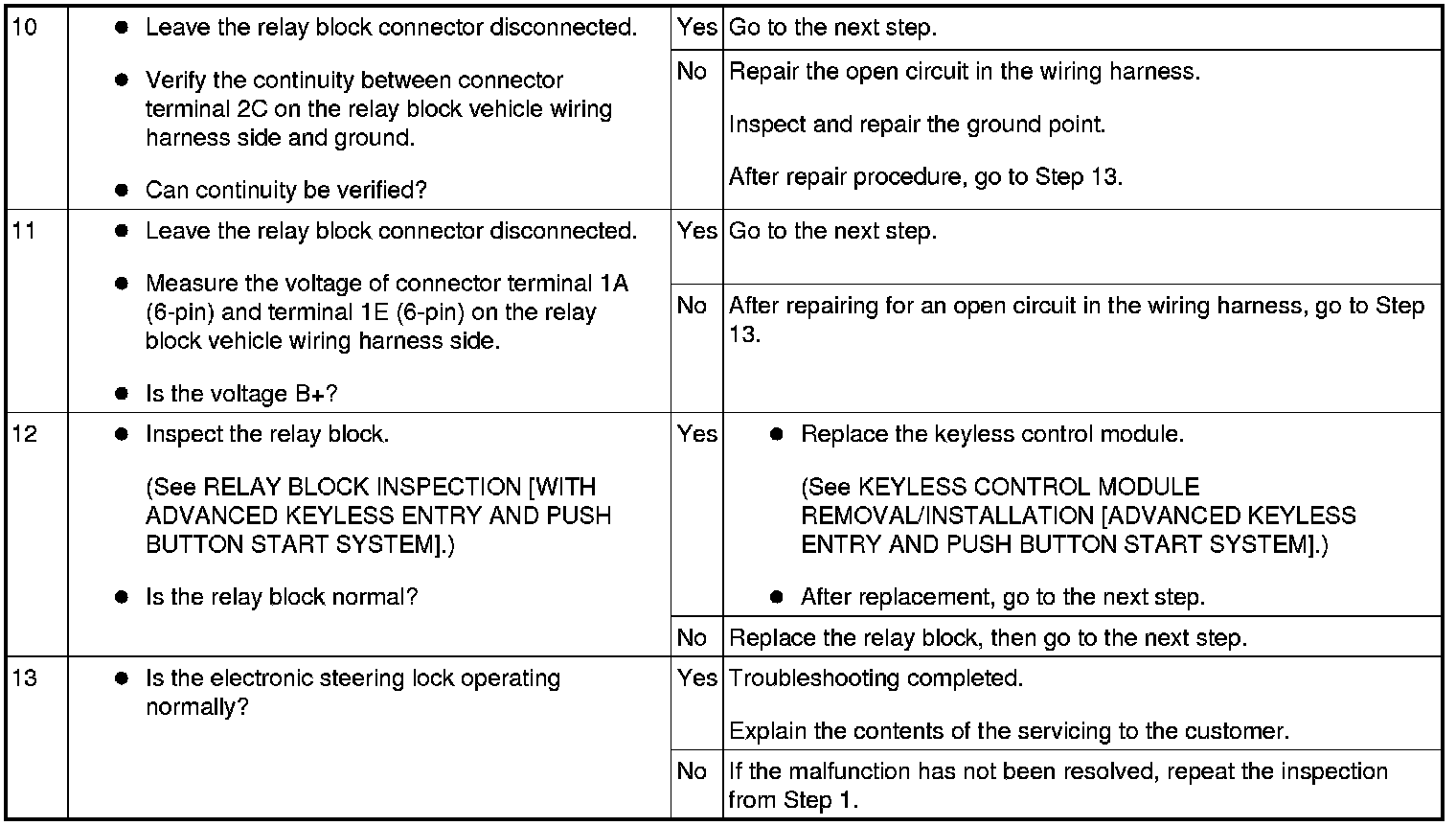

Diagnostic Procedure
