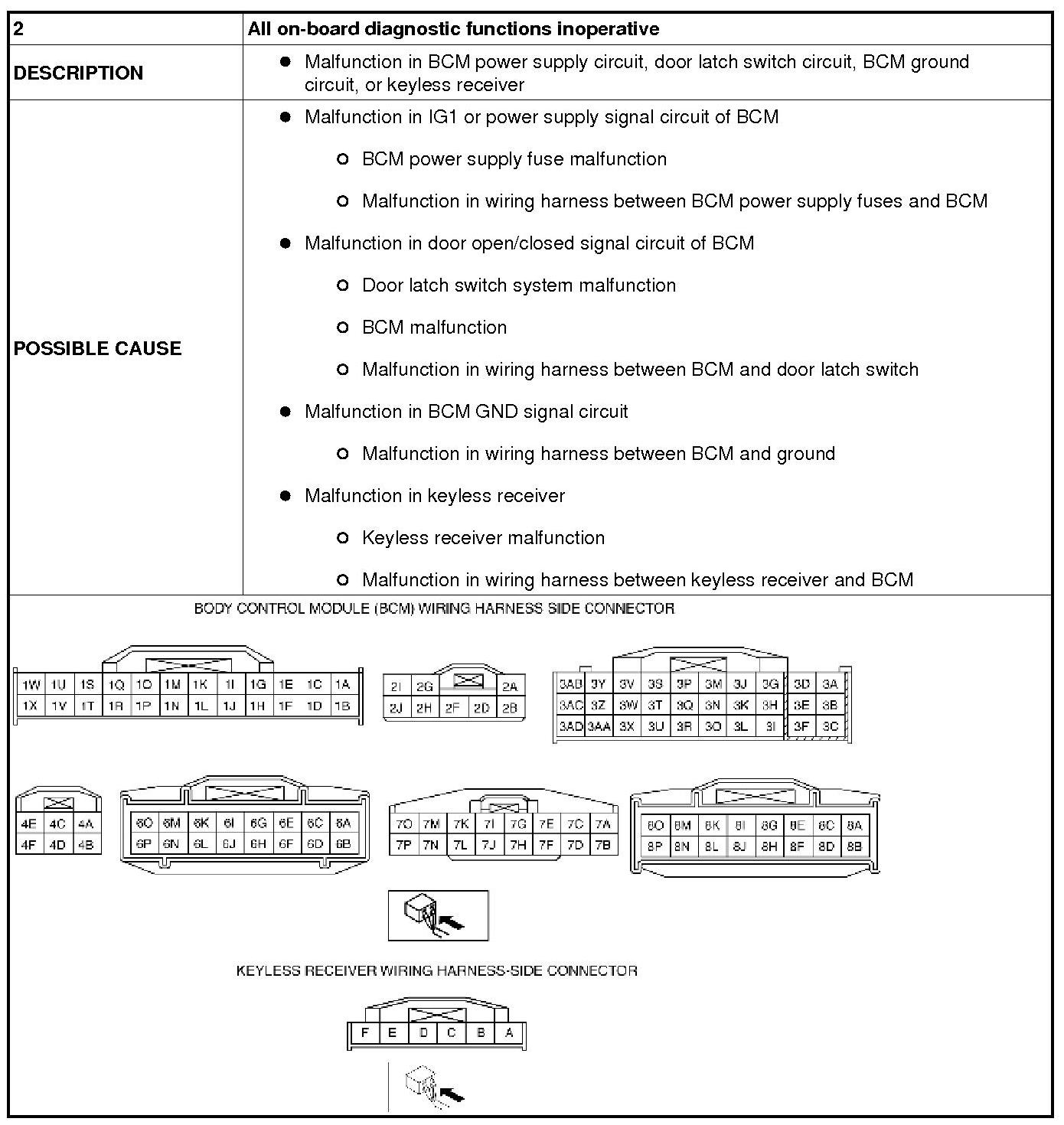

No. 2 All Keyless Entry System Functions Inoperative - Keyless Entry System

NO.2 ALL KEYLESS ENTRY SYSTEM FUNCTIONS INOPERATIVE [KEYLESS ENTRY SYSTEM]

- When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged.

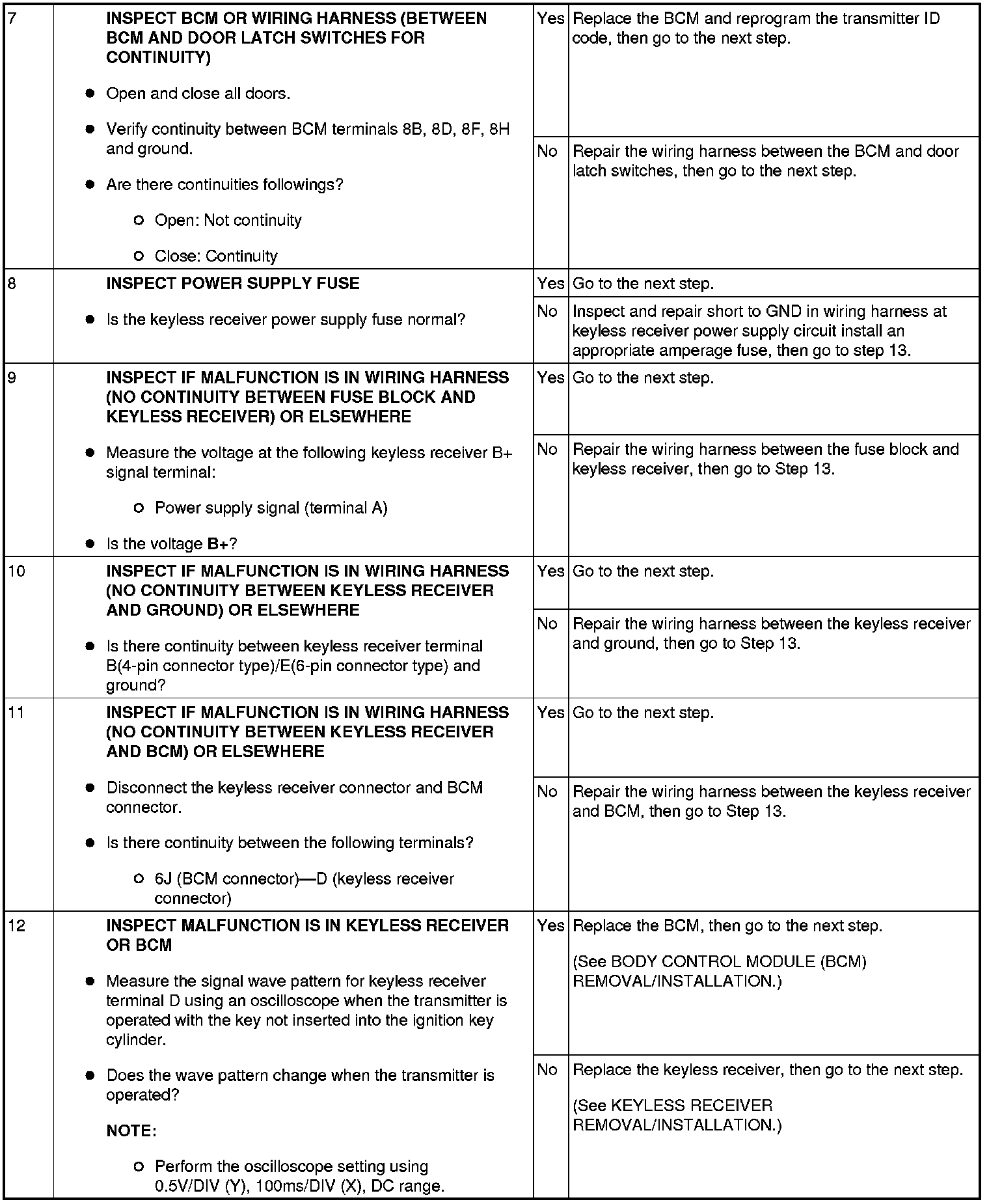

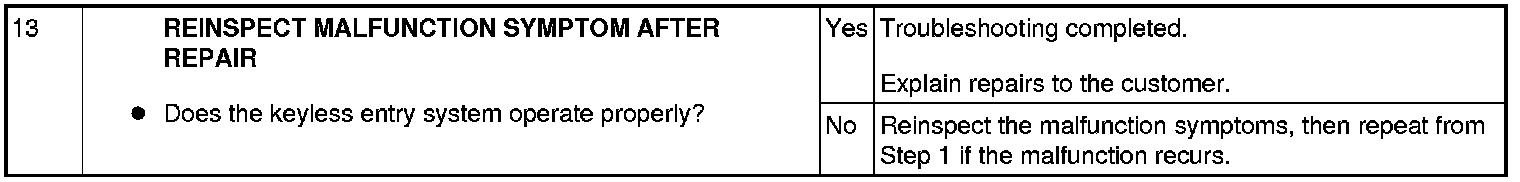

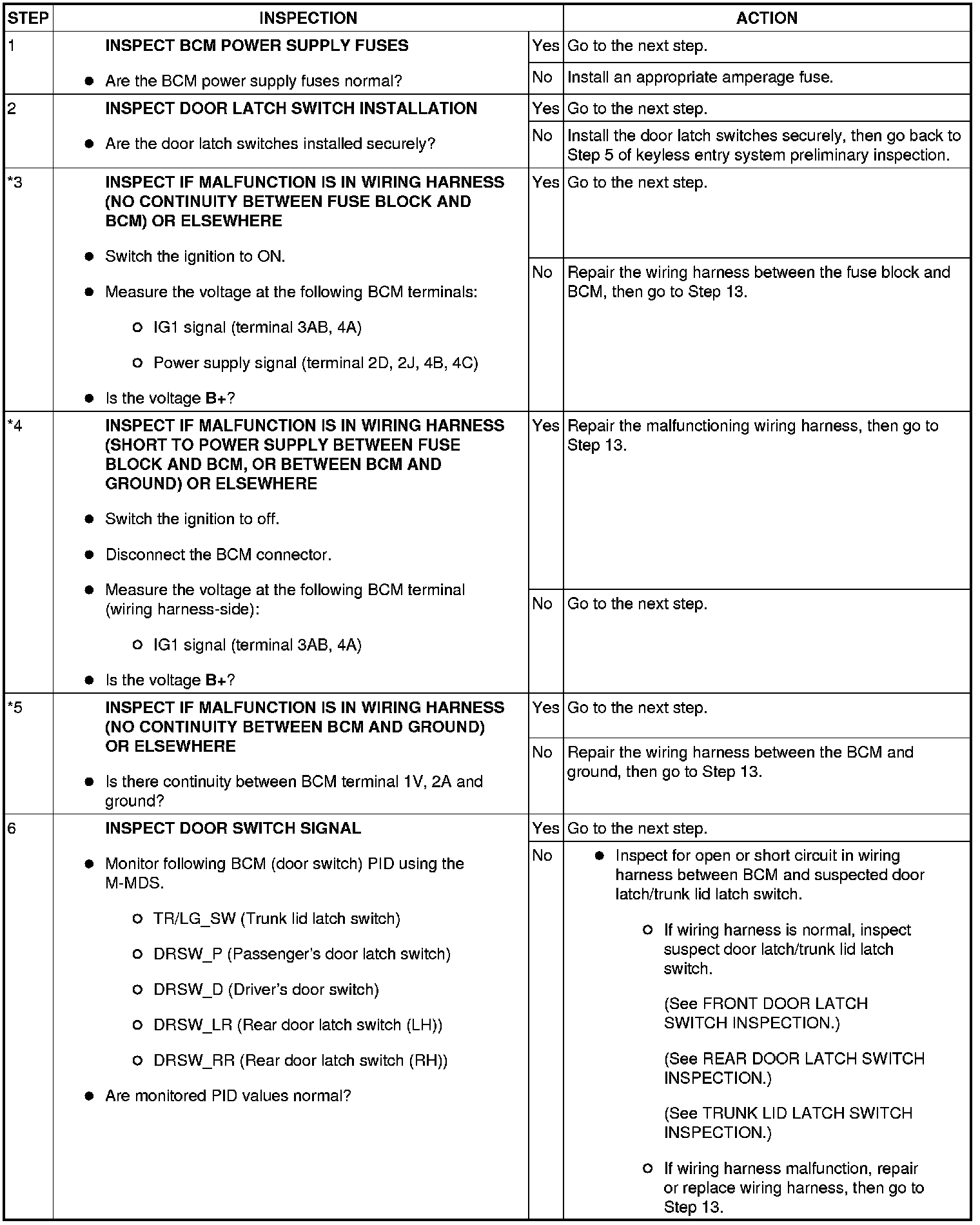

Diagnostic procedure
