Memory Positioning Switch: Service and Repair

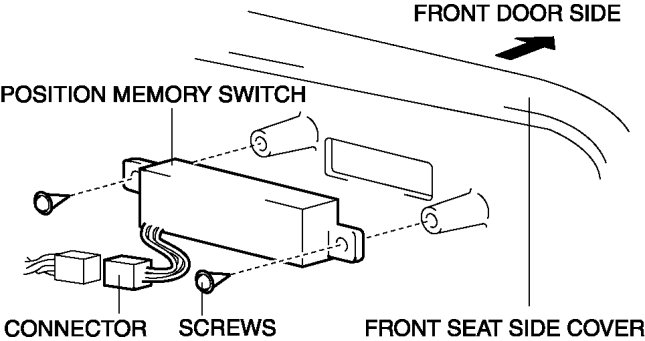

POSITION MEMORY SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front seat side cover. Front Seat Side Cover Removal/Installation

3. Remove the screws, then remove the position memory switch.






4. Disconnect the position memory switch connector.

5. Install in the reverse order of removal.
