Engine Harness-Engine No.2 Harness
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

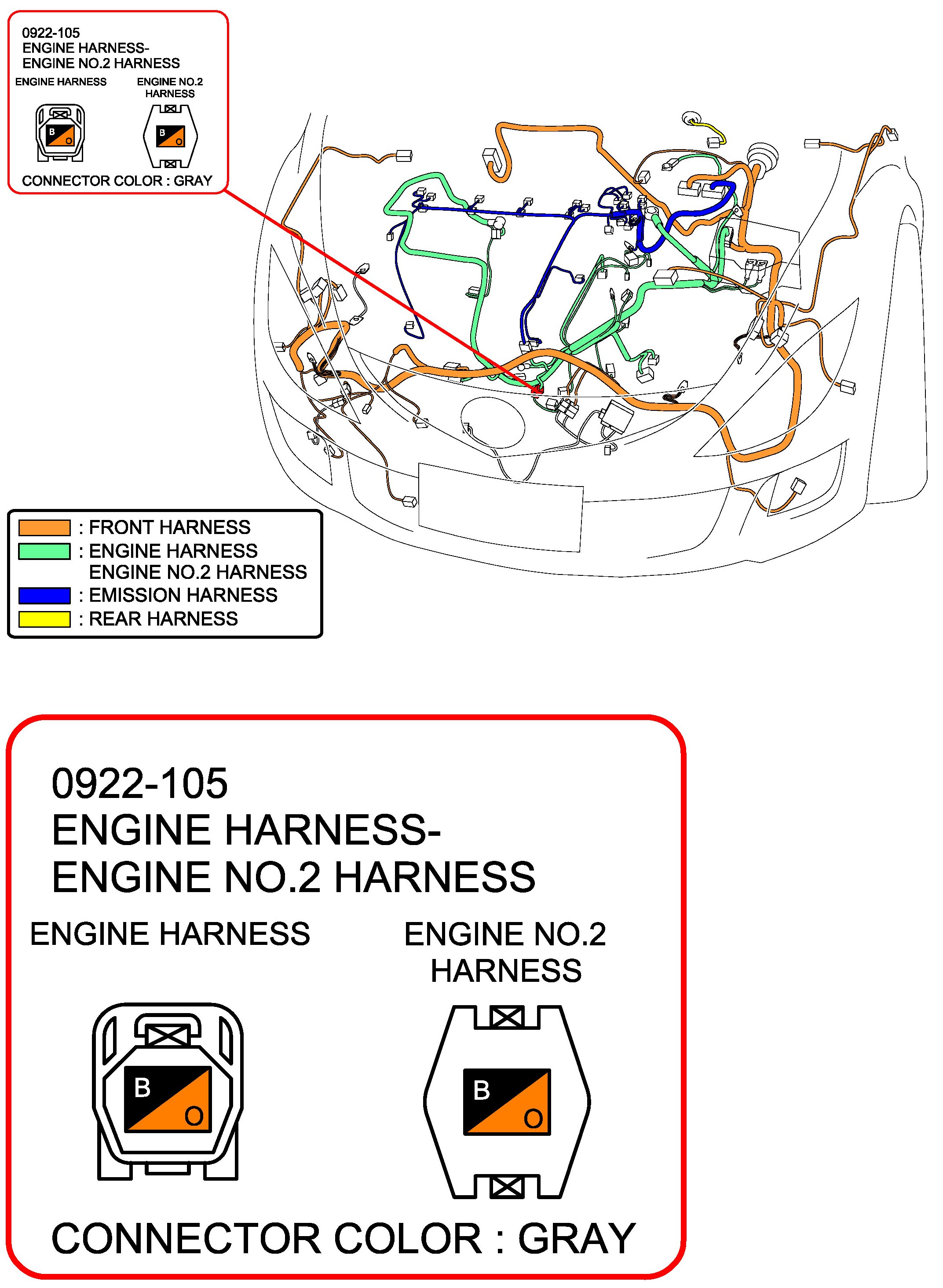

Engine Harness-Engine No.2 Harness
