Climate Control Unit Removal/Installation - Manual Air Conditioner

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift lever knob (MTX) Locations

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

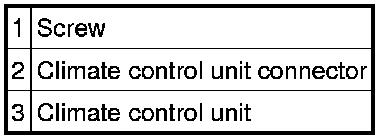

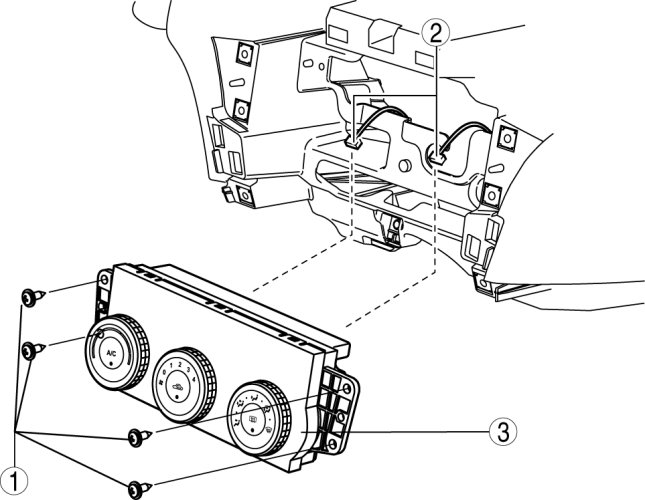

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
