Mode 6 Data

ON-BOARD DIAGNOSTIC TEST [MZR 2.5]

Diagnostic Monitoring Test Results Access Procedure

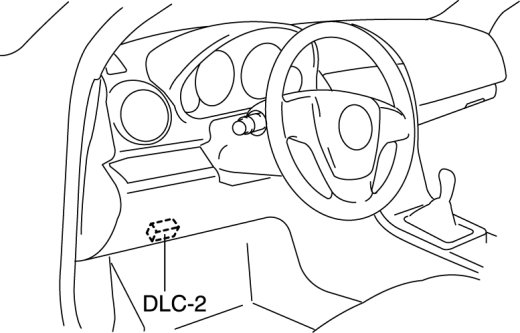

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.
a. Select "Powertrain".

b. Select "OBD Test Modes".

c. Select "Mode 6 On-Board Test Results".

3. Verify the diagnostic monitoring test result according to the directions on the IDS screen.
