Radiator Cooling Fan Control Module: Testing and Inspection

FAN CONTROL MODULE INSPECTION [MZR 2.5]

1. Connect the M-MDS to the DLC-2.

2. Start and warm up the engine.

3. Monitor the engine coolant temperature with the M-MDS.

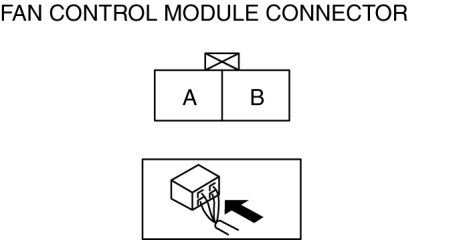

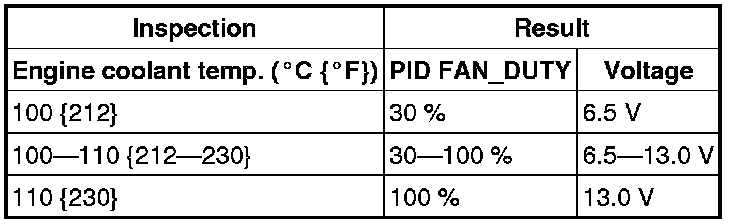

4. Measure the voltage at terminal A of the fan control module connector (2 terminals) as shown in the table.






- If not within the specification, inspect the input signals from the following parts.

- Engine Coolant Temperature (ECT) sensor

Fan control module [A/C OFF]





5. If all the above parts are normal, replace the fan control module.
