Control System Personalization Features Setting Procedure

CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

- Select the "Module Programming".
- Select menu in the "BCM/GEM".

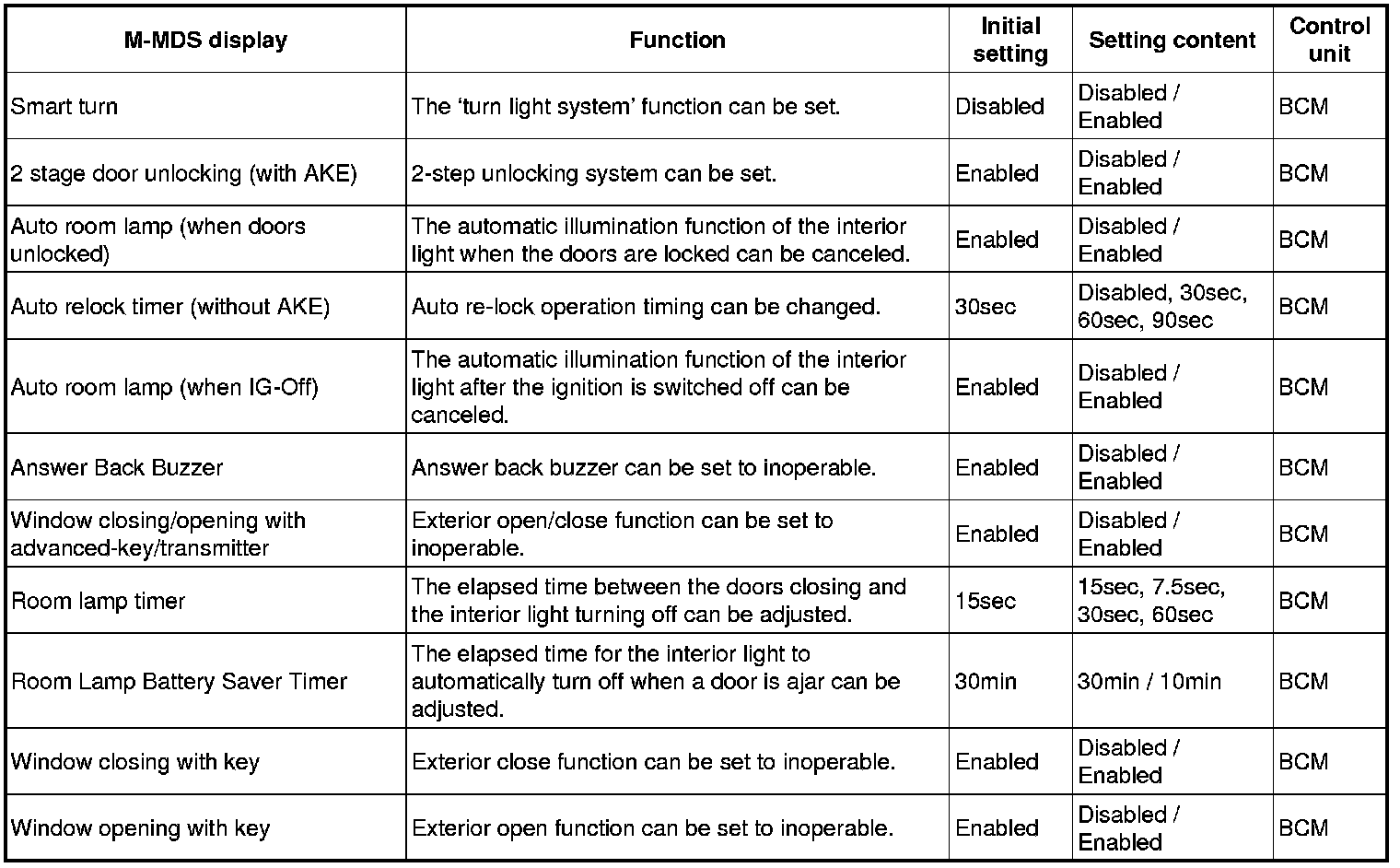

3. Select an item name, and then select option.
