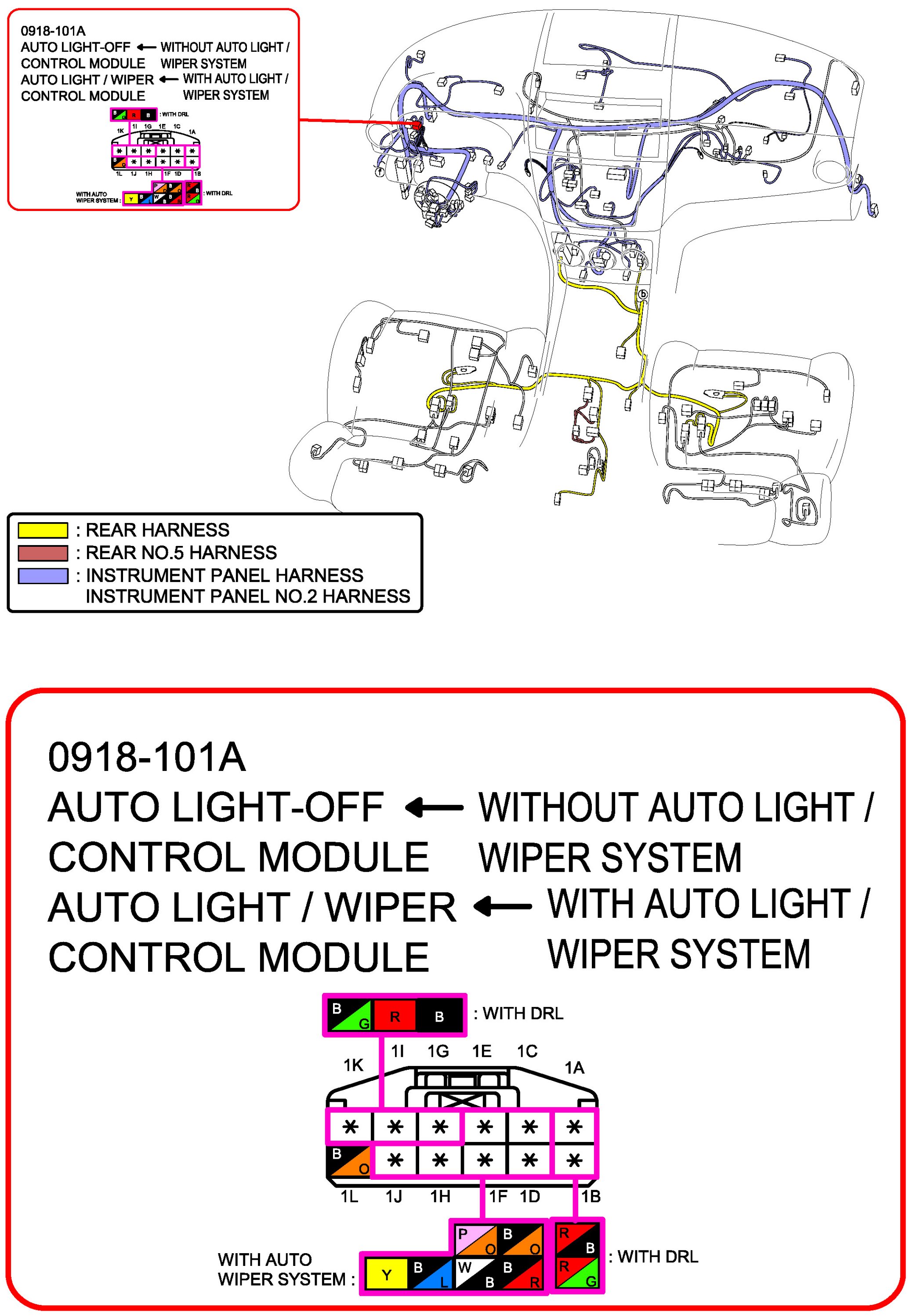

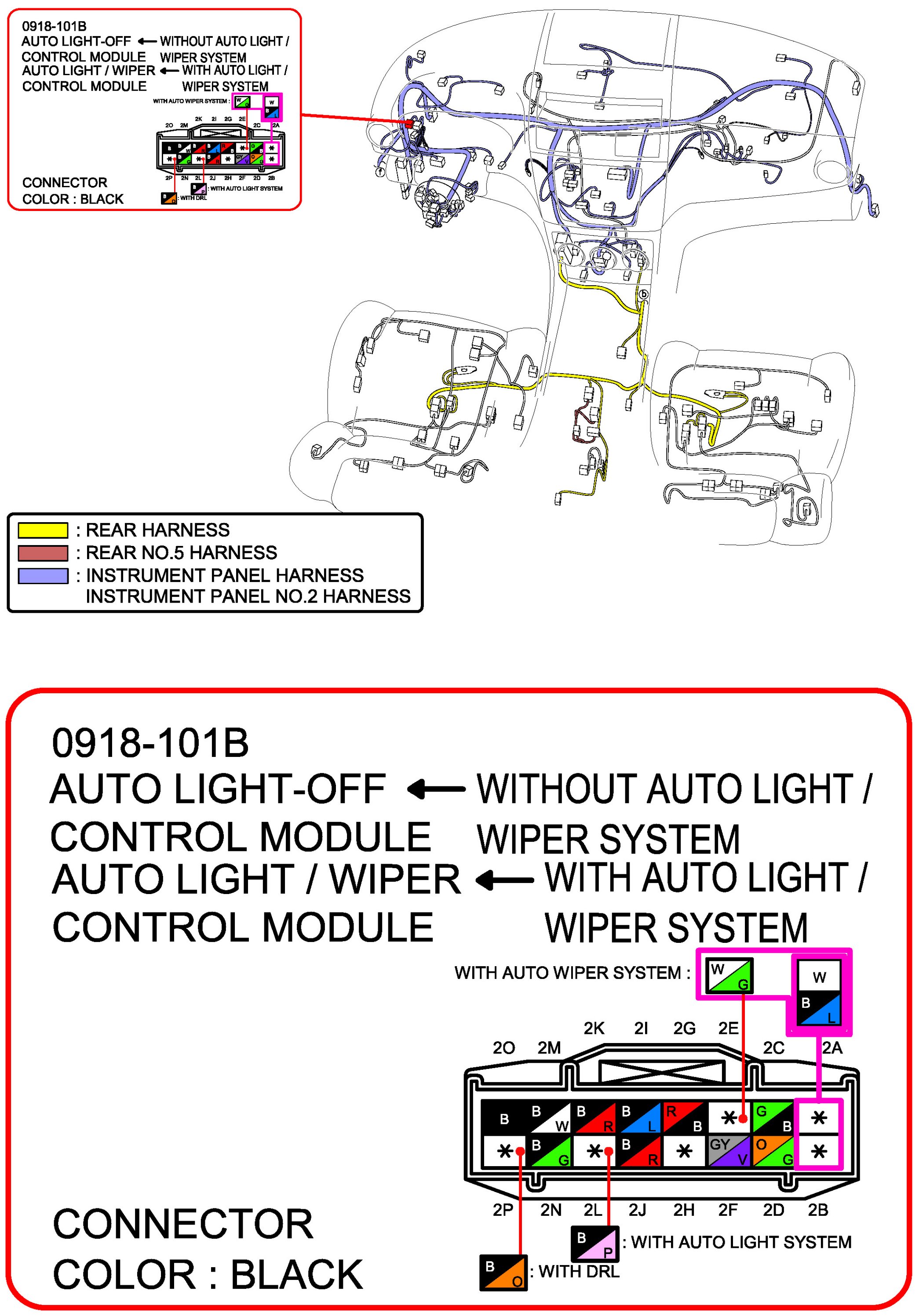

Auto Light-off Control Module - Without Auto Light/Wiper System, Auto Light/Wiper Control Module - With Auto Light/Wiper System

Auto Light-off Control Module <- Without Auto Light/Wiper System, Auto Light/Wiper Control Module <- With Auto Light/Wiper System
