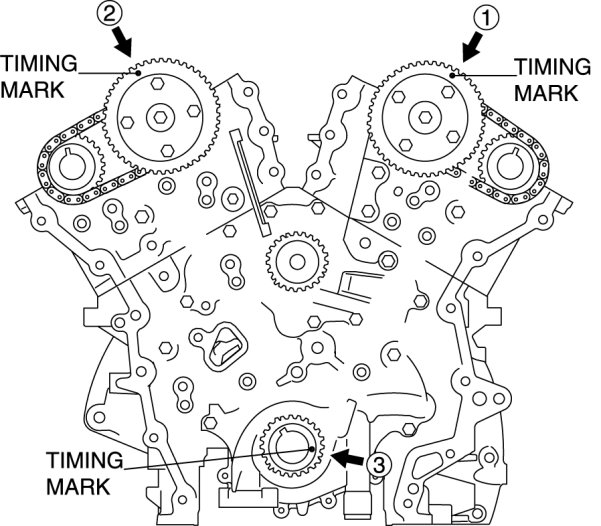

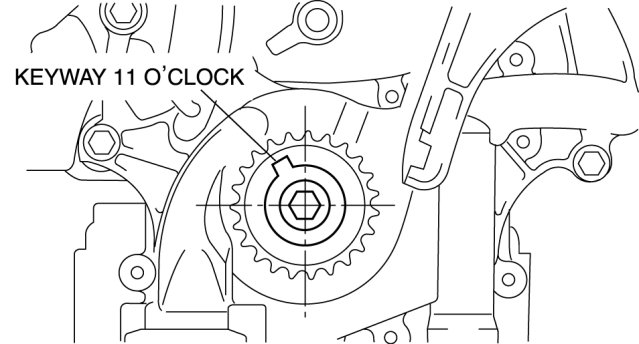

Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

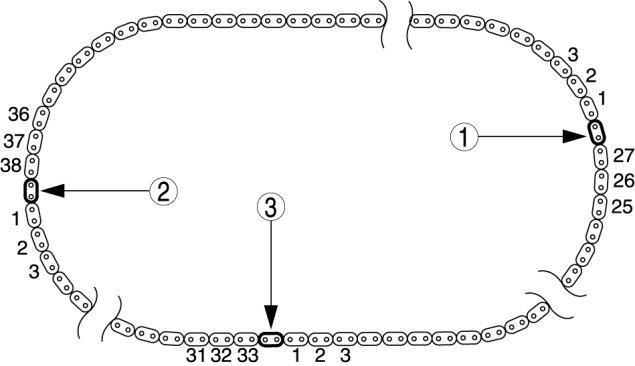

The number of external links
- No.1-2 : 38
- No.2-3 : 33
- No.3-1 : 27

NOTE:
- The marked external links are not included in the count.

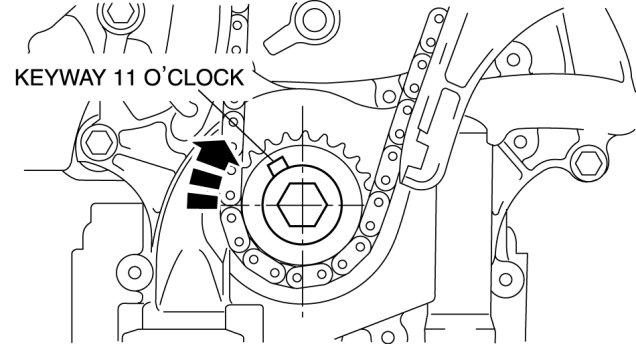

- When marking the crankshaft sprocket side timing chain (No.3), change the mark color.

NOTE:
- Of the three marked locations on the timing chain, align the mark that has a different color to the crankshaft sprocket side timing mark.
