Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZI 3.7 V6]

NOTE:
- The MAF sensor and IAT sensor cannot be removed as a single unit. When replacing the MAF sensor or IAT sensor, replace it together with the MAF/IAT sensor as a single unit.

1. Disconnect the negative battery cable. Removal and Replacement

2. Disconnect MAF/IAT sensor connector.

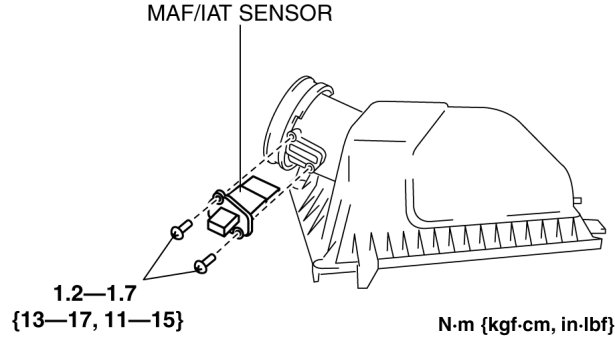

3. Remove the MAF/IAT sensor.






4. Install in the reverse order of removal.
