Engine Temperature Sensor: Testing and Inspection

CYLINDER HEAD TEMPERATURE (CHT) SENSOR INSPECTION [MZI 3.7 V6]

NOTE:
- Do not reuse the CHT sensor, install a new sensor.

1. Disconnect the negative battery cable. Removal and Replacement

2. Disconnect the CHT sensor connector.

3. Measure the resistance between CHT sensor terminals A and B.






- If it is not within the specification, replace the CHT sensor. Service and Repair

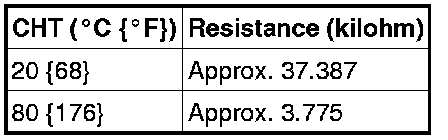

CHT sensor resistance

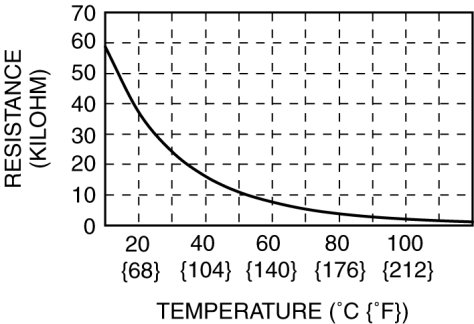

CHT sensor characteristics graph (reference)
