Cylinder Head Assembly

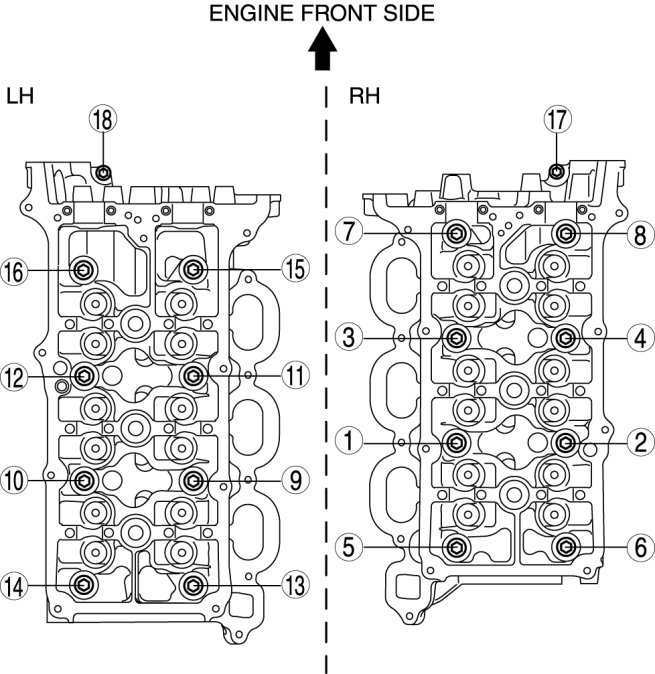

CYLINDER HEADTighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.

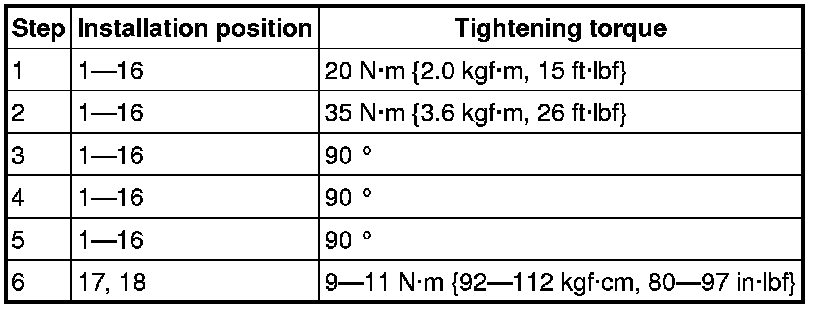

Tightening torque
BOLT RE-USABILITY
NOTE: The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.
CAMSHAFT CAP

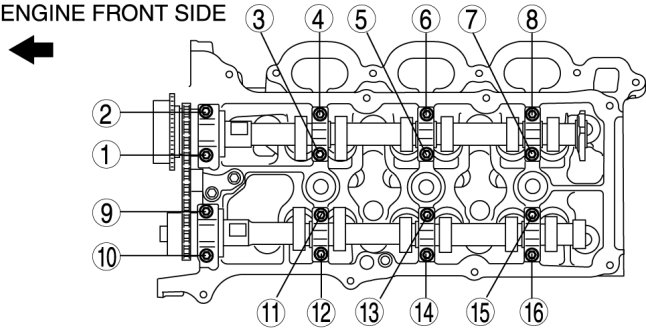

RH bank camshaft caps and temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.
Tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}

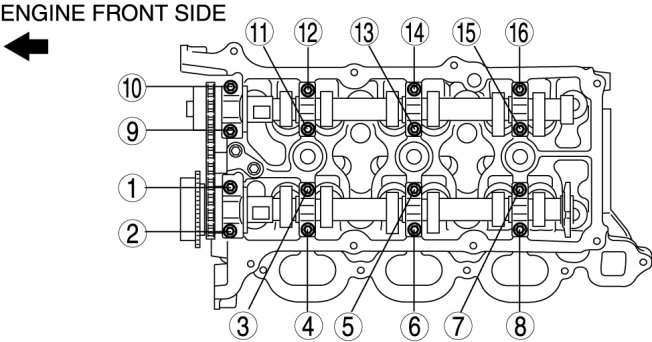

LH bank camshaft caps and temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.
Tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
