Power Window System Wiring Diagram




POWER WINDOW SYSTEM WIRING DIAGRAM [POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

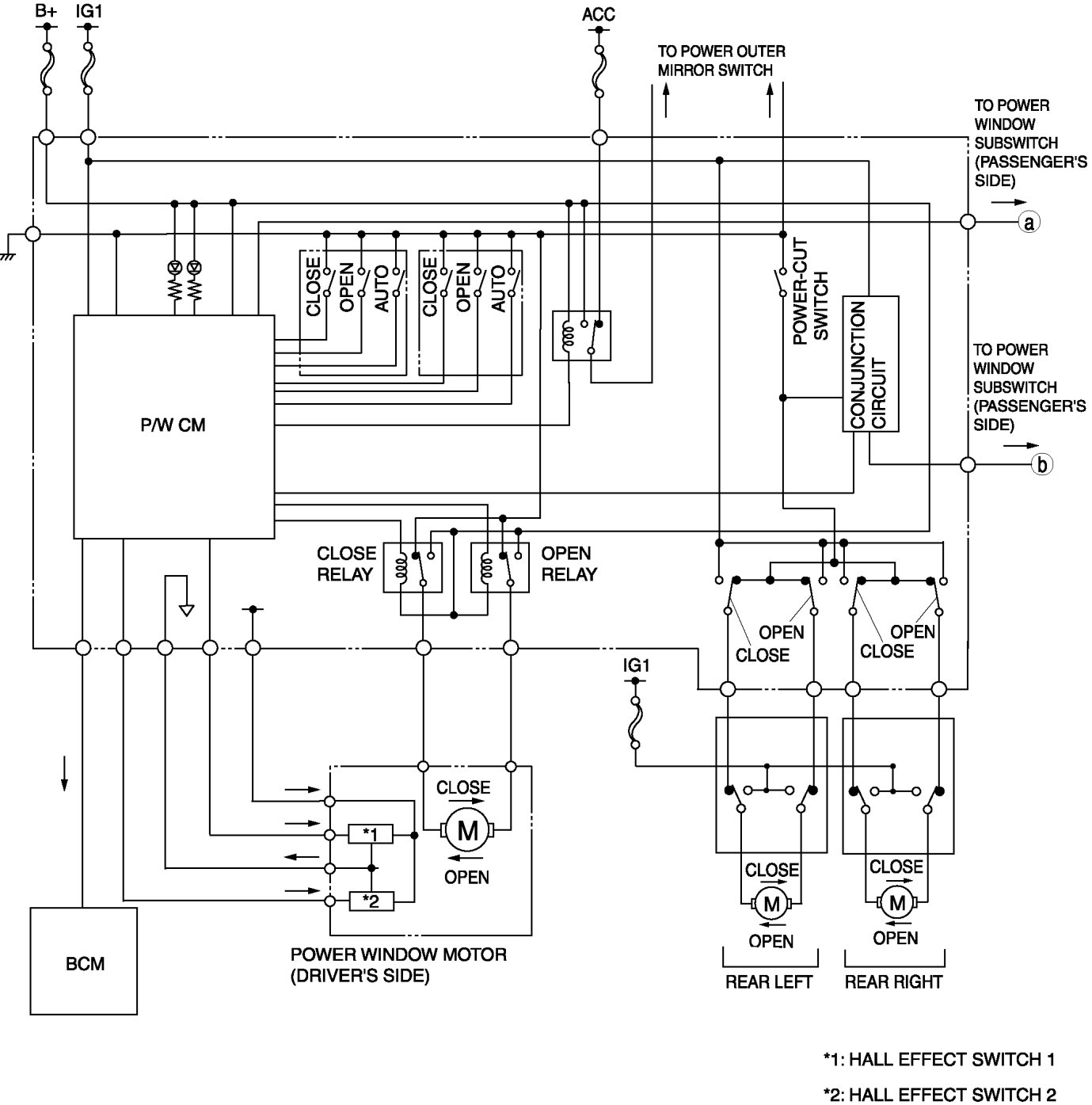

Power Window Main Switch

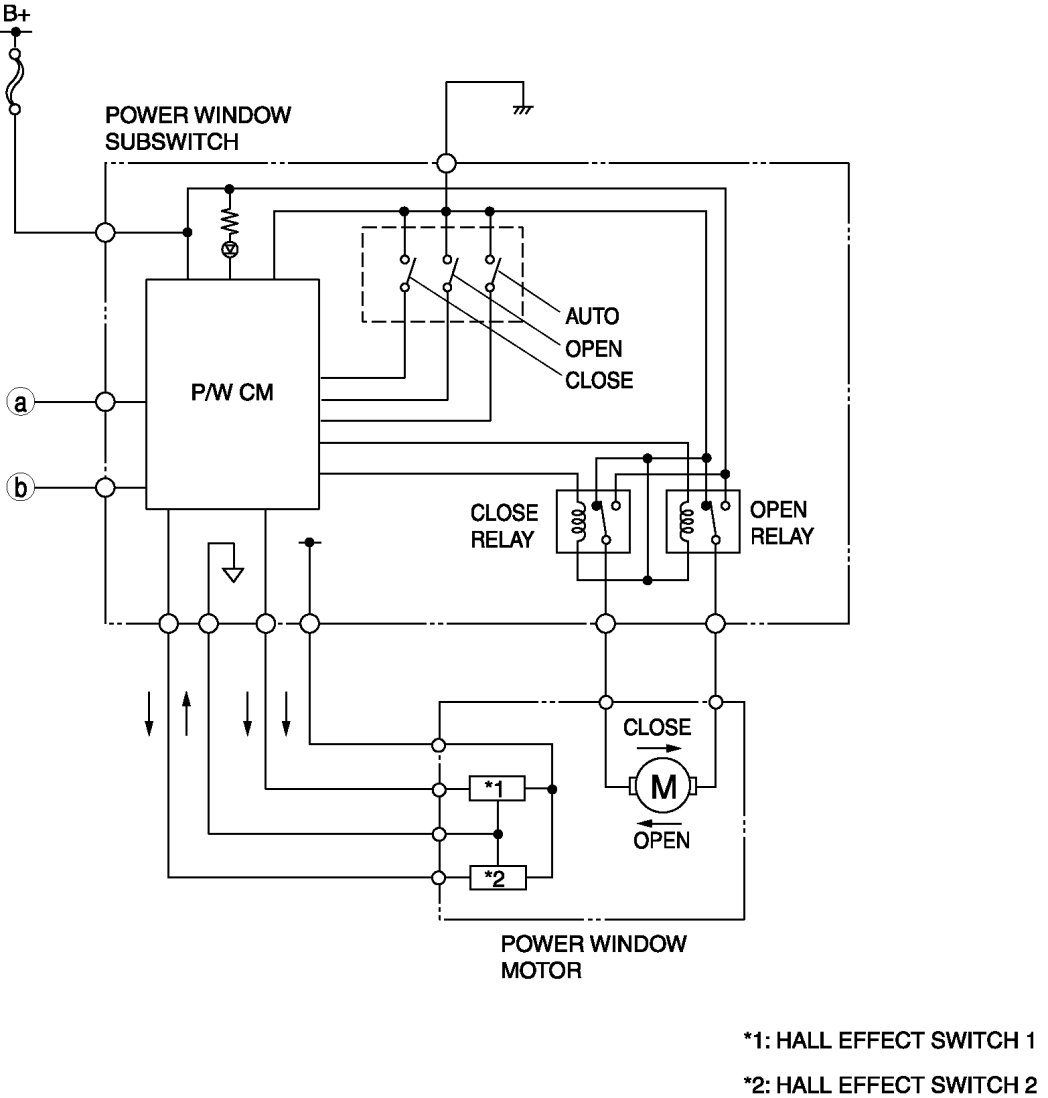

Power Window Subswitch
