Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.
  2. Affix protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.
  4. Adhere protective tape to the installation area of the DSC HU/CM brake pipe to prevent foreign material penetration.

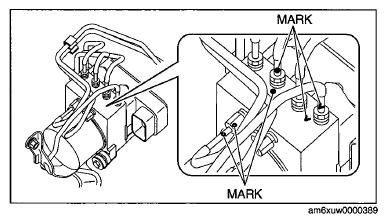

Fig 1: Alignment Mark On Brake Pipe And DSC HU/CM
G07621173Courtesy of MAZDA MOTORS CORP.
