Crankshaft Position (CKP) Sensor Removal/Installation: Installation

CAUTION:

• When foreign material such as an iron chip is on the CKP sensor, it can cause abnormal output from the sensor because of flux turbulence and adversely affect the engine control. Be sure there is no foreign material on the CKP sensor when replacing.
• Do not assemble the crankshaft position sensor or change the installation position using any method other than the following. Otherwise, it could negatively affect engine controls, such as the ignition timing and fuel injection.

1. Perform the following procedure so that cylinder No. 1 is at TDC.
   1. Remove the wheel and tire (front right side).
   2. Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION .)
   3. Remove the cylinder block lower blind plug and install the SST  .
   4. Rotate the crankshaft pulley clockwise until the crank weight contacts the SST so that cylinder No. 1 is at TDC.

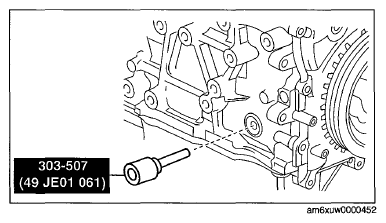

   Fig 1: SST (303-507)

   Courtesy of MAZDA MOTORS CORP.
2. Fit the center of the CKP sensor with the fifth tooth (counting counterclockwise from the empty space A as shown in the illustration) of the pulse wheel.
3. Align the center line of the CKP sensor and the line drawn in Step 2, then install the sensor.

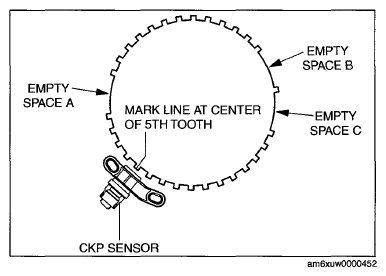

   Fig 2: CKP Sensor Position On Pulse Wheel

   Courtesy of MAZDA MOTORS CORP.
4. install the CKP sensor fitting bolts.

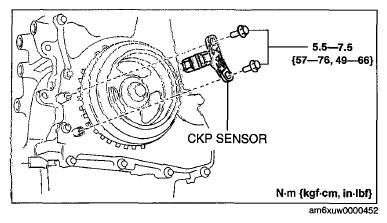

   Fig 3: CKP Sensor Fitting Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
5. Remove the SST  then install the cylinder block lower blind plug.
6. Install the drive shaft (RH). (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION .)

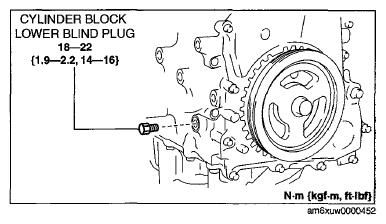

Fig 4: Cylinder Block Lower Blind Plug With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
